Specifications
Overview & Platform
-
Brand : Gigabyte
-

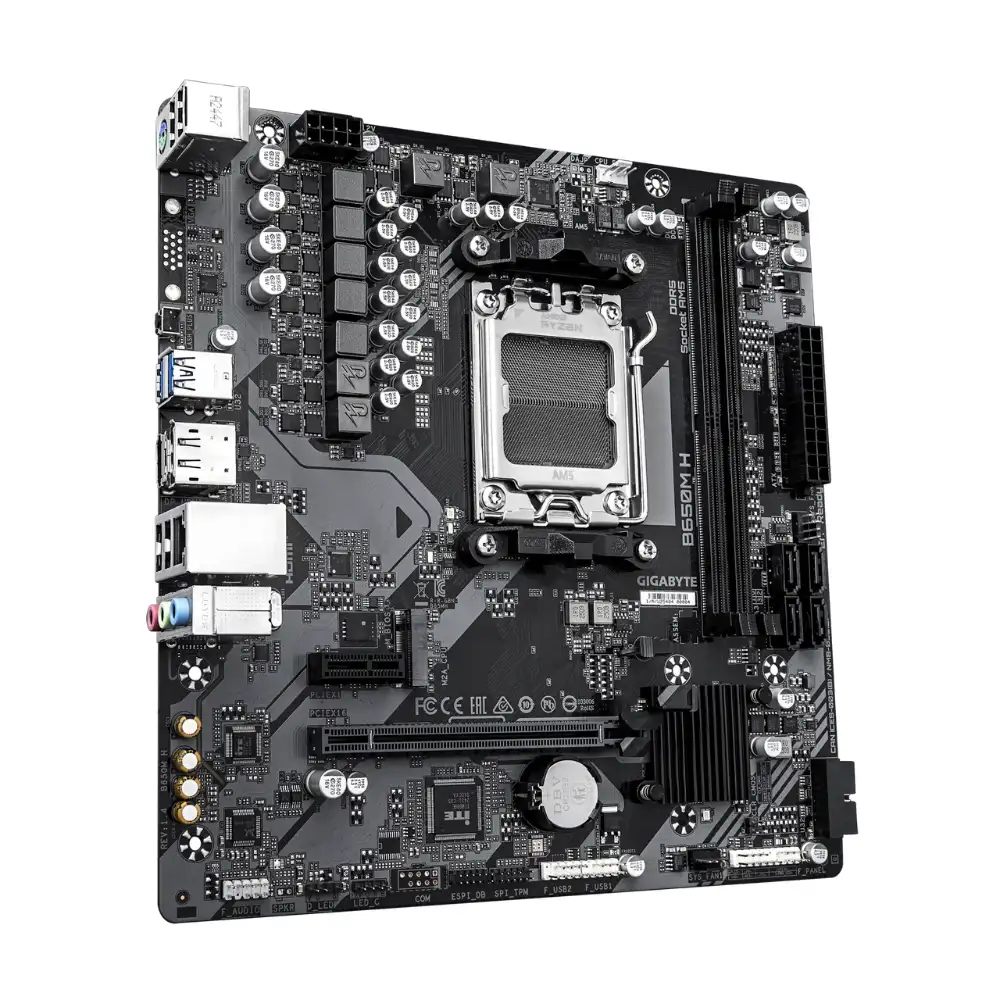

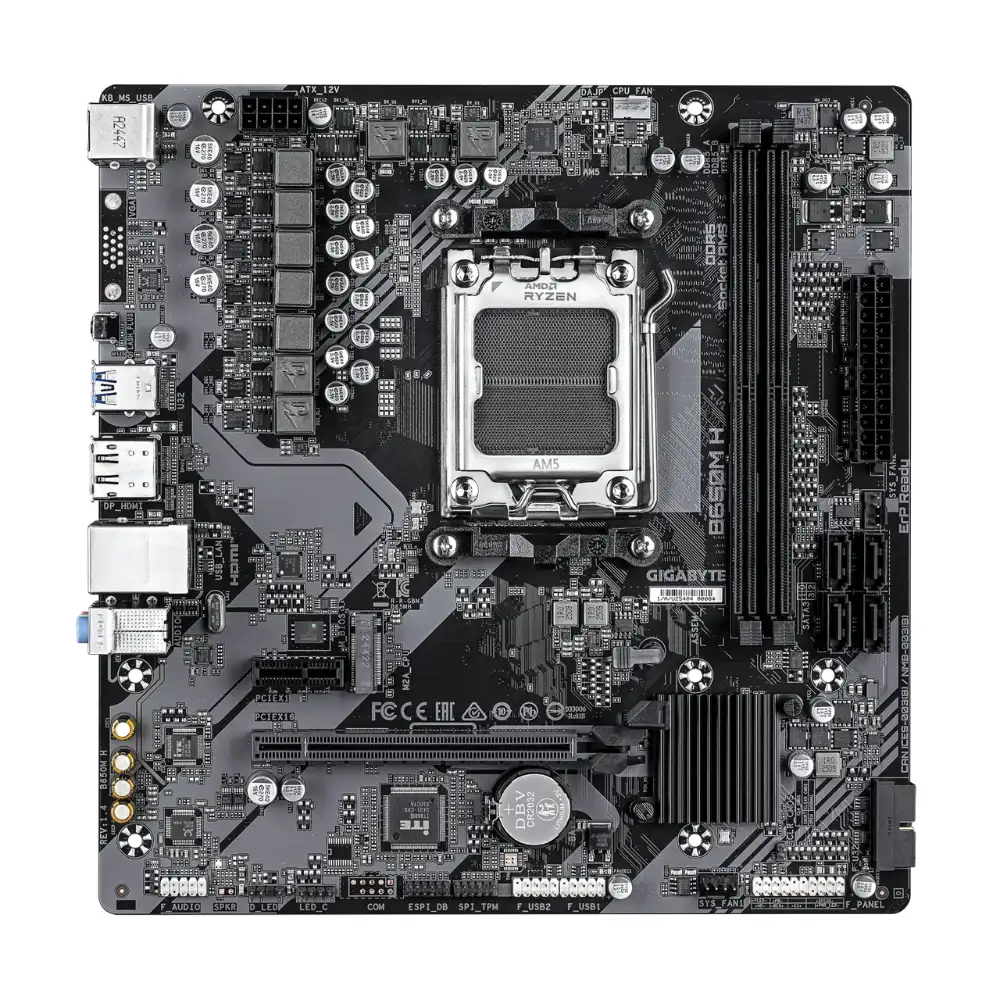

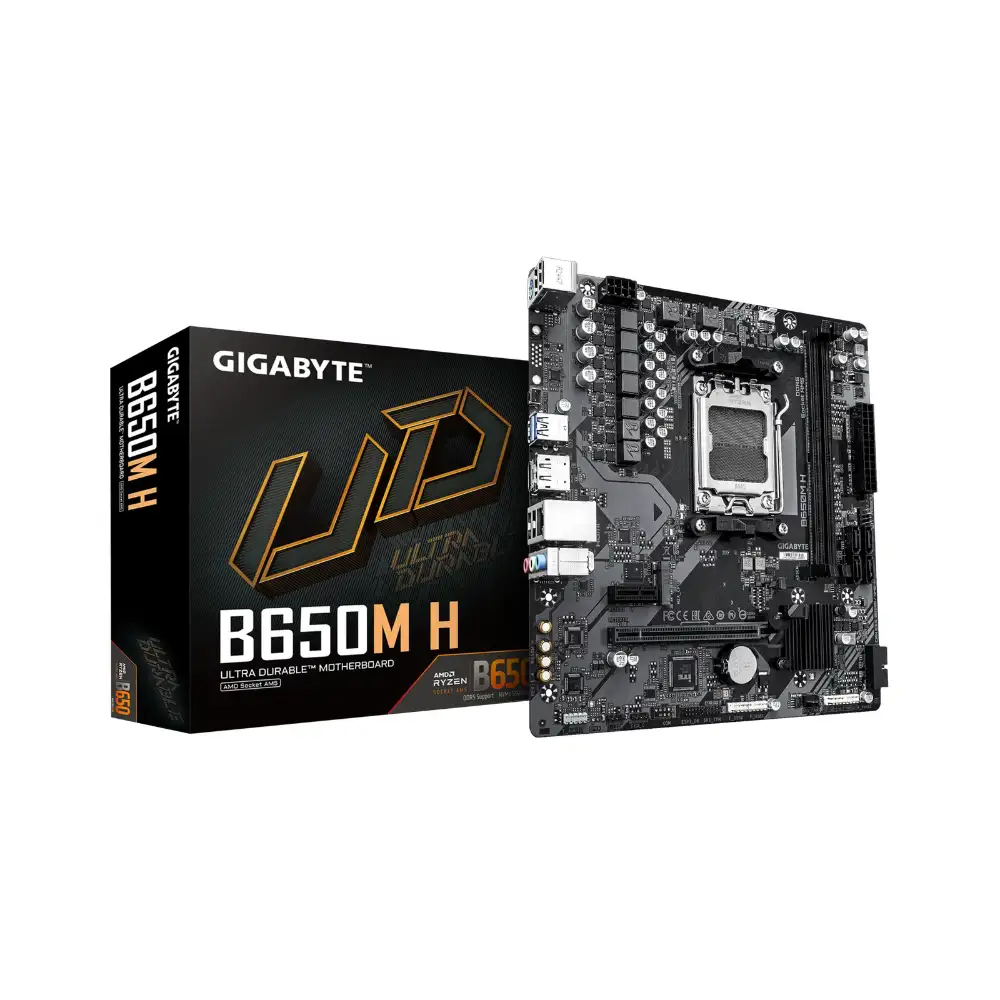

Model : B650M-H
-
Form Factor : Micro ATX
-
Socket : AMD Socket AM5
-
Chipset : AMD B650
-
CPU Support : AMD Ryzen 7000 / 8000 / 9000 Series Processors
Memory
-
Memory Type : DDR5
-
Max Capacity : 128 GB
-
Memory Speed : Up to DDR5-7200 (OC)
-
Features : Dual-Channel Support, AMD EXPO & Intel XMP Support
Graphics Outputs (CPU-Dependent)
-
DisplayPort : 1 x DisplayPort 1.4 (up to 3840×2160 @ 144 Hz)
-
HDMI : 1 x HDMI 2.1 (up to 4096×2160 @ 60 Hz)
Expansion Slots & Storage
-
PCIe Slots :
-
1 × PCIe x16 (up to PCIe 4.0 hardware design, CPU-dependent)
-
1 × PCIe x1 (PCIe 3.0)
-
-
Storage Interface :
-
1 × M.2 PCIe 4.0 slot (supports 2280/2580 form factors)
-
4 × SATA 6Gb/s ports
-
-
RAID Support : RAID 0, RAID 1, and RAID 10 (NVMe & SATA)
Networking & Audio
-
LAN : Realtek 1GbE LAN with Bandwidth Management
-
Audio Codec : Realtek HD Audio (up to 7.1-channel) with High-End Audio Capacitors
USB & I/O Ports
-
Rear I/O Ports :
-
2 × USB 3.2 Gen 1
-
4 × USB 2.0
-
1 × DisplayPort
-
1 × HDMI
-
1 × RJ-45 LAN port
-
3 × Audio Jacks
-
1 × PS/2 Keyboard/Mouse Combo Port
-
1 × Q-Flash Plus Button
-
-
Internal USB Headers :
-
USB 3.2 Gen 1 header
-
USB 2.0 headers
-
Internal Connectors & Headers
-
1 × 24-pin ATX Main Power Connector
-
1 × 8-pin ATX 12V CPU Power Connector
-
1 × CPU Fan Header
-
2 × System Fan Headers
-
RGB & ARGB Headers
-
TPM (Trusted Platform Module) Header
Software & OS Support
-
Operating System : Windows 11 64-bit, Windows 10 64-bit
-
Software Features : GIGABYTE Control Center (GCC), Q-Flash & Q-Flash Plus BIOS Update Support
