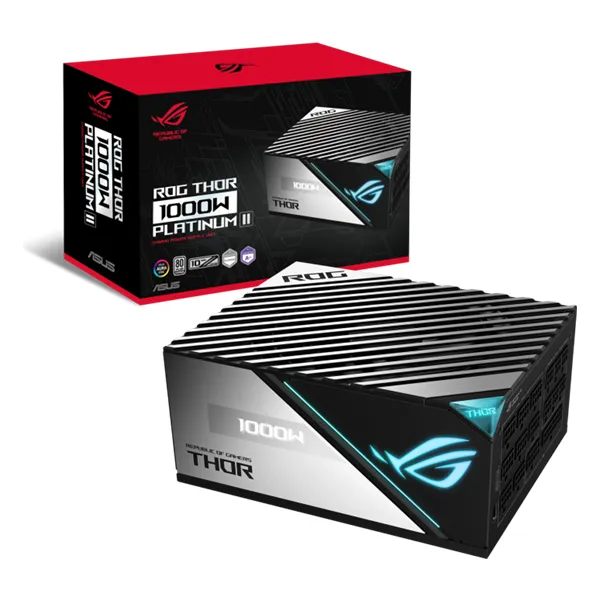

Asus ROG THOR 1000P2 Gaming 1000W Platinum II OLED Power Supply Unit – UK (90YE00L4-B0NA00)

Asus ROG THOR 1000P2 Gaming 1000W Platinum II OLED Power Supply Unit – UK

ROG-THOR-1000P2-GAMING

ROG Thor 1000W Platinum II is the quietest PSU in its class.

The Quietest 1000W Power Supply

Back with a vengeance, the second iteration of the ROG Thor 1000W Platinum wields cooling and component upgrades that make it the quietest PSU in its class*. And to compliment the latest high-end ROG motherboards and bring additional flair to beastly rigs, we’ve added a mirrored side panel that neatly frames the OLED display.

COOLING

ROG Heatsinks

ROG heatsinks have 2x more volume than traditional designs, facilitating lower temperatures, longer component lifespan, and extended 0dB operation.

80 Plus Platinum Certification

The ROG Thor 1000W Platinum II utilizes low-ESR Japanese capacitors to ensure efficient operation. These upgrades enable an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% efficiency at 50% load. The increased efficiency results in less heat, reduces fan noise, and increases reliability.

OLED Power Display

The built-in OLED panel makes it easy to tune your system for best performance and efficiency.

Specifications
Dimensions : 190 x 150 x 86 mm
Efficiency : 80Plus Platinum
Protection Features : OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials : ROHS
AC Input Range : 100-240Vac
Thermal Features : ROG Thermal Solution
DC Output Voltage : +3.3V +5V +12V -12V +5Vsb
Maximum Load : 25A 25A 83A 0.3A 3A
Combined Load : 125W 125W 996W 3.6W 15W
Total Output : 1000W
Connectors
                         MB 24/20-pin x 1

                         CPU 4+4-pin x 2

                         PCI-E 12-pin x 1

                         PCI-E 6+2-pin x 8

                         SATA x 12

                         PERIPHERAL x 6
Package Contents
                         Power Cord x 1

                         Motherboard Power Cable x 1

                         CPU Cable x 2

                         12-pinPCI-E Cable x 1

                         PCI-E Cable 1-to-1 x 4

                         PCI-E Cable 1-to-2 x 2

                         SATA Cable 1-to-4 x 3

                         Peripheral 1-to-3 x 2

                         Addressable RGB cable x1

                         ROG sticker x 1

                         ROG cable tie x 6

                         Sleeved Cable Combs (6-pin) x 4

                         Sleeved Cable Combs (8-pin) x 10

                         Sleeved Cable Combs (24-pin) x 2

                         Chassis Screws Package x 1

                         Cable Tie x 12

                         User Manual x 1
Weight : 2.37 KG
AURA SYNC : ARGB
0dB Fan Button : Yes
