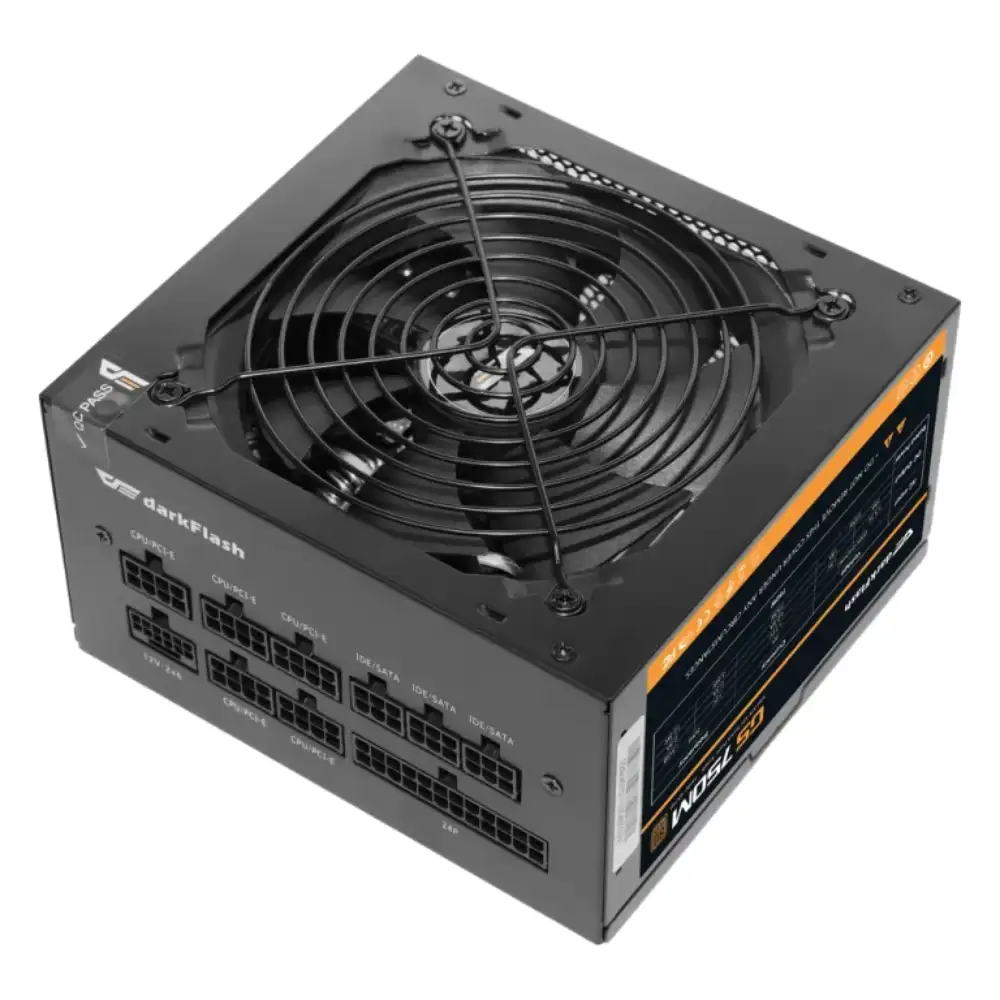

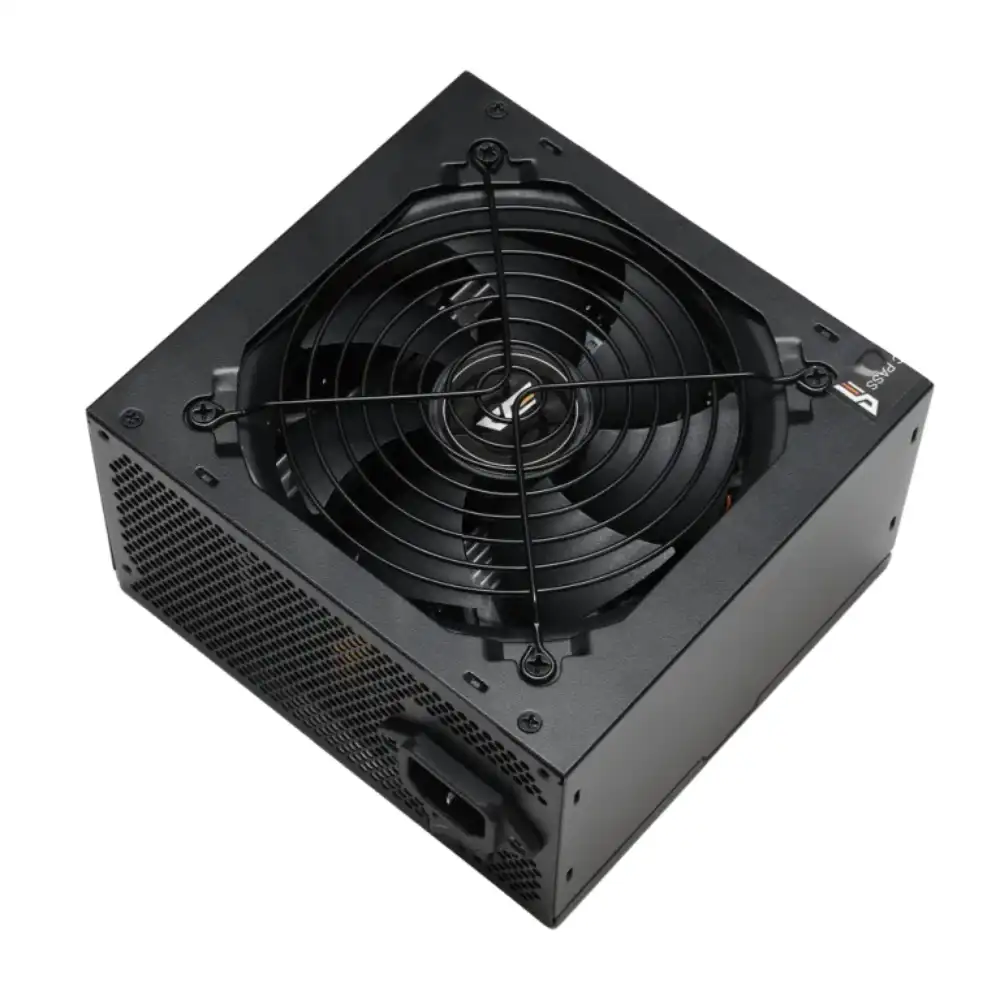

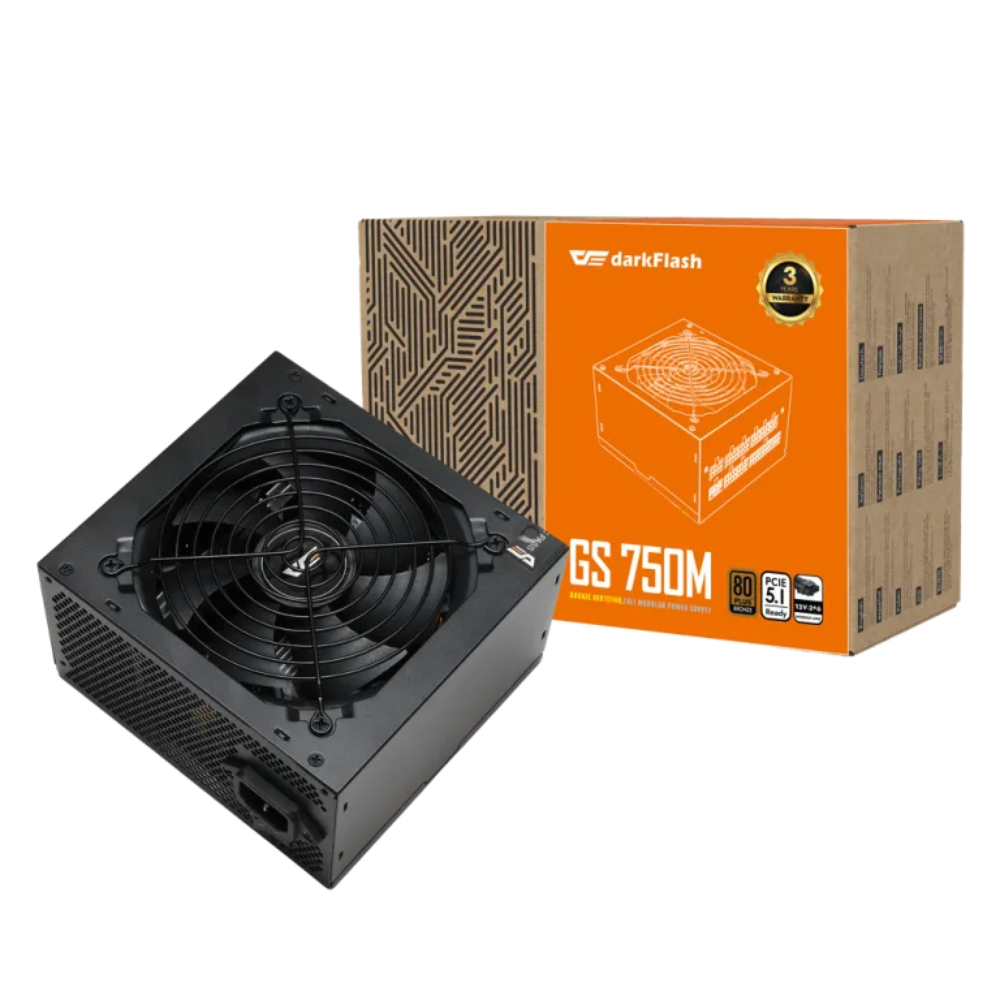

- Power your high-performance gaming rig with the Darkflash GS750, a 750W Full Modular Power Supply Unit.
- Achieving the 80 PLUS Bronze certification, this PSU guarantees high efficiency and reliability, minimizing wasted heat and lowering energy consumption under typical loads.Â
- The GS750 is built on the stringent ATX v3.1 standard and is PCIe 5.1 Ready, featuring a dedicated 12VHPWR (12+4 Pin) connector designed to meet the instantaneous power demands of modern, high-end graphics cards.
- For enhanced stability and longevity, the unit incorporates high-quality Japanese capacitors and an advanced internal Active PFC + Half Bridge LLC + DC to DC topology, ensuring clean, consistent power delivery across all voltage rails.Â
- The full modular cable system allows builders complete control over cable management, drastically improving internal airflow and resulting in a cleaner build aesthetic.

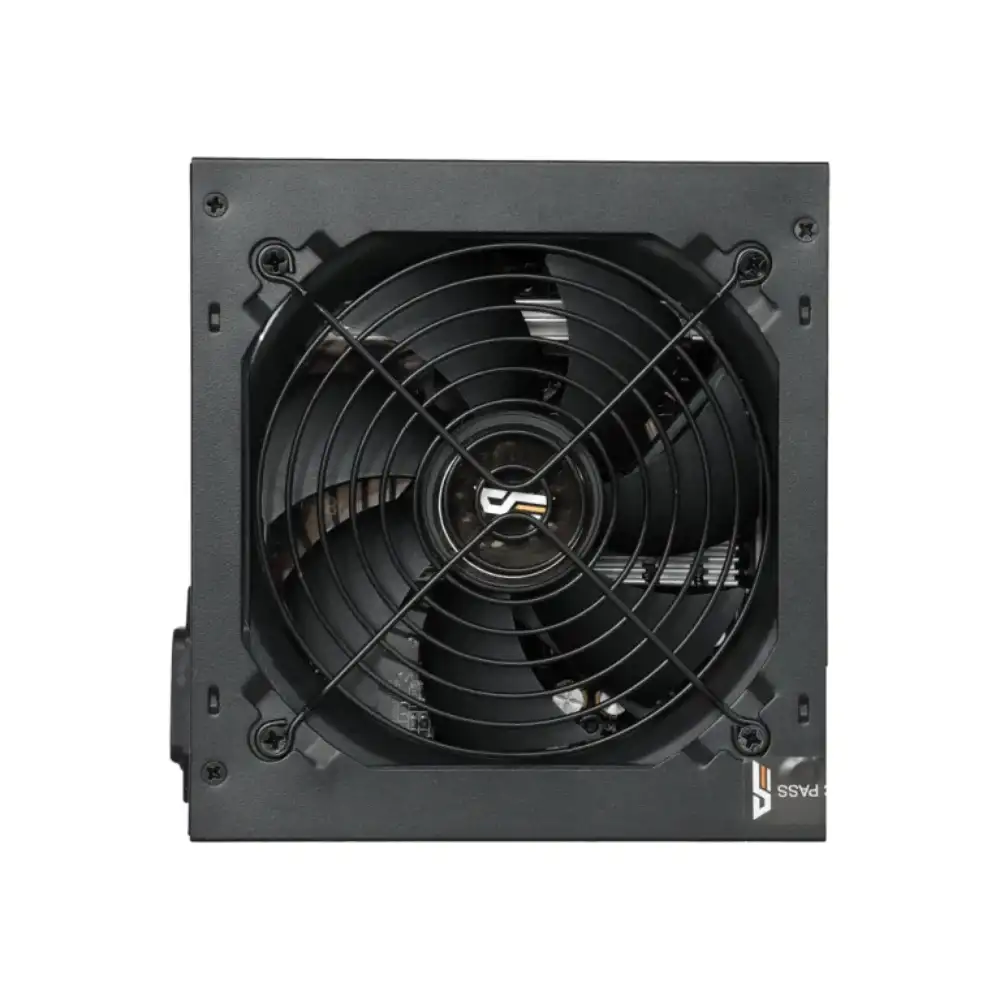

- Cooling is efficiently managed by a large 120mm Hydro Bearing fan, which is optimized for low-noise operation, making the GS750 an ideal choice for powerful yet quiet systems.
Specifications
Core Power & Certification
- Model / Wattage : GS750 / 750W
- Efficiency Certification : 80 PLUS BRONZE
- ATX Standard : ATX v3.1 / PCIe 5.1 Ready
- Topology : Active PFC + Half Bridge LLC + DC to DC
- Capacitors : High-Quality Japanese Capacitors
Cooling & Physical
- Form Factor / Size : Standard ATX (140 × 150 × 86 mm)
- Cable System : Full Modular
- Cooling Fan : 120mm Low-Noise Fan (Hydro Bearing)
- Power Good Signal : 100 – 250 ms

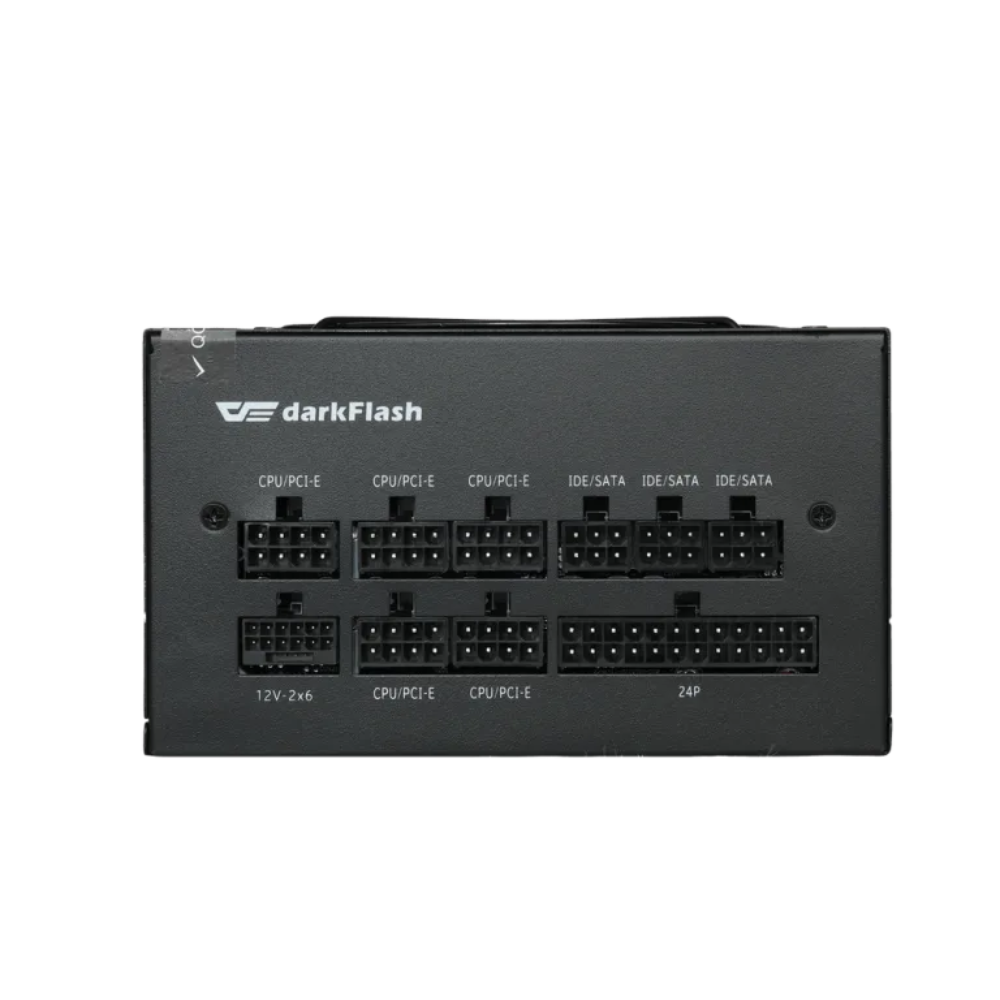

Connectors Provided
- Main Power (20+4 Pin) : 1
- CPU (P4+4) : 2
- PCI-E (6+2 Pin) : 4
- PCI-E 5.1 (12V-2*6Pin ) *1
- SATA : 4
- PATA (Molex) : 2
