Product Specifications
-
Memory Type: TOUGHRAM RC Series
-
Compatibility: Intel LGA 2066/2011-3/2011/1700/1200/1156/1155/1151/1150, AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1

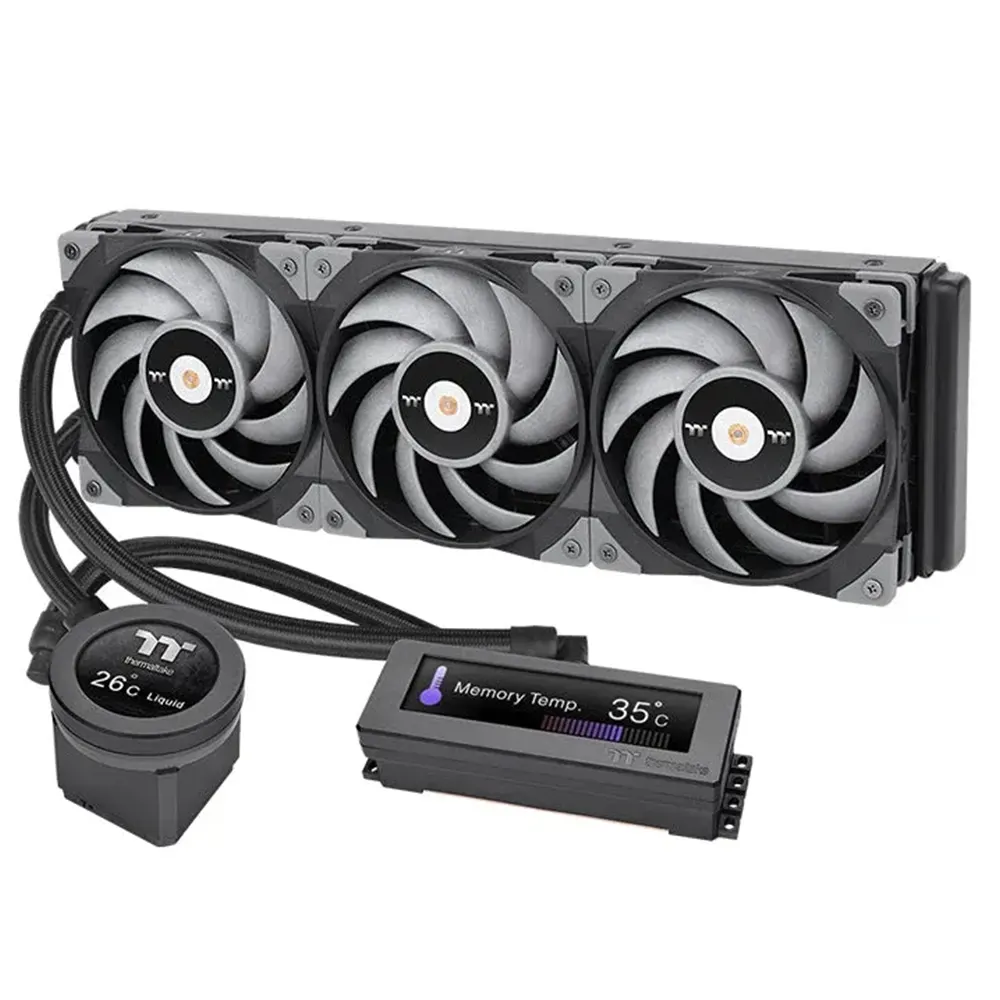

LCS Kit Specification
-
Water Block Material: Copper
-
Pump:
-
Motor Speed: 3200 RPM
-
Rated Voltage: 12 V
-
Rated Current: 0.38 A
-
Power Input: 4.56 W
-

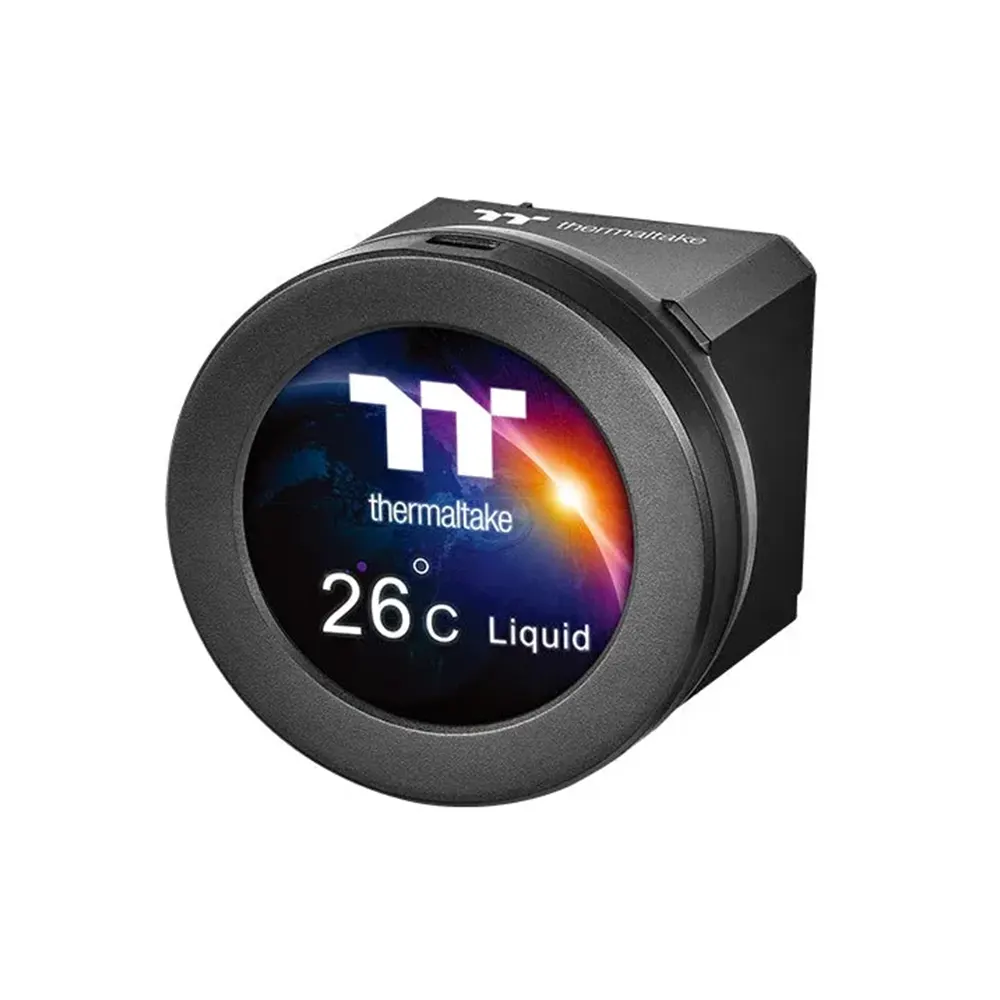

CPU Display
-
Rated Voltage: 5 V
-
Power Input: 11.5 W
-
Display Type: 2.1” TFT-LCD (IPS)
-
Display Resolution: 480×480 (RGB) px

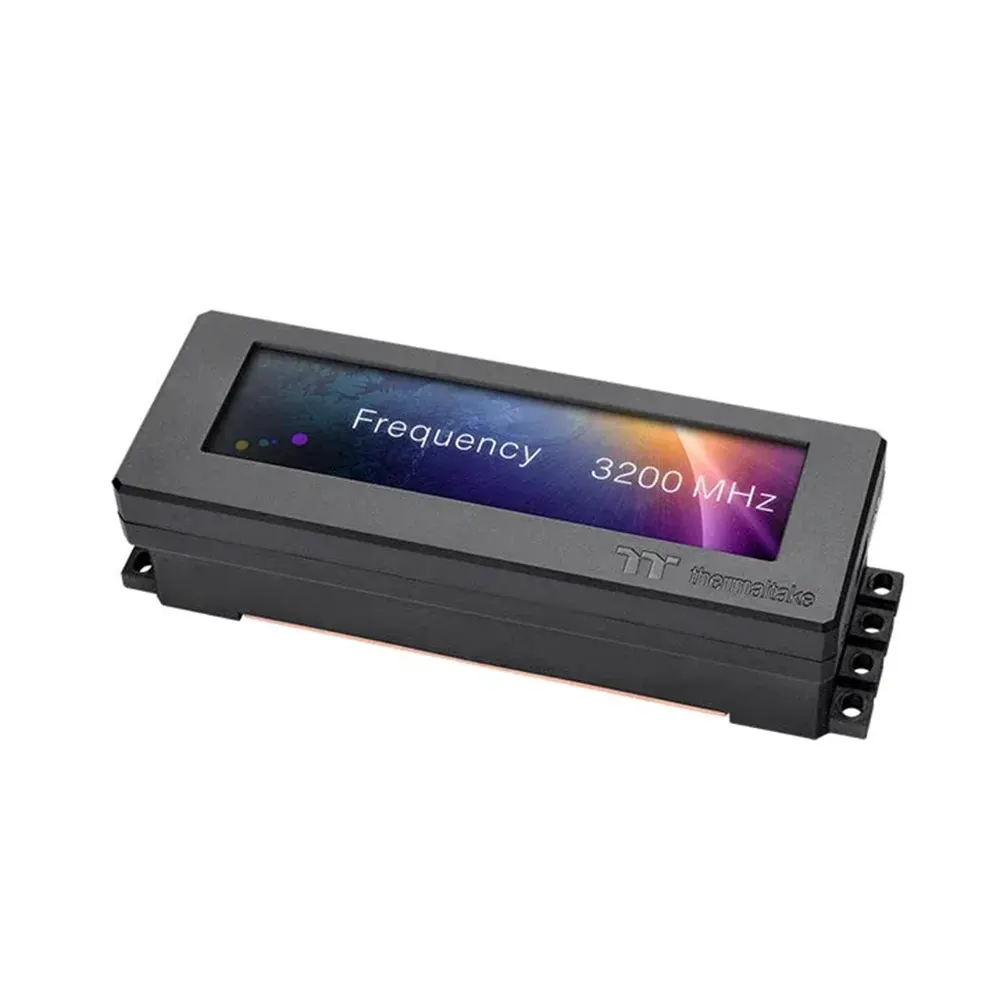

Memory Display
-
Rated Voltage: 5 V
-
Power Input: 14 W
-
Display Type: 3.9″ TFT-LCD (IPS)
-
Display Resolution: 128×480 (RGB) px
Display Support
-
Interface: Micro USB to USB (9PIN)
-
System Compatibility: Windows 7 / 8 / 8.1 / 10
Fan
-
Dimensions: L120 x W120 x H25 mm
-
Speed: PWM 500~2500 R.P.M (2510-4PIN)
-
Noise Level: 28.1 dB-A
-
Power Input: 2.76 W (one fan)
-
Rated Voltage: 12 V
-
Rated Current: 0.23 A (one fan)
-
Max. Air Flow: 72.69 CFM (one fan)
-
Max. Pressure: 3.78 mm-H2O (one fan)

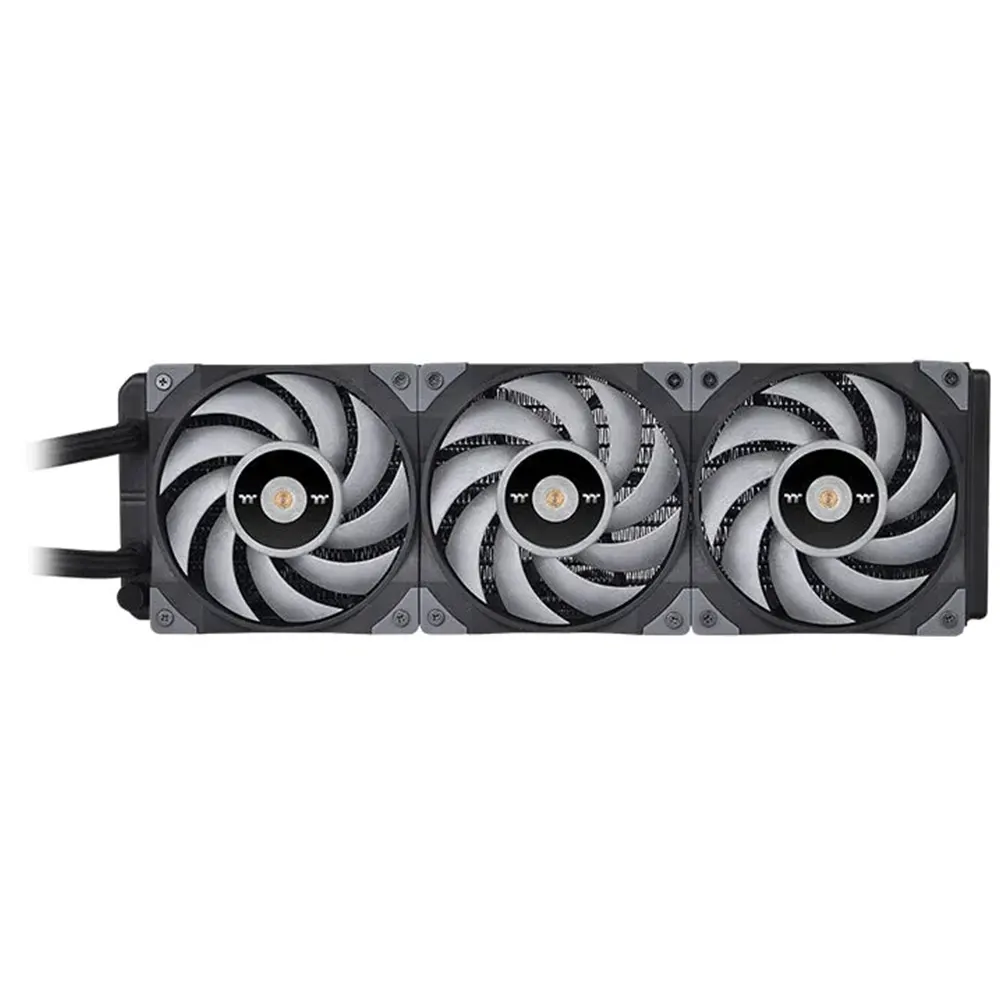

Radiator
-
Dimensions: L395 x W120 x H27 mm
-
Material: Aluminum
Tube
-
Length: 400 mm
-
Material: Rubber
