Specifications

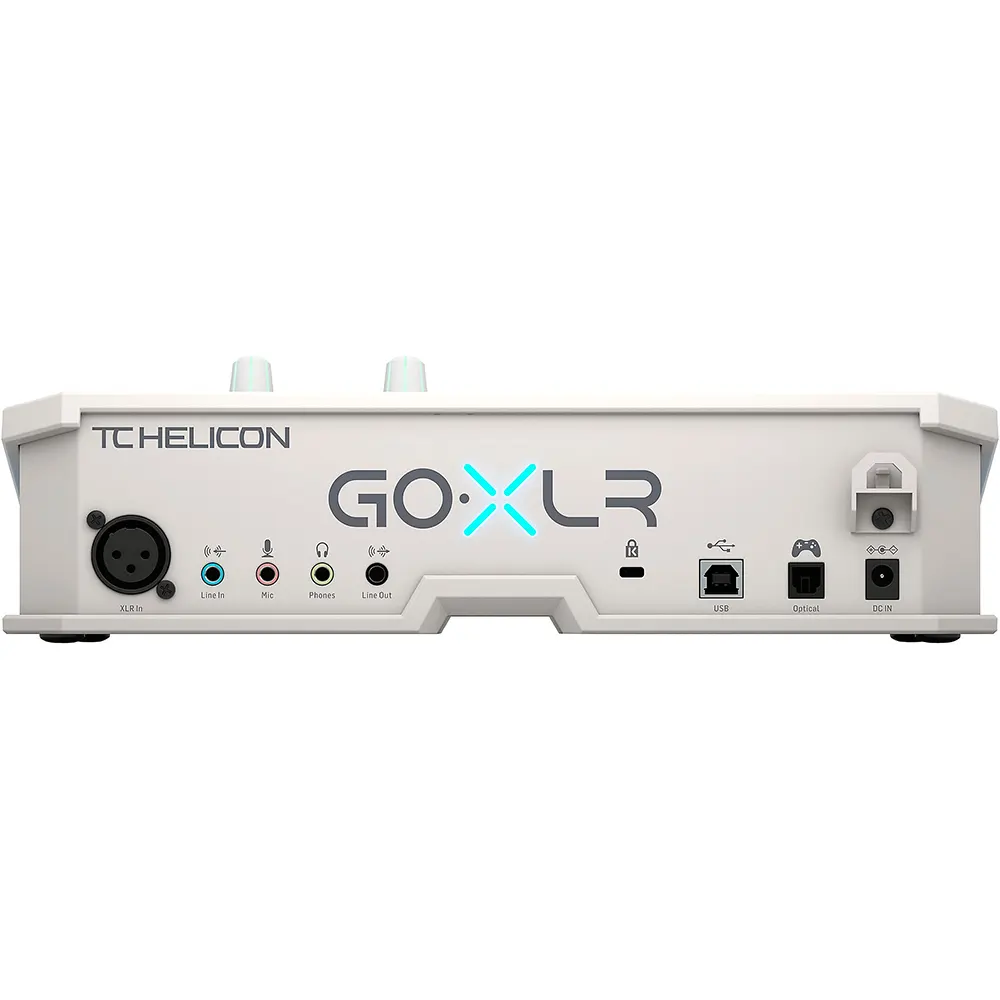

Analog Connections
- XLR In: 1 x XLR, balanced (Phantom power: +48V, switchable via control app)
- Line In: 1 x 1/8″ TRS, stereo
- Mic: 1 x 1/8″ TRS, biased for computer microphone input
- Phones: 1 x 1/8″ TRS, stereo
- Line Out: 1 x 1/8″ TRS, stereo
Digital Connections
- USB: 1 x USB 2.0, type B
- Optical: 1 x Toslink

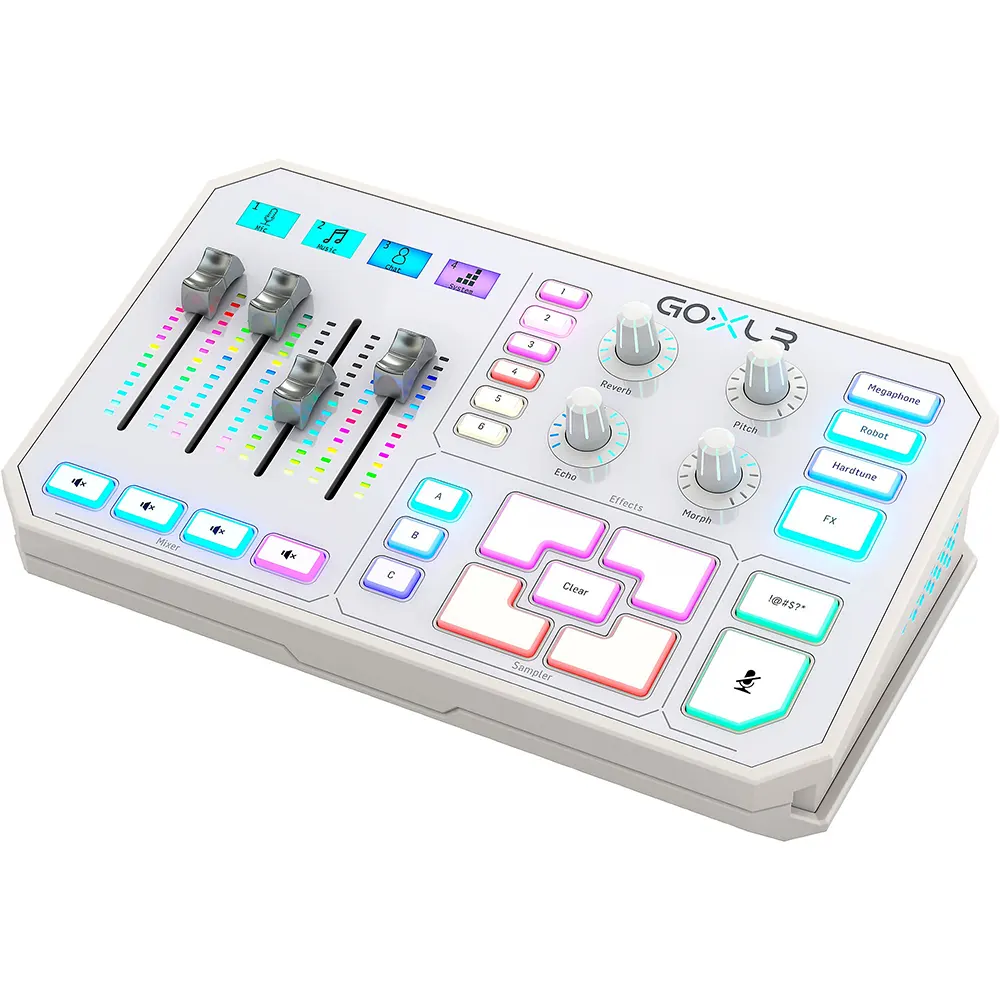

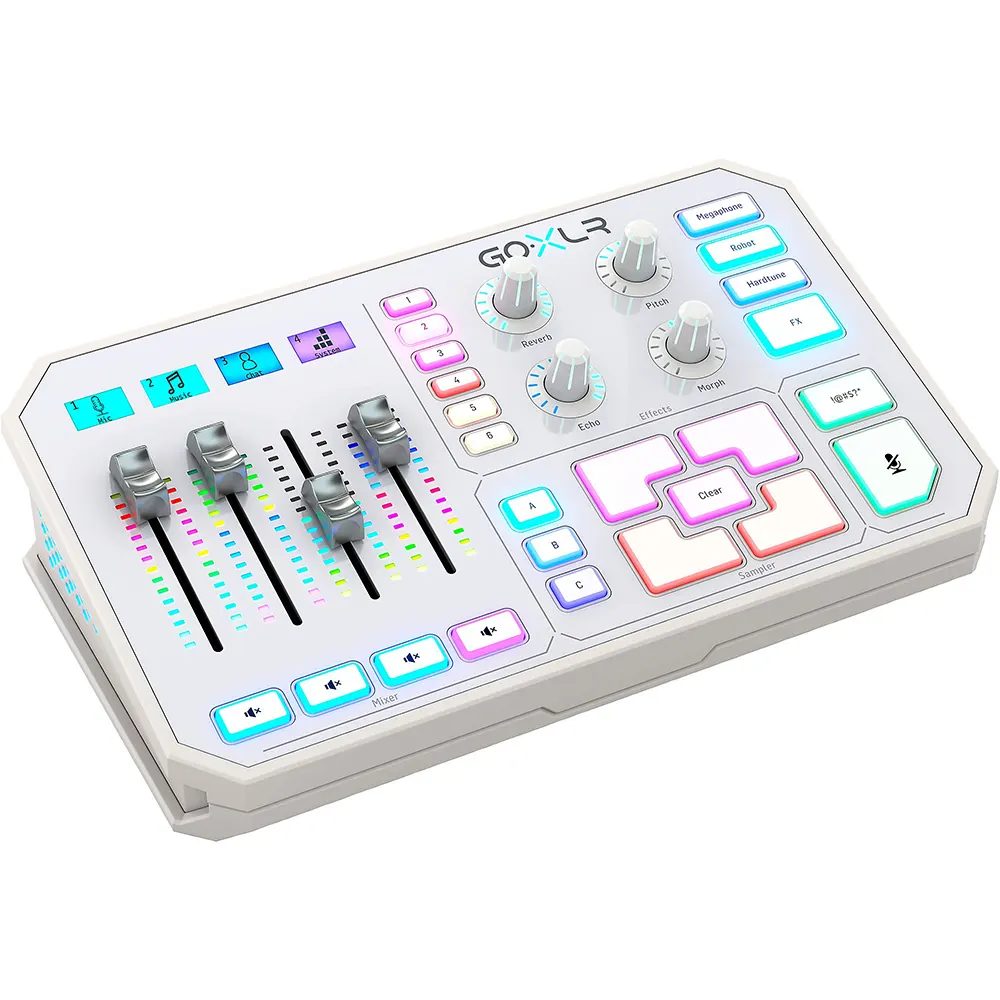

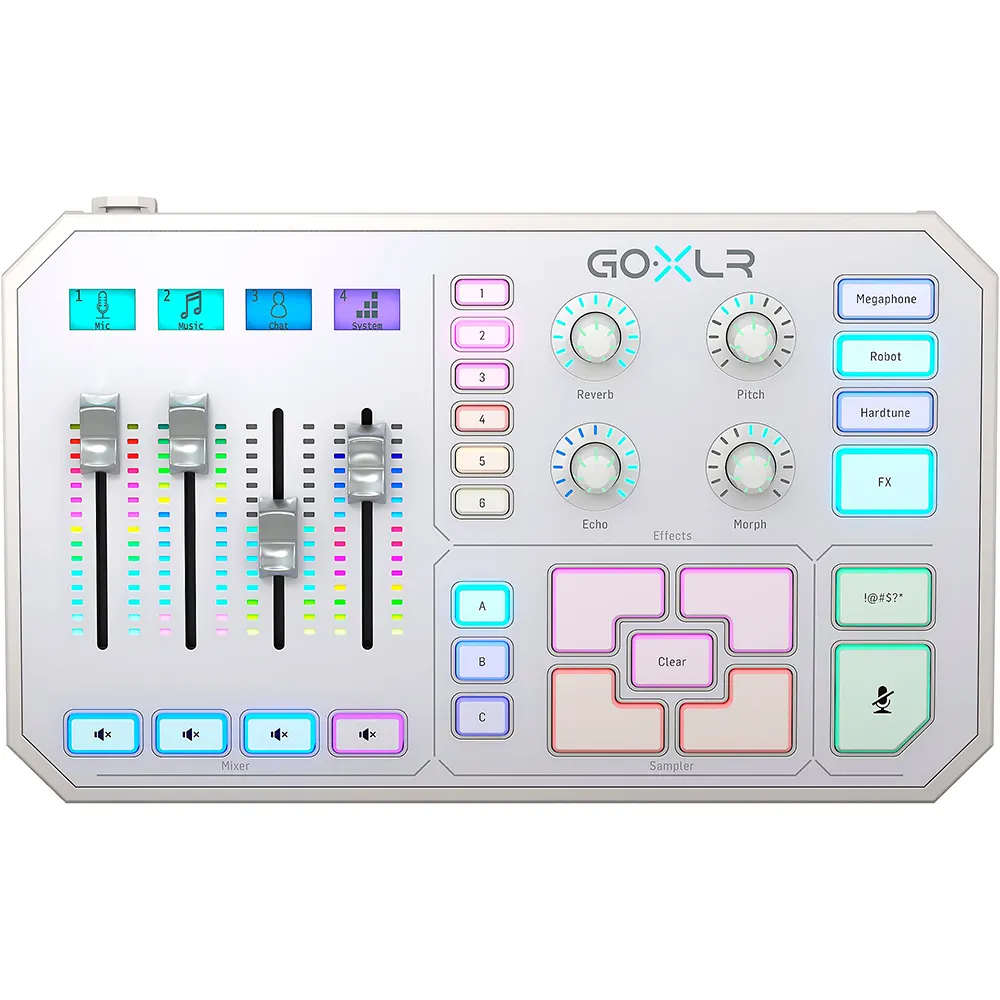

Controls
- Motorized faders: 4
- Backlit LCD scribble strips: 4
- Rotational encoders: 4
- Lighting: RGB
- Buttons: 24
System / Processing
- A/D – D/A conversion: 24-bit @ 48kHz
- Effects: Reverb, Echo, Pitch Shifting, Morph (formant shifting), Megaphone, Robot, Hardtune, Sampler
- Frequency response: 10Hz–20kHz, +0/-2dB
- Dynamic range: > 110dB
- S/N ratio: > 101dB
Power Supply / Voltage
- Power input: Standard 12V DC, center negative (< 1 A) (power supply included)
- Adapter: 12V DC / 1 A
- Power consumption: 10W
Dimensions / Weight
- Dimensions: 3.2 x 11.2 x 6.9″
- Weight: 3.41 lb.
