NZXT H9 Flow RGB+ Dual-Chamber Mid-Tower ATX Airflow Case with RGB and Control Hub – Black

SKU: 49208

Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.

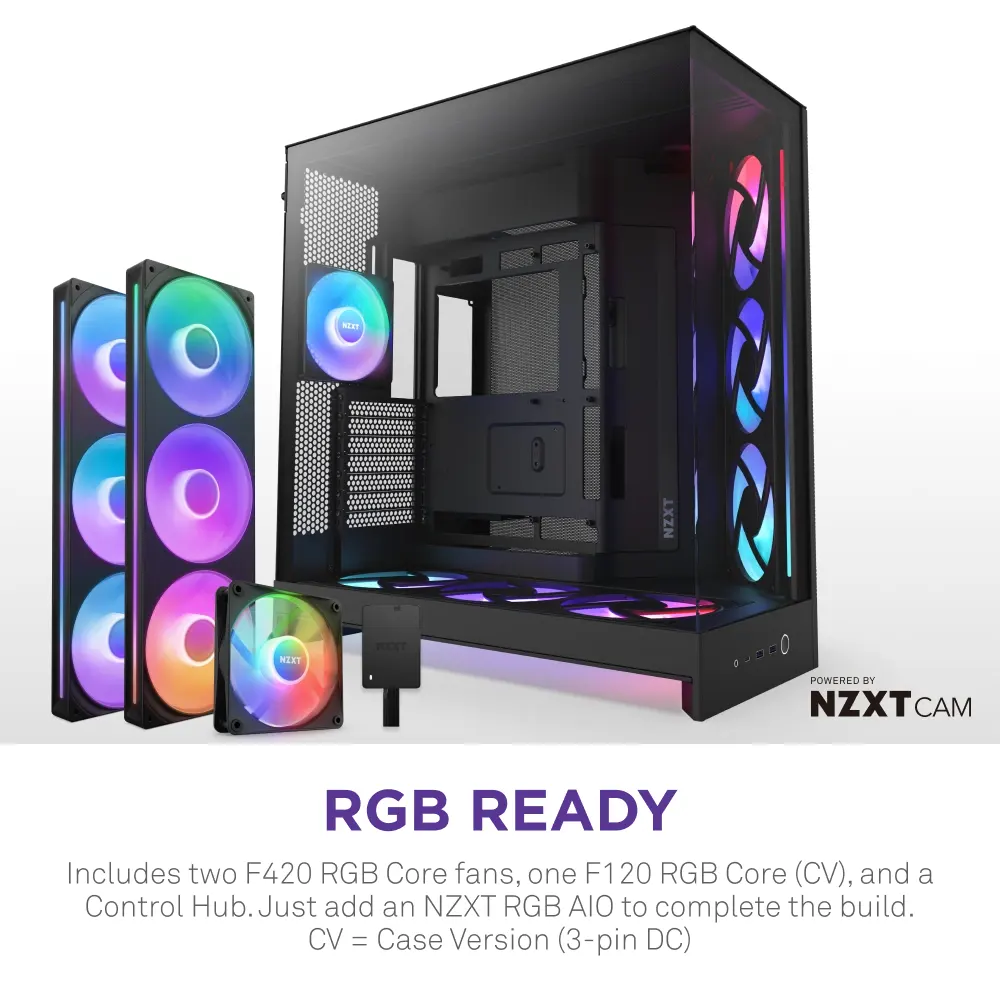

RGB Ready: Includes two F420 RGB Core single-frame fans, one F120 RGB Core (CV) fan in the rear, and an NZXT Control Hub. CV = Case Version (3-pin DC)
Ten-Fan Capacity: Supports up to nine 140 mm fans across the top, front-right, and bottom, plus one 120 mm fan in the rear.

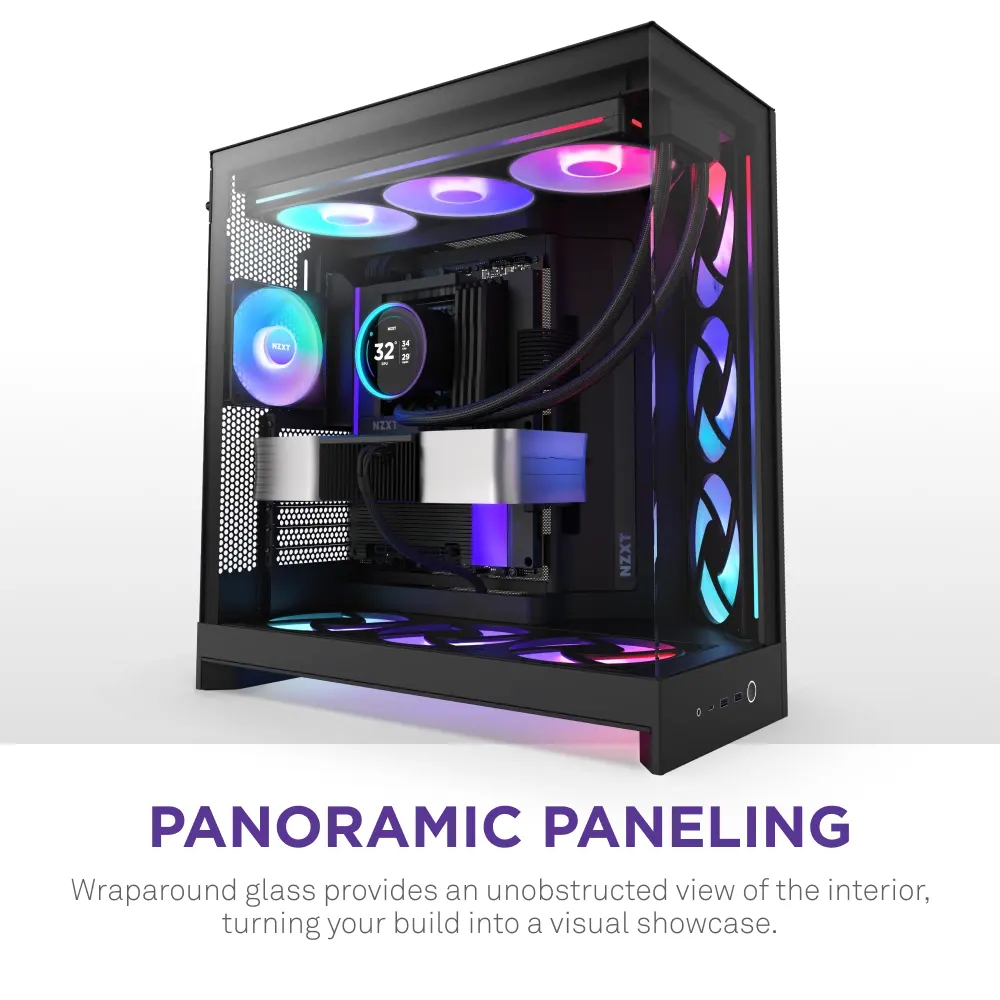

Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
Large Radiators & GPUs: Fits up to a 420 mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.

102.000 د.ك

1 in stock

20 People watching this product now!

Payment Methods:

Description

Tech Specs

General

Enclosure Type: Mid-tower
Motherboard Support: E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX
Rear-Connecting Motherboard Support: Yes (ATX)
Power Supply Type: ATX
Materials: SGCC steel, clear tempered glass (Black), tinted tempered glass (black)

Dimensions

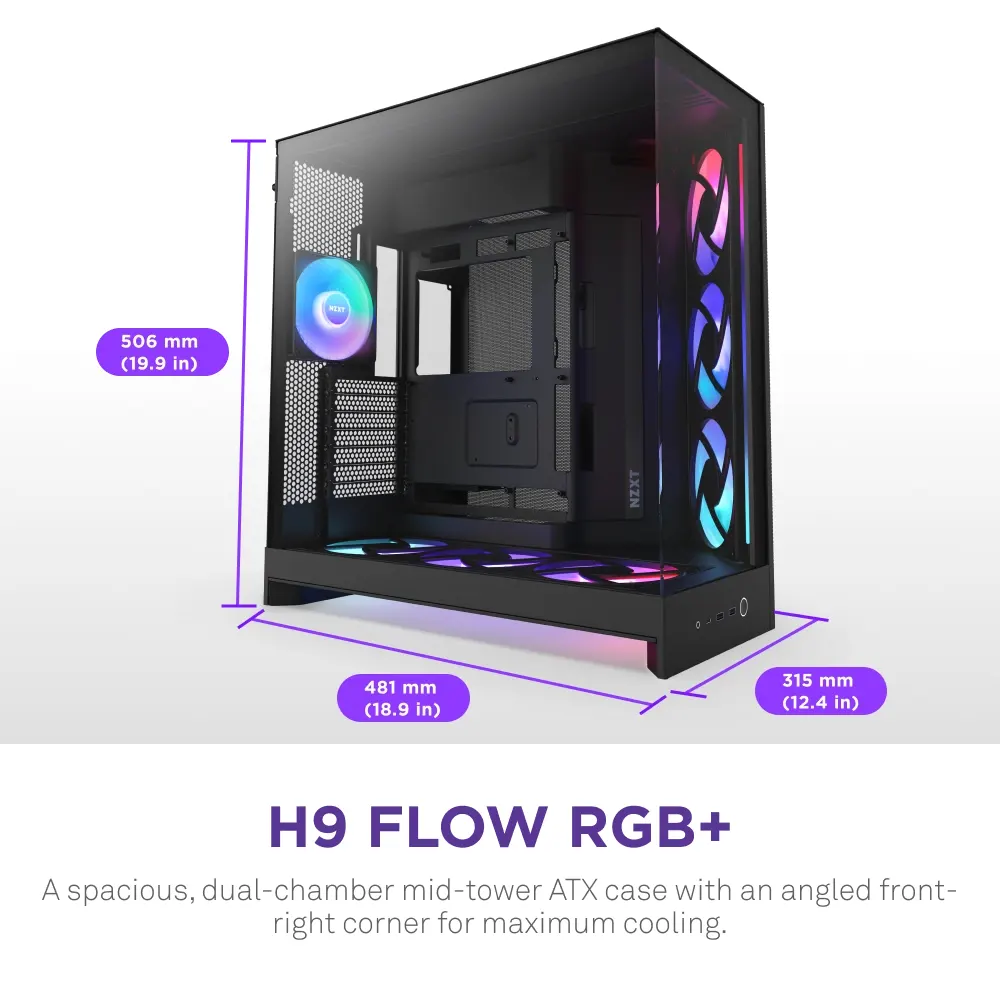

Dimensions (H x W x D): 506 x 315 x 481 mm (19.9 x 12.4 x 18.9 in)
Volume: 76.7 L
Weight: 13.29 kg (29.3 lb)

Clearance

CPU Cooler Height: 165 mm (6.5 in)
GPU Length: Up to 459 mm (with <56 mm thickness fans installed at the front-right), Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)
PSU Length: 200 mm (7.9 in)
Top Radiator + Fan Thickness: Up to 80 mm (360 mm), Up to 62 mm (420 mm)

Front I/O

USB 3.2 Type-A: 2
USB 3.2 Gen 2×2 Type-C: 1
Headset Jack: 1

Expansion & Drives

Expansion Slots: 7
2.5″ Drive Bays: 4+2
3.5″ Drive Bays: 2

Cooling Support

Front-Right Fans: 3 x 120 mm / 3 x 140 mm (1 included)
Top Fans: 3 x 120 mm / 3 x 140 mm
Bottom Fans: 3 x 120 mm / 3 x 140 mm (1 included)
Rear Fan: 1 x 120 mm (1 included)
Front-Right Radiator: Up to 420 mm
Top Radiator: Up to 420 mm
Bottom Radiator: Up to 360 mm
Rear Radiator: Up to 120 mm

Included Fan Specs

Model: F420 RGB Core / F120 RGB Core (Case Version)
Quantity: 2 / 1
Speed: 2,000 ± 200 RPM / 1,300 ± 130 RPM
Airflow: 98.61 CFM / 55.17 CFM
Static Pressure: 3.2 mmH₂O / 1.27 mmH₂O
Noise Level: 34.5 dBA / 26.1 dBA
Fan Connector: 8-pin / 3-pin

Control Hub

Fan Channels: 3 x NZXT 8-pin (PWM only) / 1 x NZXT 8-pin (DC+PWM control) / 1 x 4-pin PWM (DC+PWM control)
RGB Channels: 4 x NZXT 8-pin / 1 x NZXT RGB
Max LED Support: Each NZXT 8-pin channel supports a maximum of 96 LEDs. NZXT RGB channel supports up to 40 LEDs and up to NZXT 5 devices.
