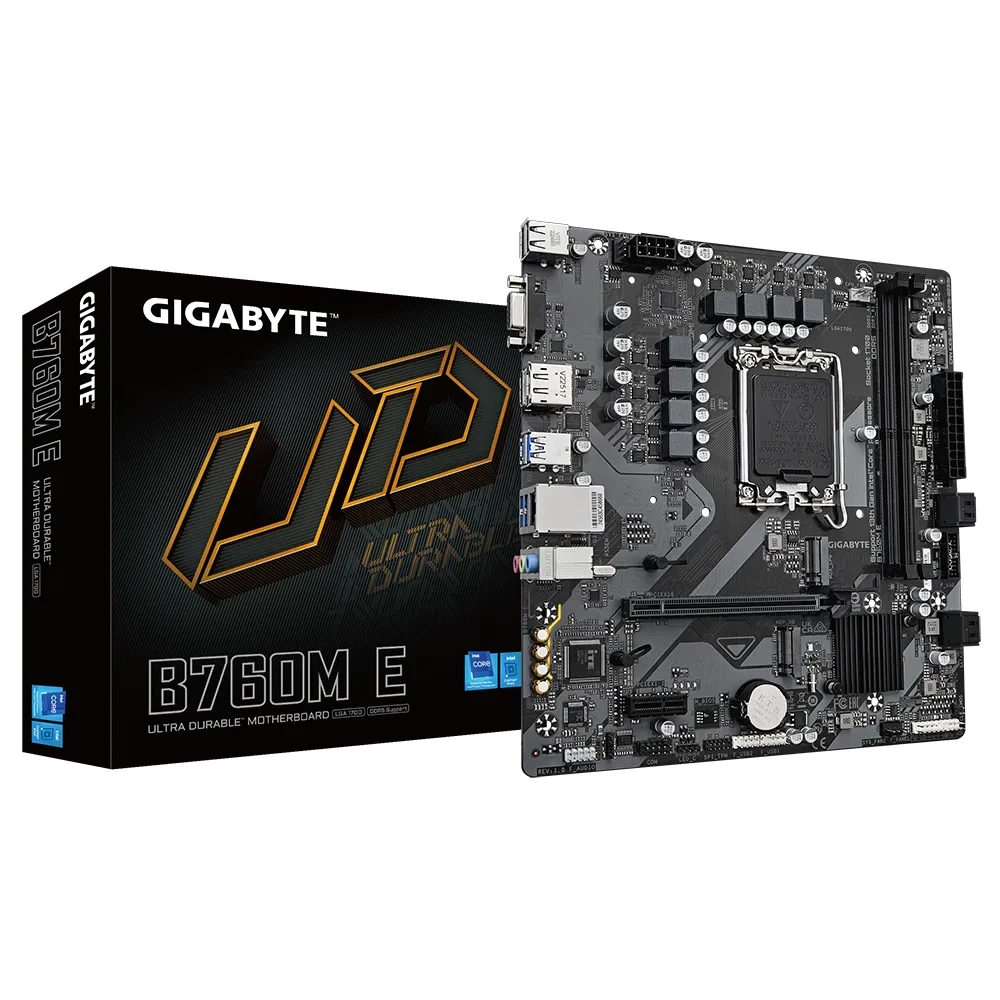

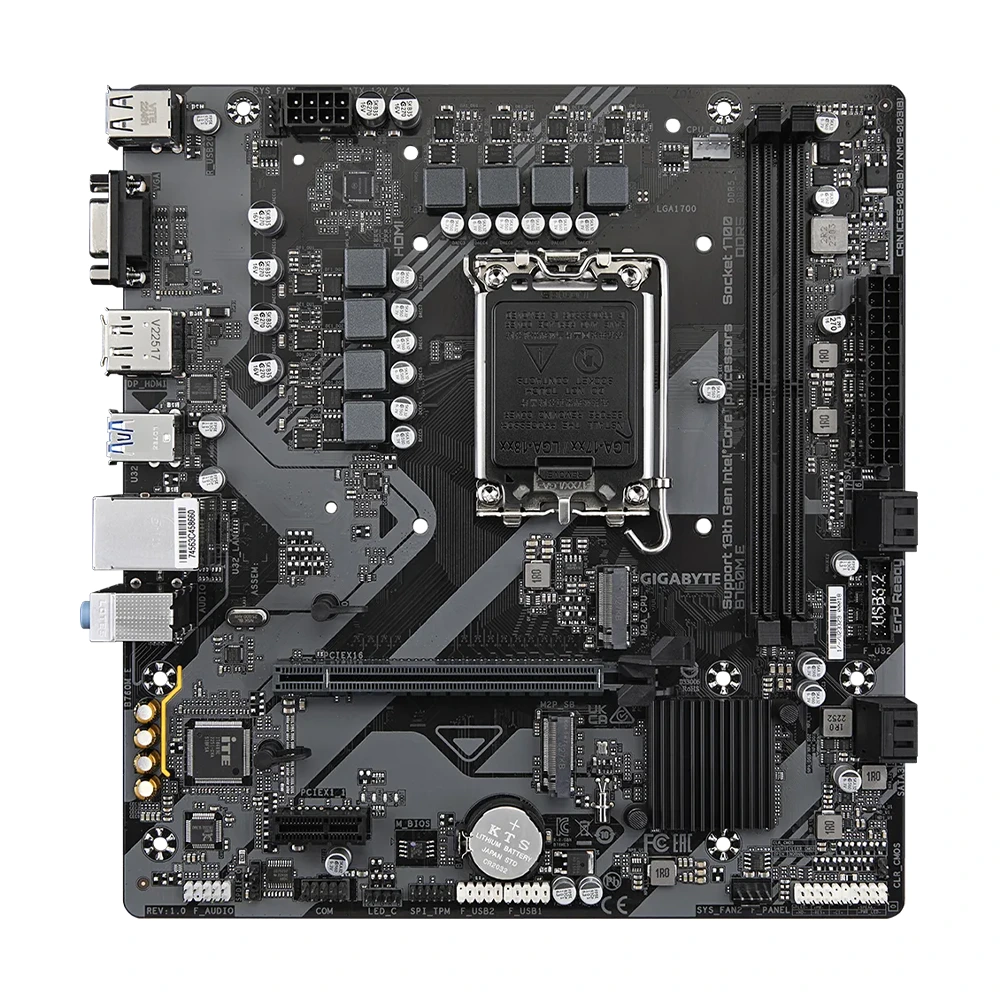

GIGABYTE B760M E DDR5 Micro ATX Motherboard – Black

SKU: 43099
  • Brand : Gigabyte
  • Motherboard Series : B Series
  • Socket Type : LGA 1700
  • Form Factor : Micro ATX
  • Memory Type : DDR 5
  • Wi-Fi : No

Taly Available

Pay in 4 easy installments with Taly

Deema Available

Pay your way with Deema – easy monthly installments

2 in stock

33,900 د.ك

0 days 00 hr 00 min 00 sc

2 in stock

Compare
16 People watching this product now!

Payment Methods:

Description

Model No GIGABYTE B760M E DDR5 Micro ATX Motherboard – Black
Part No B760M E
Chipset Intel ® B760 Express Chipset
Form Factor Micro ATX
Socket Compatibility LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
Wireless & Bluetooth None
Lighting None
Memroy Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Storage Compatibility CPU:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

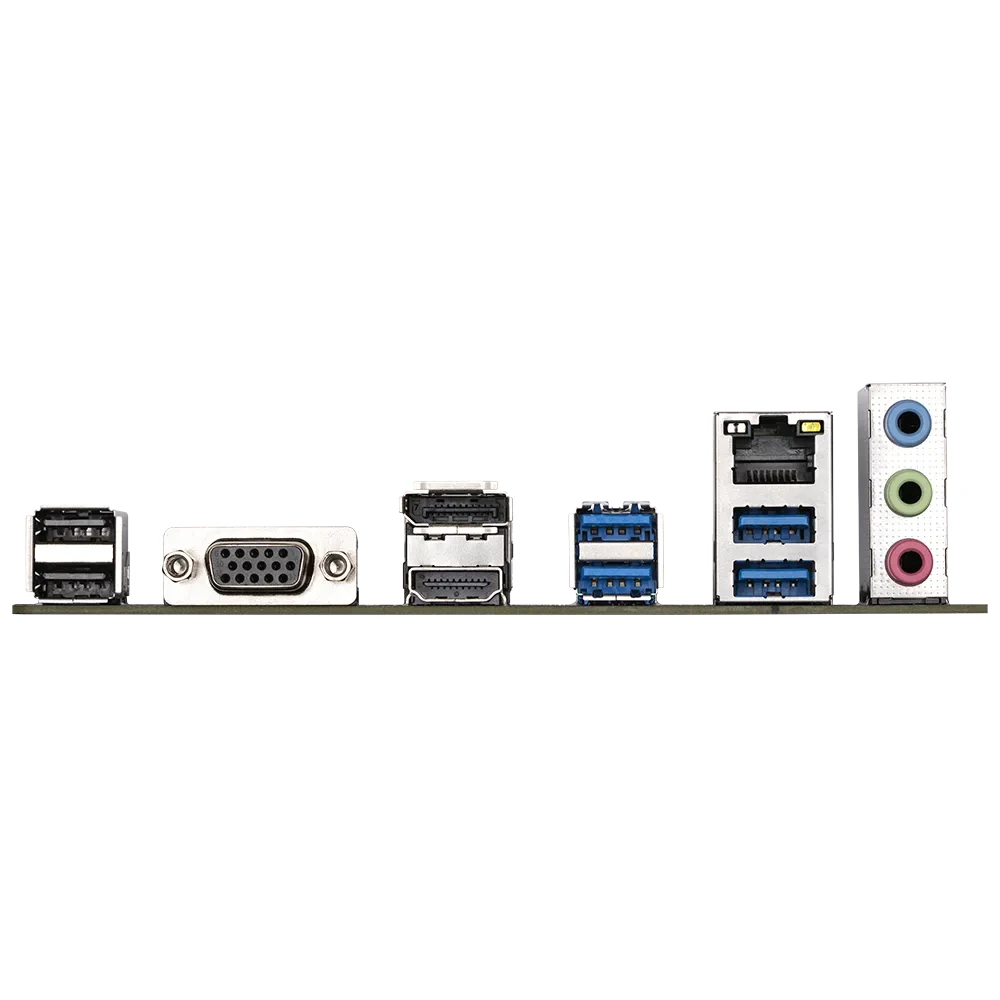

Back Panel I/O Ports 2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
USB Ports Front (Support ) 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
– 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Expansion Slots CPU:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
Product Size ( Dimension ) 23.0cm x 21.5cm
Product Weight 1.82 pounds
