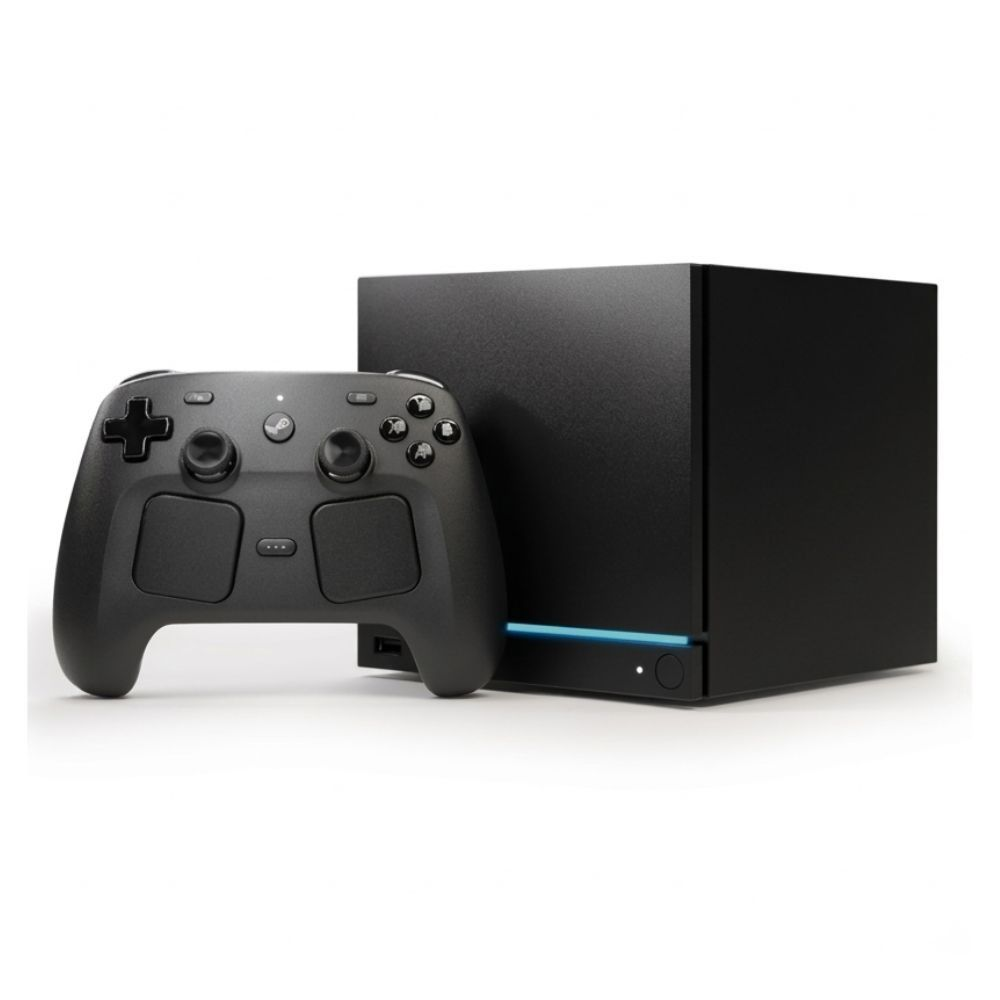

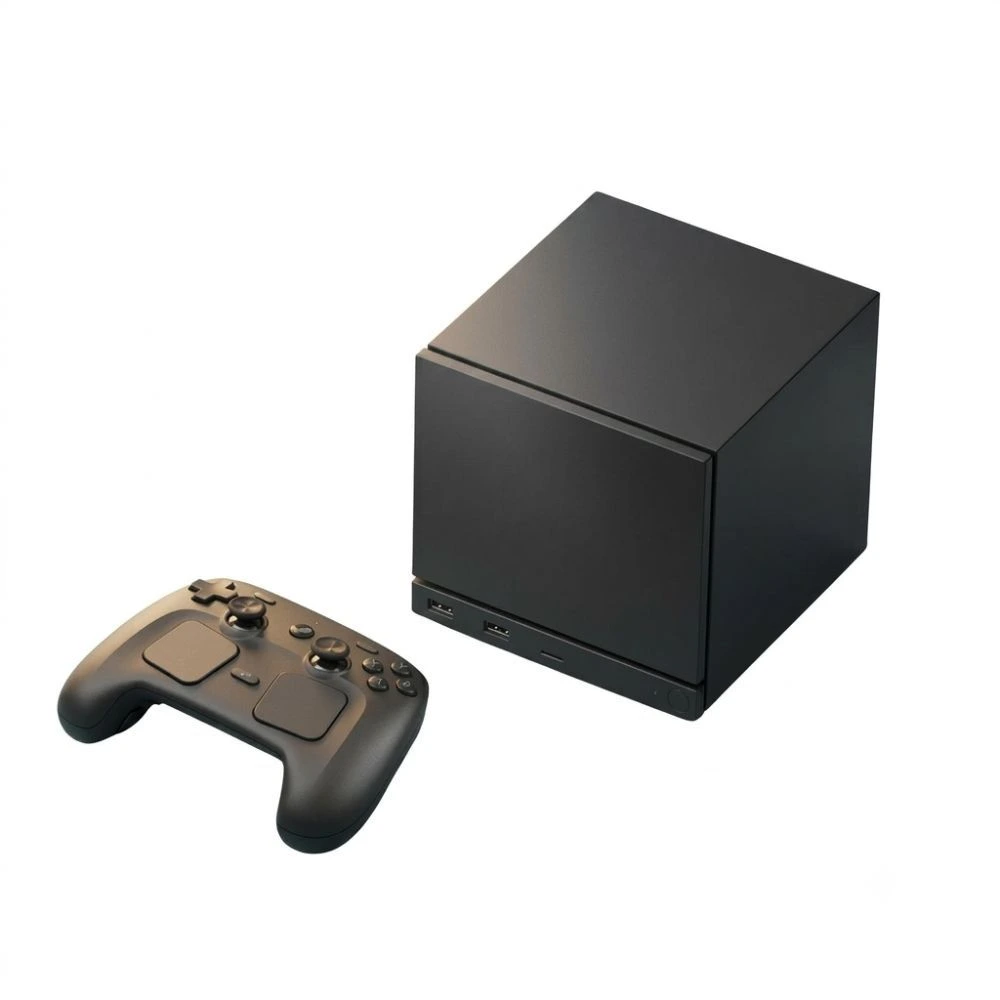

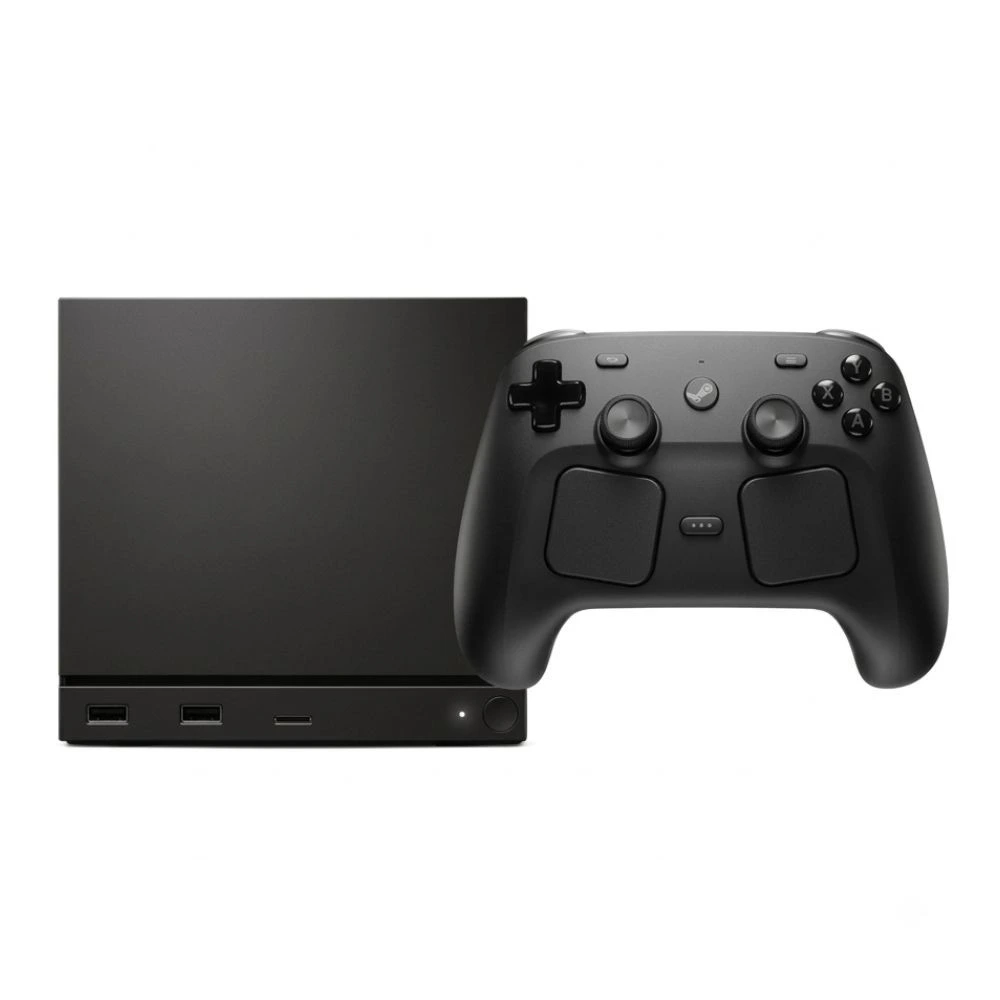

Valve Steam Machine Pre-built Gaming Pc 512gb NVMe SSD With Steam Controller
Steam Machine Specifications
Performance
Processor:
Semi-custom AMD Zen 4 6-Core / 12-Thread CPU
Up to 4.8 GHz | 30W TDP
Graphics:
Semi-custom AMD RDNA 3 GPU
28 Compute Units | Up to 2.45 GHz sustained clock speed | 110W TDP
Memory:
16GB DDR5 RAM + 8GB GDDR6 VRAM
Storage:
512GB NVMe SSD
Power Supply:
Internal power supply
AC 110-240V support
Connectivity
Wi-Fi:
2×2 Wi-Fi 6E
Bluetooth:
Bluetooth 5.3 with dedicated antenna
Steam Controller Support:
Built-in 2.4GHz wireless adapter

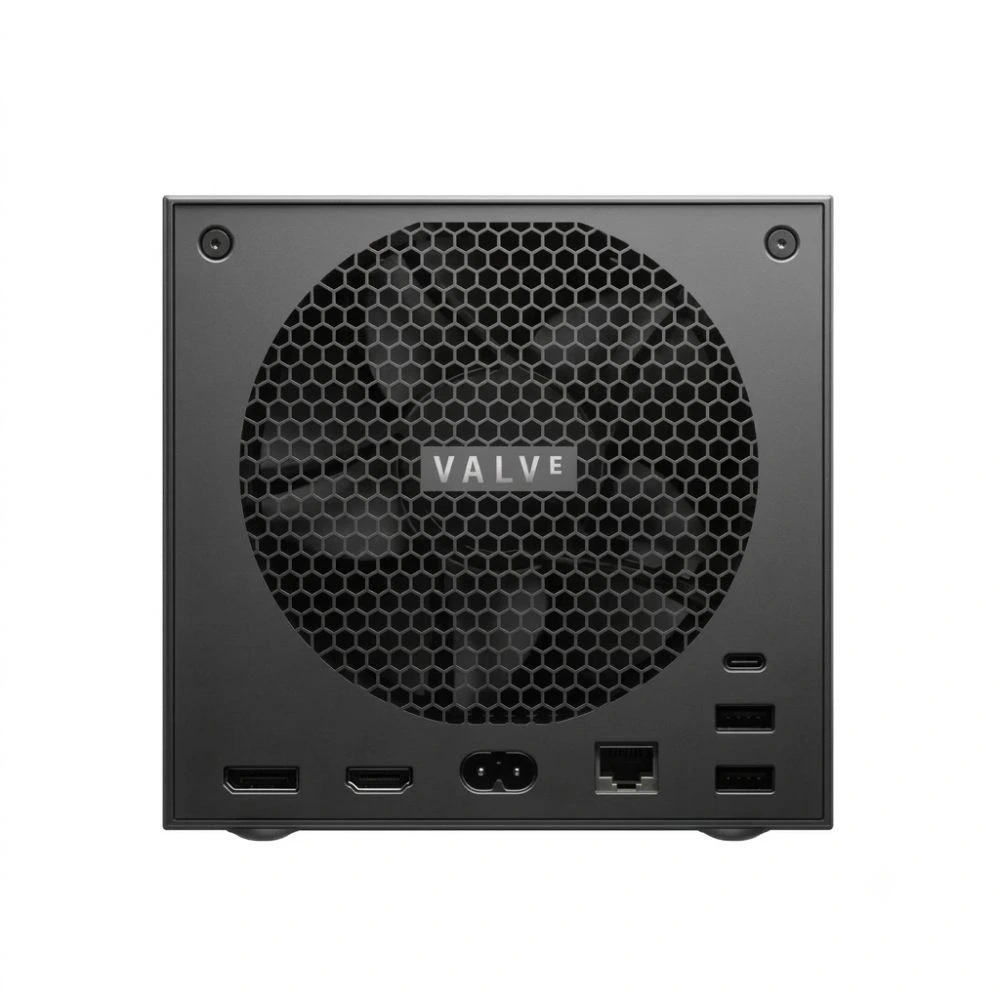

Ports & I/O
Display Output:
DisplayPort 1.4
- Supports up to 4K at 240Hz or 8K at 60Hz
- HDR support
- AMD FreeSync support
- Daisy-chain support
HDMI 2.0
- Supports up to 4K at 120Hz
- HDR support
- AMD FreeSync support
- CEC support
USB Ports:
- 2 × USB-A 3.2 Gen 1 (Front)
- 2 × USB-A 2.0 High Speed (Rear)
- 1 × USB-C 3.2 Gen 2 (Rear)
Networking:
Gigabit Ethernet
Lighting:
17 individually addressable RGB LEDs for system status and customization
Size & Weight
Dimensions:
152mm Height (148mm without feet)
162.4mm Depth
156mm Width
Weight:
2.6 kg
Software
Operating System:
SteamOS 3 (Arch-based)
Desktop Environment:
KDE Plasma
Steam Controller
Advanced Control for Every Game
Steam Controller is designed for maximum flexibility, offering precise controls and full customization through Steam Input. With advanced sensors, haptic feedback, and multiple programmable inputs, it provides a personalized gaming experience across your Steam Library.

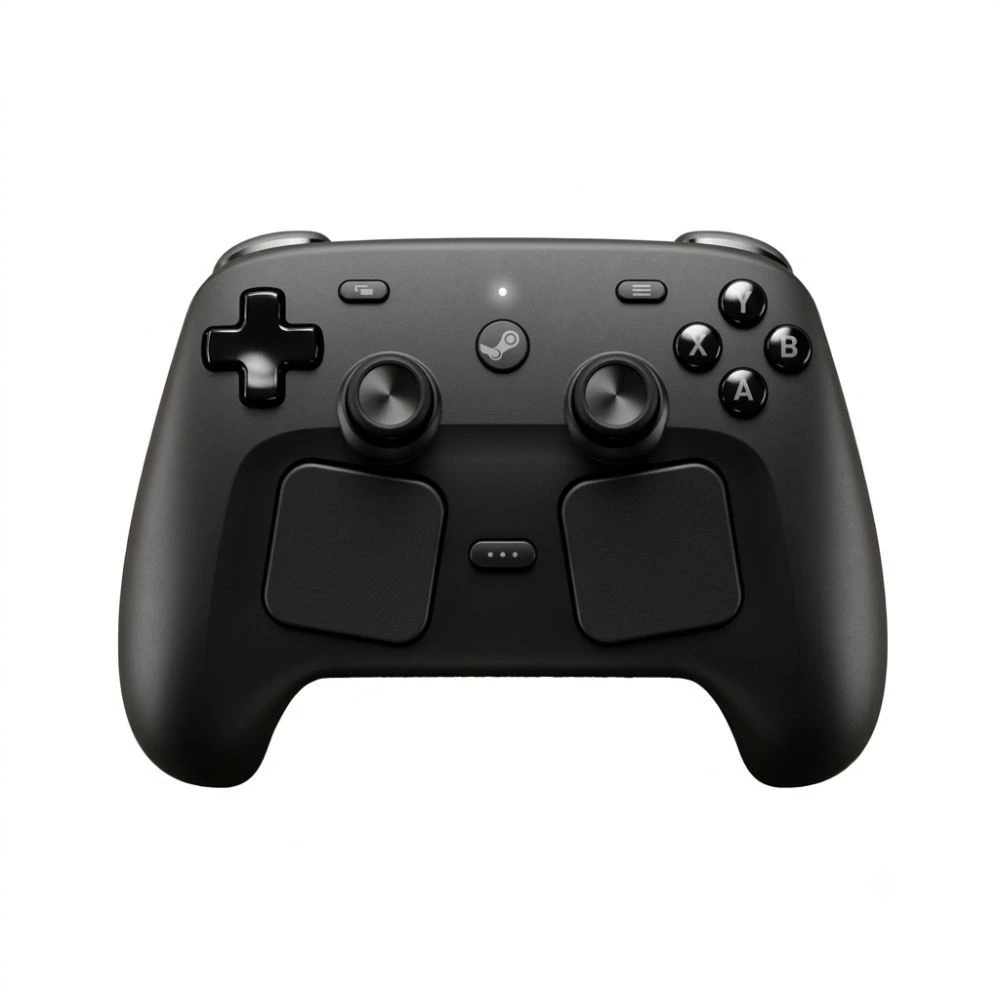

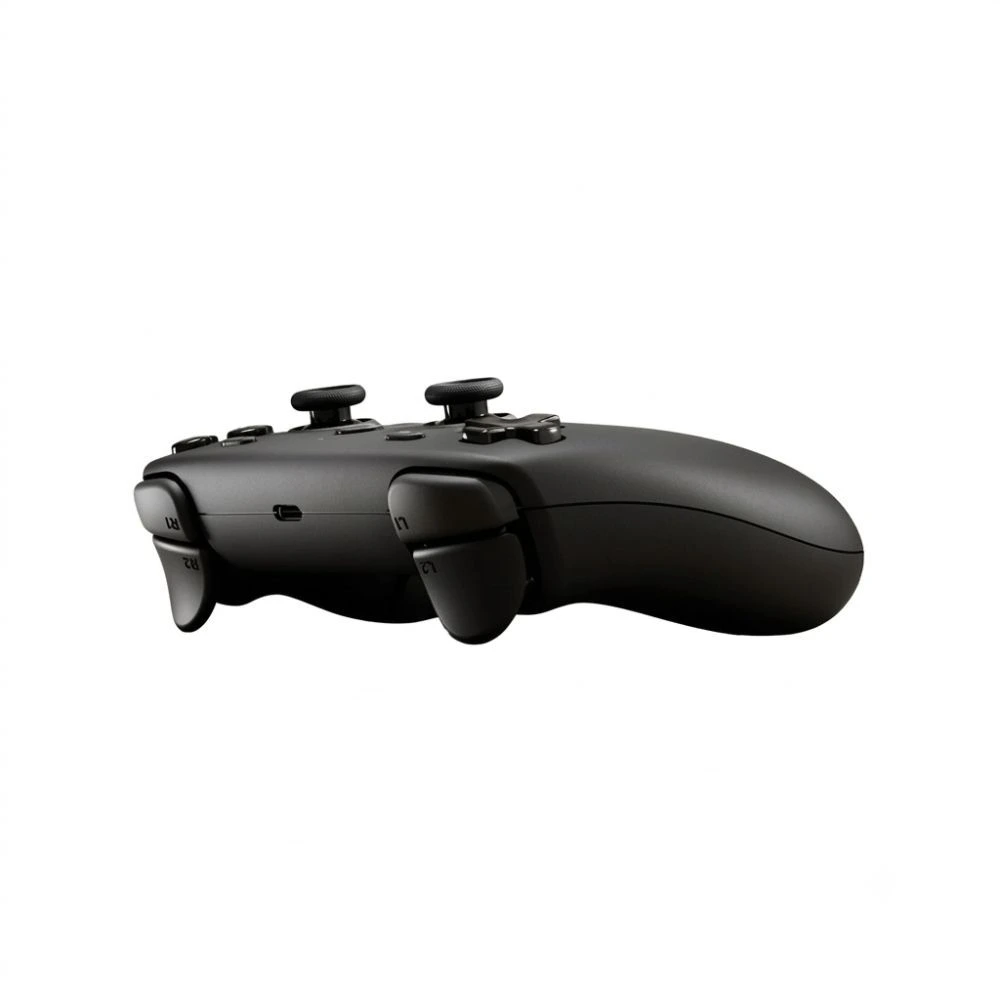

Steam Controller Specifications
Controls & Input
- A / B / X / Y buttons
- D-pad
- L & R analog triggers
- L & R bumpers
- View & Menu buttons
- Steam & QAM buttons
- 4 programmable grip buttons
Thumbsticks:
2 × Full-size magnetic TMR thumbsticks with capacitive touch
Trackpads:
2 × 34.5mm square haptic trackpads
- Pressure-sensitive click support
- Adjustable click strength
Gyro:
6-axis IMU sensor
Grip Sense:
2 × Capacitive grip areas on controller handles
Haptic Feedback
- 4 × Haptic motors
- 2 × LRA motors in trackpads for HD tactile feedback
- 2 × High-output LRA motors in grips for enhanced vibration and game feedback
Connectivity
Steam Controller Puck:
- 2.4GHz wireless connection
- Approx. 8ms full end-to-end latency
- 4ms polling rate (measured at 5m)
- Supports up to 4 Steam Controllers per puck
- USB-C connection to PC
Bluetooth:
Bluetooth 4.2 minimum
Bluetooth 5.0 or higher recommended
USB:
USB-C wired gameplay support
Power
Charging:
- Steam Controller Puck charging interface
- USB-C connector
Battery:
- 8.39Wh Li-ion battery
- Up to 35+ hours of gameplay*
Size & Weight
Steam Controller Dimensions:
111mm × 159mm × 57mm
Steam Controller Weight:
292g
Steam Controller Puck Dimensions:
50mm × 28mm × 9mm
Steam Controller Puck Weight:
16g
Specifications may change before official availability.
