Tech Specs
General
- Enclosure Type: Mid-tower
- Motherboard Support: E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX
- Rear-Connecting Motherboard Support: Yes (ATX)
- Power Supply Type: ATX
- Materials: SGCC steel, clear tempered glass (white), tinted tempered glass (black)
Dimensions

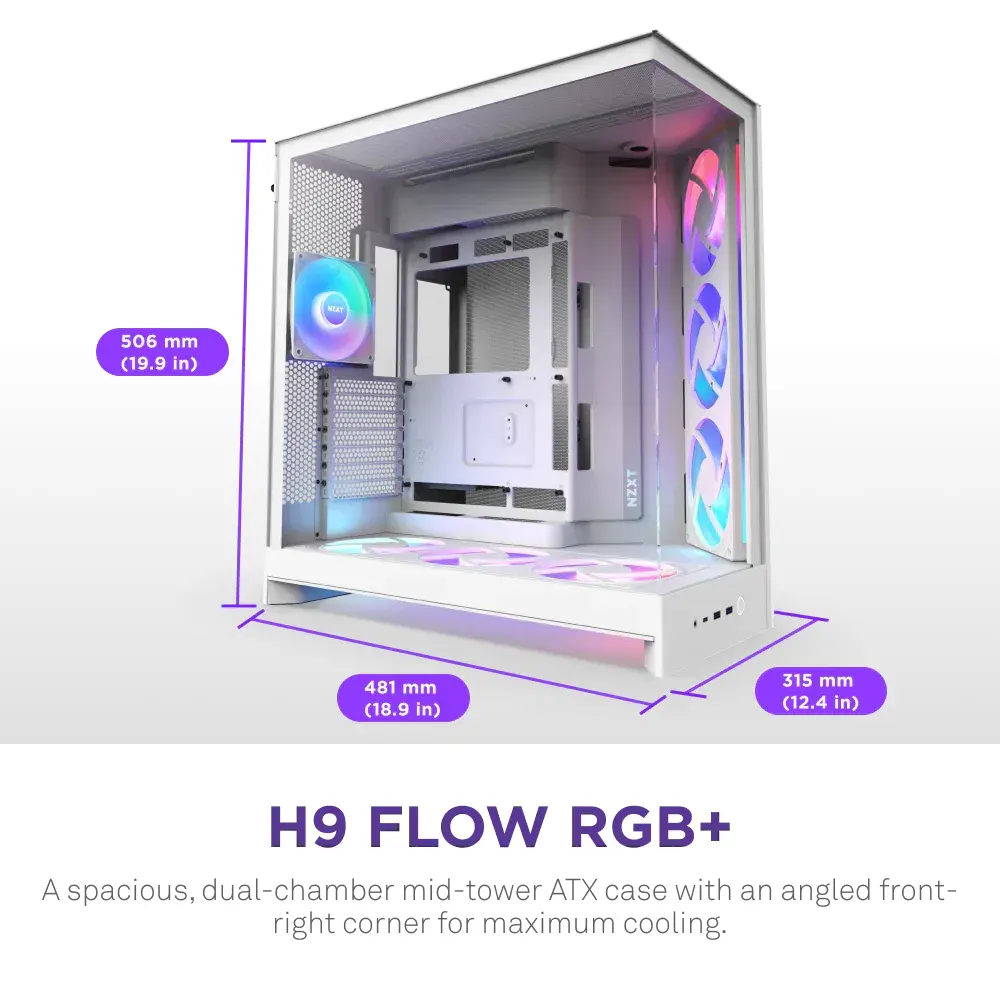

- Dimensions (H x W x D): 506 x 315 x 481 mm (19.9 x 12.4 x 18.9 in)
- Volume: 76.7 L
- Weight: 13.29 kg (29.3 lb)
Clearance
- CPU Cooler Height: 165 mm (6.5 in)
- GPU Length: Up to 459 mm (with <56 mm thickness fans installed at the front-right), Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)
- PSU Length: 200 mm (7.9 in)
- Top Radiator + Fan Thickness: Up to 80 mm (360 mm), Up to 62 mm (420 mm)
Front I/O
- USB 3.2 Type-A: 2
- USB 3.2 Gen 2×2 Type-C: 1
- Headset Jack: 1
Expansion & Drives
- Expansion Slots: 7
- 2.5″ Drive Bays: 4+2
- 3.5″ Drive Bays: 2
Cooling Support
- Front-Right Fans: 3 x 120 mm / 3 x 140 mm (1 included)
- Top Fans: 3 x 120 mm / 3 x 140 mm
- Bottom Fans: 3 x 120 mm / 3 x 140 mm (1 included)
- Rear Fan: 1 x 120 mm (1 included)
- Front-Right Radiator: Up to 420 mm
- Top Radiator: Up to 420 mm
- Bottom Radiator: Up to 360 mm
- Rear Radiator: Up to 120 mm

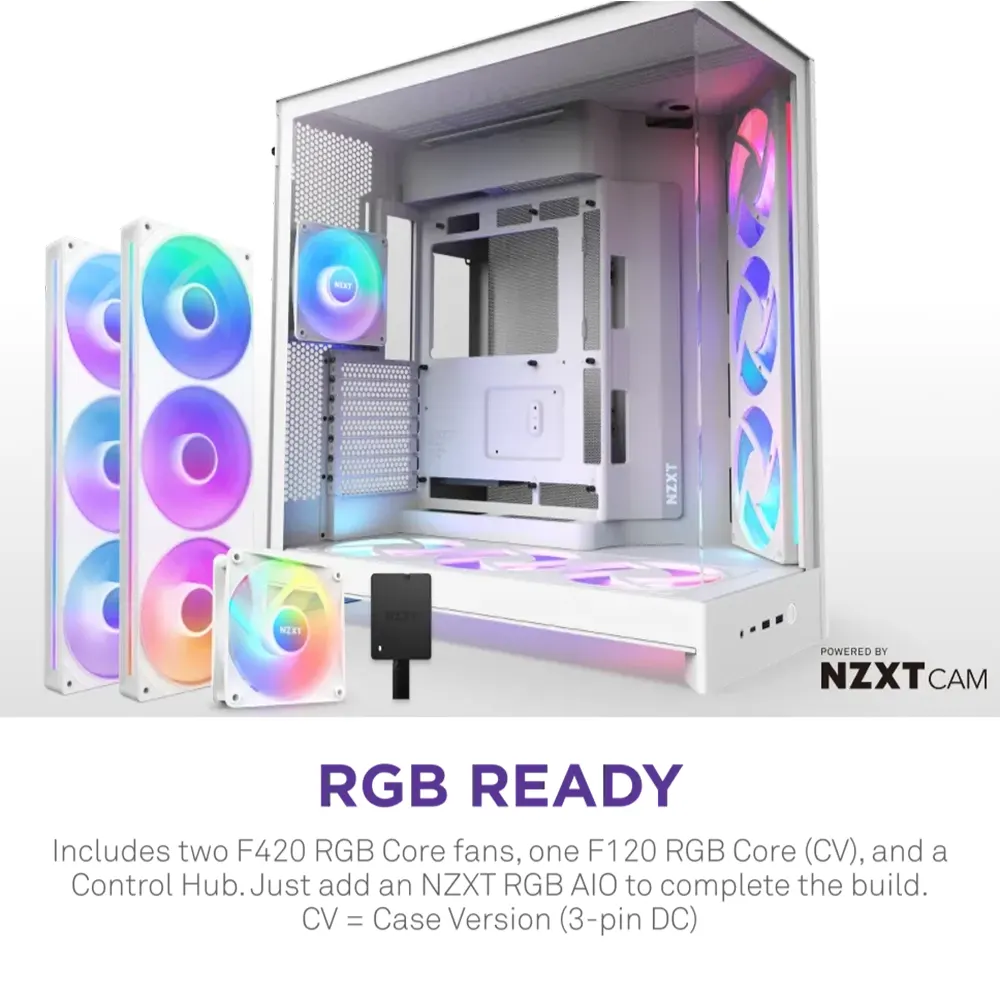

Included Fan Specs
- Model: F420 RGB Core / F120 RGB Core (Case Version)
- Quantity: 2 / 1
- Speed: 2,000 ± 200 RPM / 1,300 ± 130 RPM
- Airflow: 98.61 CFM / 55.17 CFM
- Static Pressure: 3.2 mmH₂O / 1.27 mmH₂O
- Noise Level: 34.5 dBA / 26.1 dBA
- Fan Connector: 8-pin / 3-pin
Control Hub
- Fan Channels: 3 x NZXT 8-pin (PWM only) / 1 x NZXT 8-pin (DC+PWM control) / 1 x 4-pin PWM (DC+PWM control)
- RGB Channels: 4 x NZXT 8-pin / 1 x NZXT RGB
- Max LED Support: Each NZXT 8-pin channel supports a maximum of 96 LEDs. NZXT RGB channel supports up to 40 LEDs and up to NZXT 5 devices.
System Requirements
- USB 2.0 Internal Header
- 8-pin PCIe Power
