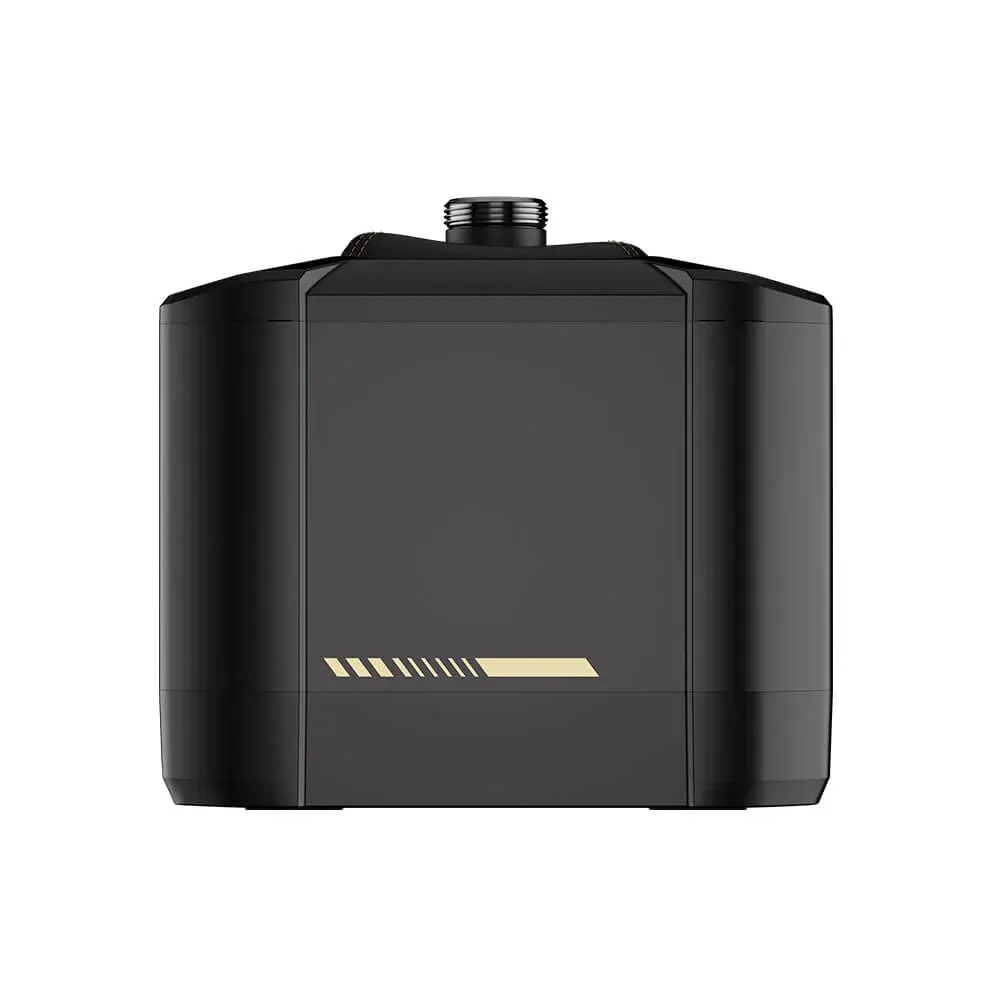

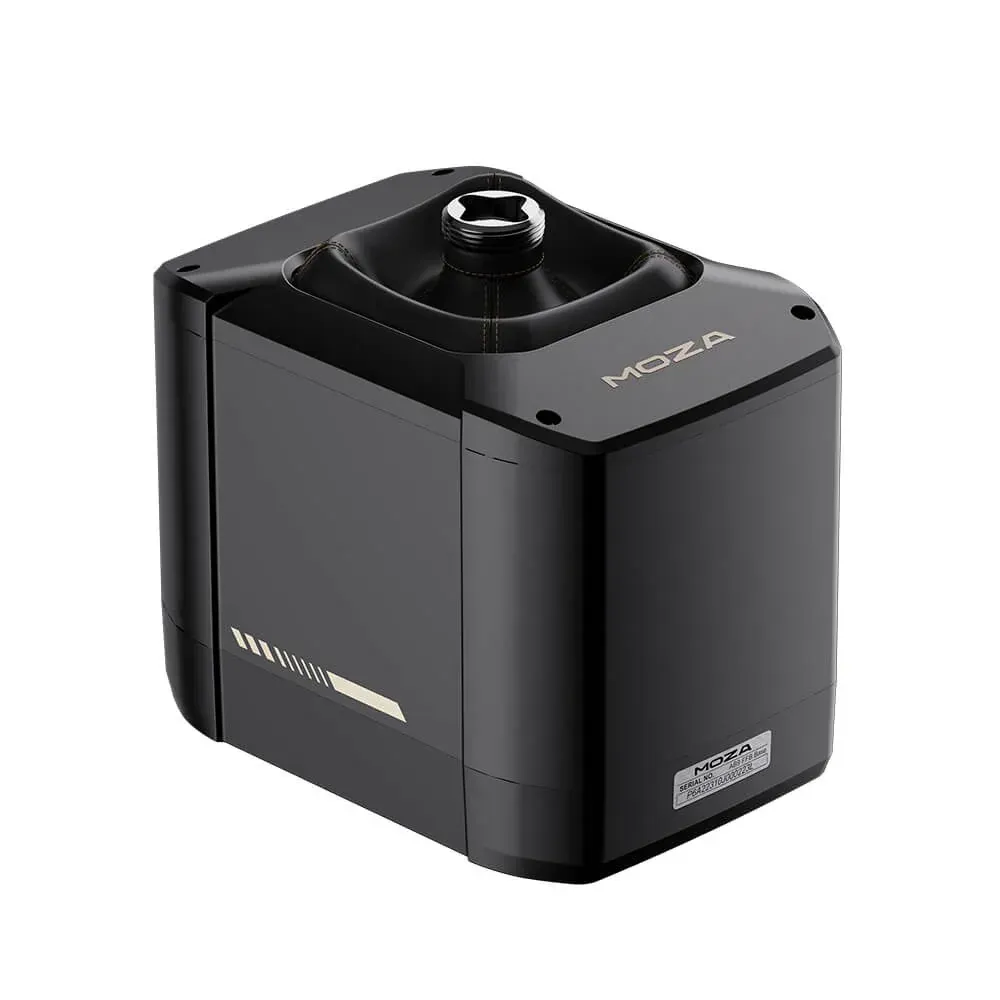

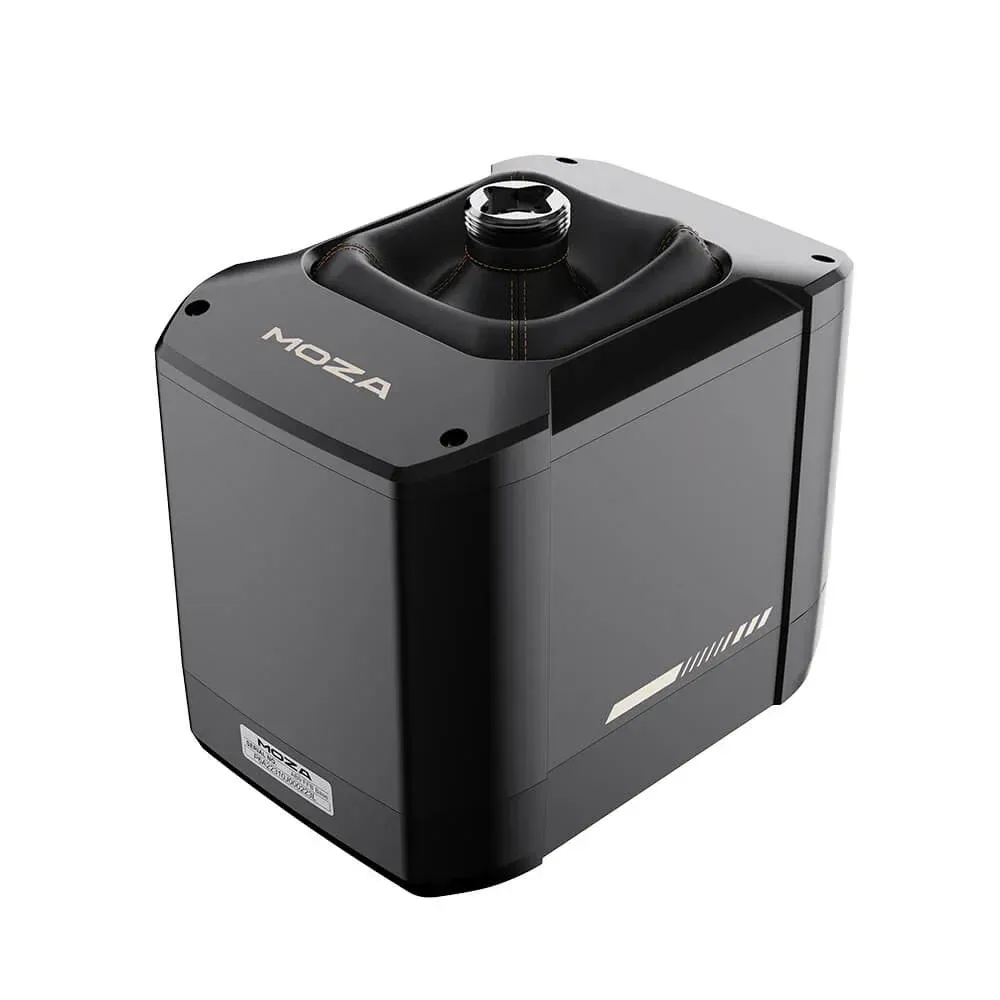

MOZA AB9 Force Feedback Base

The MOZA AB9 Base is equipped with dual servo motors delivering a peak torque of 12Nm, offering precise, dynamic feedback that simulates various flight conditions such as taxiing, takeoff, landing, and turbulence. Featuring our proprietary MCLS Force Feedback Technology and high-resolution encoder, it provides an exceptionally accurate and immersive flight experience. Constructed from aviation-grade aluminum alloy with a quiet, fanless design, it ensures durability and seamless operation. The MOZA Cockpit Control Software allows comprehensive customization and fine-tuning of settings. Compatible with leading flight simulation games and supporting third-party flight sticks, the AB9 Base is designed for versatility and reliability, making it perfect for enthusiasts and professional trainers.

SPECIFICATIONS

MOZA AB9 FFB Base

• Supported Platform: PC

• Maximum Limit Angle: ±20°

• Main Body Material: Aviation-Grade Aluminum Alloy

• Peak Torque: 12N·m

• Rated Voltage: 110V～220V AC > 36V DC

• Rated Current: 6A

• Rated Power: 216W

• USB Refresh Rate: 1000Hz

• Base Indicator Light: Supports Displaying Base Status

• Connection Ports: Power, Data, Throttle, Rudder Pedals, etc.

• Installation Method: Desktop or Rig

• Desktop Clamp: Optional

Dimensions:

• Height: 204.5 mm
• Width: 227.9 mm
• Depth: 157 mm

Mounting & Installation Specs

• Mounting Pattern Width Spacings: 54 mm / 60 mm / 69 mm
• Mounting Pattern Length Spacings: 60 mm / 82 mm / 111 mm

Threaded Socket Sizes:

• 8 × M4 threads (Depth: 5.5 mm)
• 4 × M6 threads (Depth: 7 mm)

WHAT’S INBOX

• MOZA AB9 FFB Base * 1

• Data Cord

• Wrench

• User Manual
