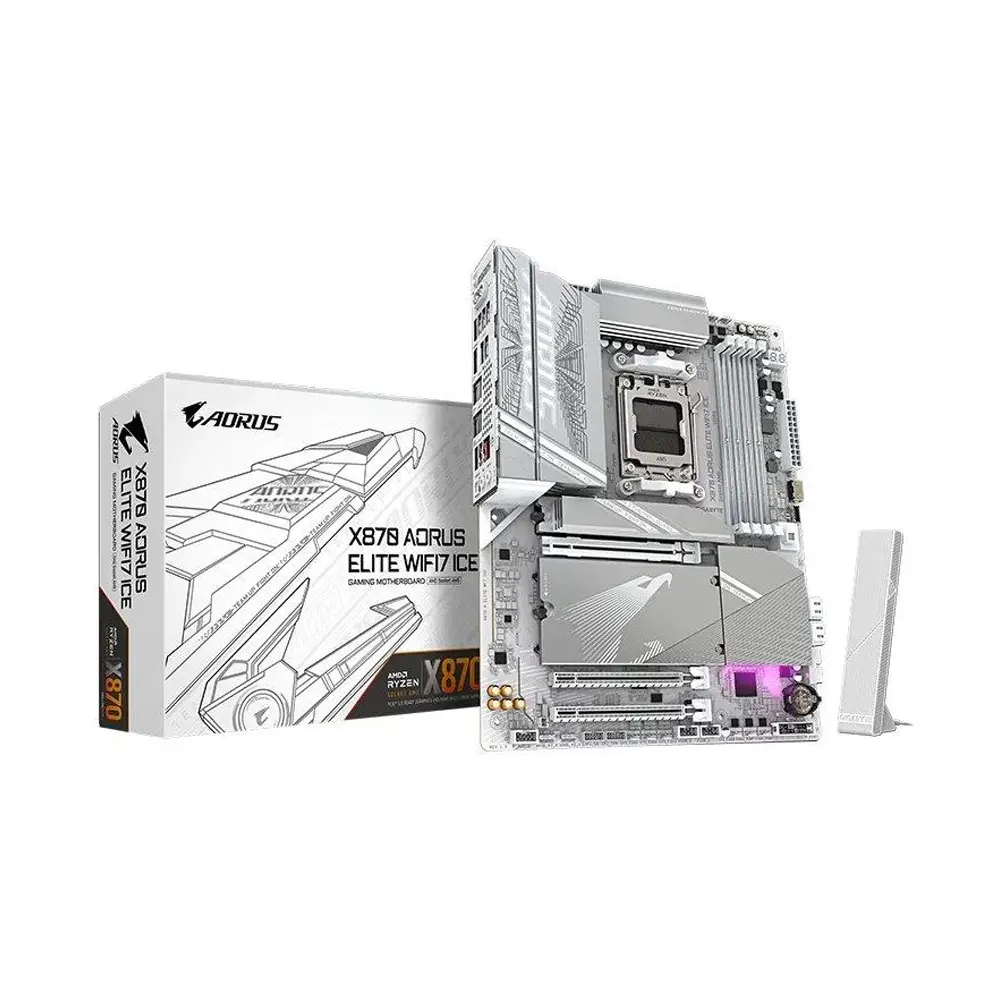

GIGABYTE X870 AORUS ELITE WIFI7 ICE (Rev 1.1) AMD AM5 ATX DDR5 Motherboard

GIGABYTE X870 AORUS ELITE WIFI7 ICE (Rev 1.1) AMD AM5 ATX DDR5 Motherboard

Dominate next-gen gaming and creator workflows with the GIGABYTE X870 AORUS ELITE WIFI7 ICE (Rev 1.1). Featuring a stunning, premium all-white PCB aesthetic alongside reinforced ice-white heatsinks, this ATX powerhouse is explicitly built for high-performance white themed builds. Anchored by the AMD AM5 socket, it delivers out-of-the-box optimization for AMD Ryzen™ 9000, 8000, and 7000 Series processors.

The Rev 1.1 platform pairs a robust Twin Digital 16+2+2 Phase VRM power delivery system with cutting-edge connectivity, including dual USB4® Type-C ports and lightning-fast Wi-Fi 7 integration, making it future-proof for elite overclocking and high-bandwidth components.

Key Features

• Flagship AMD AM5 & X870 Platform: Fully optimized to extract maximum IPC performance from AMD Ryzen™ 9000 series processors down to 7000 series chips.

• Twin 16+2+2 Phase Digital VRM: Engineered with a robust parallel power design utilizing 60A DrMOS phases to guarantee rock-solid voltage stability under extreme gaming or intense multi-threaded workloads.

• Elite DDR5 Overclocking (Up to 8200+ MT/s): Supports up to 256GB of dual-channel memory across 4 DIMM slots. Features native AMD EXPO™ and Intel® XMP structural profiles for quick, stable memory optimization.

• Next-Gen PCIe 5.0 UD Slot X: Features a heavily reinforced graphics card slot providing 10X load-bearing capacity to safely secure today’s heaviest high-end triple-slot GPUs while preventing PCB flex.

• Massive M.2 Storage Configuration: Accommodates 4 onboard M.2 slots, including 3 PCIe 5.0 x4 lanes for elite NVMe SSD read/write speeds, all kept frosty under extra-thick M.2 Thermal Guard layers.

• Dual Blazing-Fast USB4® Type-C: Outfitted on the rear I/O to deliver up to 40Gb/s bidirectional transfer rates with DisplayPort Alternate mode support for high-refresh 4K display configurations.

• Wi-Fi 7 Wireless & 2.5GbE Network Architecture: Harnesses true Wi-Fi 7 performance via ultra-wide 160MHz channels, Multi-Link Operation (MLO), and a high-gain directional white antenna alongside a 2.5 Gigabit Ethernet port for lag-free gaming.

• Pure White Ice Aesthetics: Extends the white design language from the front trace lines right down to a premium 6-layer mid-loss white PCB layer, white fan headers, and ice-silver thermal armor shrouds.

• EZ-DIY Friendly Enhancements: Built to simplify the building process with an M.2 EZ-Latch system for tool-free SSD swaps, a PCIe EZ-Latch for easy GPU releases, and a dedicated Q-Flash Plus button for BIOS updates via USB without a CPU installed.

Technical Specifications

• Brand / Series: GIGABYTE AORUS

• Model Name: X870 AORUS ELITE WIFI7 ICE (Rev. 1.1)

• Product Model Part Number: X870AELITEWF7CE

• Barcode (UPC/EAN): 889523045176

• Form Factor: ATX (30.5cm x 24.4cm)

• CPU Socket Support: AMD Socket AM5

• Chipset: AMD X870

• Memory Slots: 4 x DDR5 DIMM (Dual Channel, Supports up to 256GB, EXPO/XMP)

• Expansion Slots:

  • 1 x PCIe 5.0 x16 running at x16 (UD Slot X)

  • 1 x PCIe 4.0 x16 running at x4

  • 1 x PCIe 3.0 x16 running at x2

• Storage Interfaces:

  • 3 x M.2 PCIe 5.0 x4 NVMe slots

  • 1 x M.2 PCIe 4.0 x4 NVMe slot

  • 4 x SATA 6Gb/s ports

• Rear Networking: Realtek® Wi-Fi 7 RTL8922AE (Rev 1.1) + Bluetooth 5.4 | Realtek® 2.5GbE LAN

• Audio: Realtek® ALC1220 HD Audio Codec with Optical S/PDIF out

• Rear I/O Connectivity: 2 x USB4® Type-C®, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 1 x HDMI 2.1, 2 x Antenna Ports, 2 x Audio Jacks
