Product Overview
The Elgato Wave XLR Pro USB-C Audio Interface provides a full feature set when recording for podcasts, streaming, gaming, and other audio applications. Two XLR female inputs provide up to 80 dB of gain and have 48V of power for phantom-powered condenser microphones. For headphones, two 1/4″ inputs and two 3.5mm outputs allow for four monitoring paths, while a 3.5mm line input and line output allow you to record and monitor your favorite hardware. Dual USB-C connections on the rear of the unit mean you can connect a second PC, console, or phone—a welcome solution when you need to record a backup.
Audio fidelity isn’t an issue with the Wave XLR Pro, thanks to the high-quality 24-bit, 48 kHz sample rate and Clipguard 2.0 technology that prevents the inputs from digitally overloading. The interface is compatible with Stream Deck control units and the free Wave Link application for advanced parameters, tactile control, setup integration, and running DSP and VST effects in one signal chain.
Key Features
- Two XLR female microphone inputs
- Up to 80 dB microphone gain
- 48V phantom power
- Stereo 3.5mm line input
- Stereo 3.5mm line output
- Four headphone outputs with 1/4″ and 3.5mm connections
- Dual USB-C connections for simultaneous control and recording with two devices
- 24-bit / 48 kHz audio
- Clipguard 2.0 technology
- Compatible with Stream Deck
- Compatible with Wave Link software

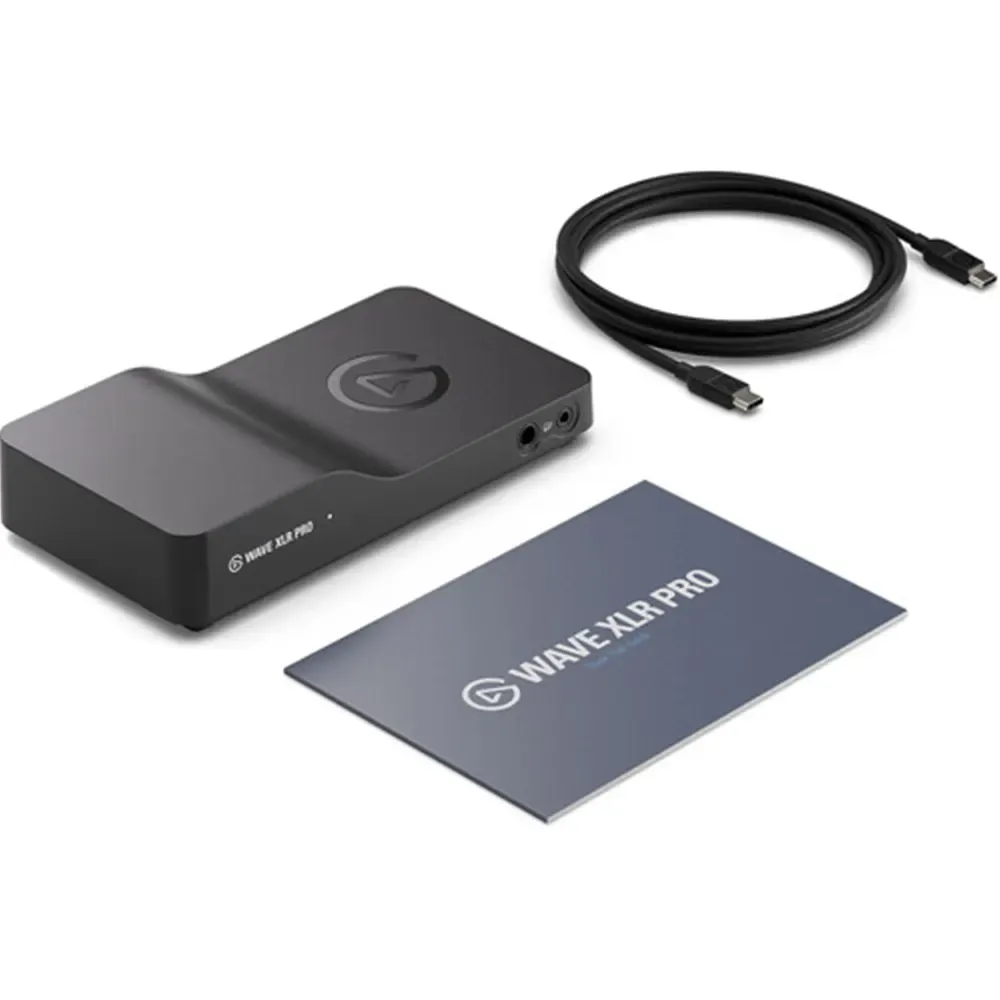

What’s in the Box
- Elgato Wave XLR Pro USB-C Audio Interface
- USB-C Cable (59″)
Specifications
- Frequency Response: 20 Hz to 20 kHz
- Maximum Input Level (Mic): 6 dBV
- Maximum Input Level (Line): 10 dBV
- Headphone Output Power (1/4″): 50 mW
- Headphone Output Power (3.5 mm): 50 mW
- Dynamic Range (Mic): 135 dB
- EIN (Mic): -130 dBV A-Weighted
- Sample Rate: 48 kHz
- Bit Depth: 24-Bit
- OS Compatibility: Windows 11 or later / macOS 14.2 or later
- Power Requirements: USB Bus Power
- Power Consumption: 5 VA
