Cooler Master StreamEnjin All-In-One Livestream Mixer

Video & Network Architecture

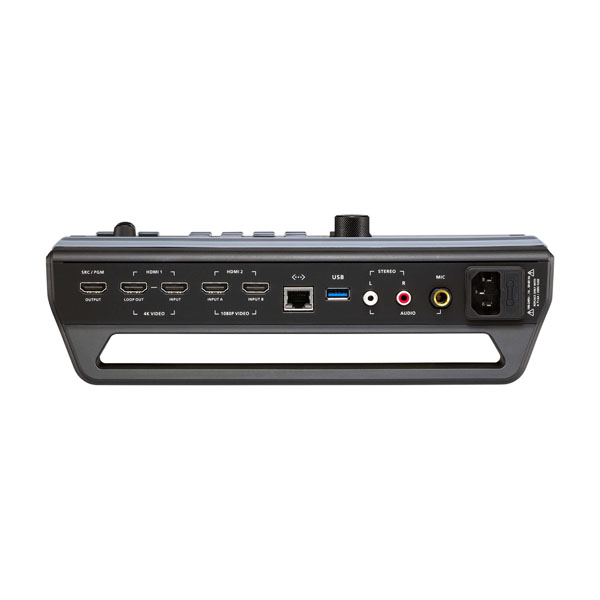

• Video Inputs: 3 total HDMI inputs.

  • 1 x 4K HDMI (supports 4K input/pass-through).

  • 2 x 1080p HDMI.

• Video Outputs: 2 x HDMI outputs for program monitoring and preview layouts.

• Direct Streaming: Integrated Gigabit Ethernet (GbE) LAN port for hardware-based streaming directly to major platforms without needing a secondary streaming PC. Supports broadcasting to up to 2 simultaneous platform destinations.

Audio Interface

• Audio Inputs:

  • 1 x RCA Stereo Line In (for external mixers, media players, or instruments).

  • 1 x 6.3mm (1/4″) TRS Microphone Jack.

• Audio Output: 1 x 3.5mm Line Out for local monitoring or audio routing.

Control & Software Integration

• Companion App Interface: Powered by a proprietary tablet app supporting iPadOS (iOS 11+) and Android Tablets (10+) to manage image/overlay editing, scene transitions, and real-time program previews.

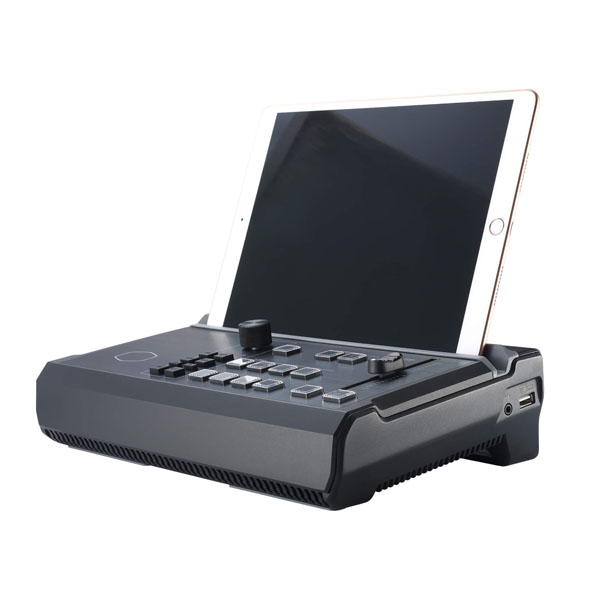

• Onboard Controls: Tactile physical console featuring a simple button layout for scene switching, audio mixing adjustments, a rotary encoder, and a manual scene transition slider.

• Storyboard Scene Management: Supports up to 8 preset scenes for rapid layout customization, picture-in-picture (PiP) templates, text insertion, and graphical overlay placement.

Hardware Data & Connectivity

• USB Ports: 1 x USB 3.2 port (supports direct stream recording to an external hard drive) and 1 x USB 2.0 port.

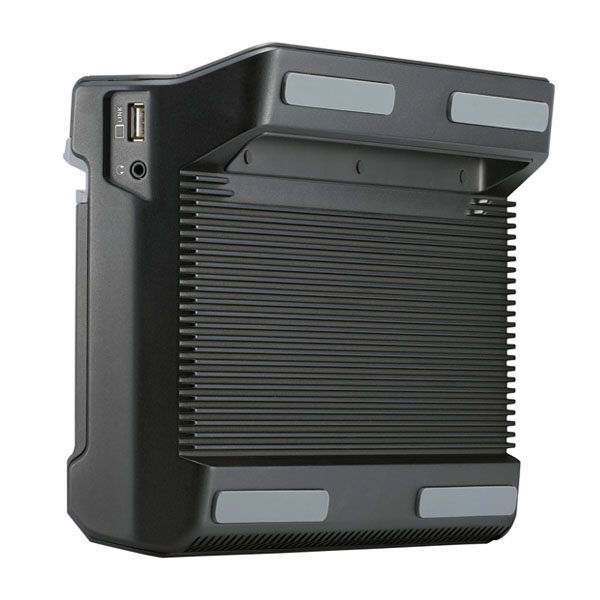

• Physical Build: Sturdy black metal chassis featuring an integrated handle-stand that serves as a carrying handle and a prop for the desktop unit.

• Dimensions: 28.85 x 18.99 x 9.66 cm (11.36 x 7.48 x 3.8 inches).

• Weight: 1.89 kg (4.16 lbs).

• Power Requirements: High-efficiency power draw pulling 12.9W at AC 110V (80 BTU) or 12.7W at AC 220V (79 BTU).
