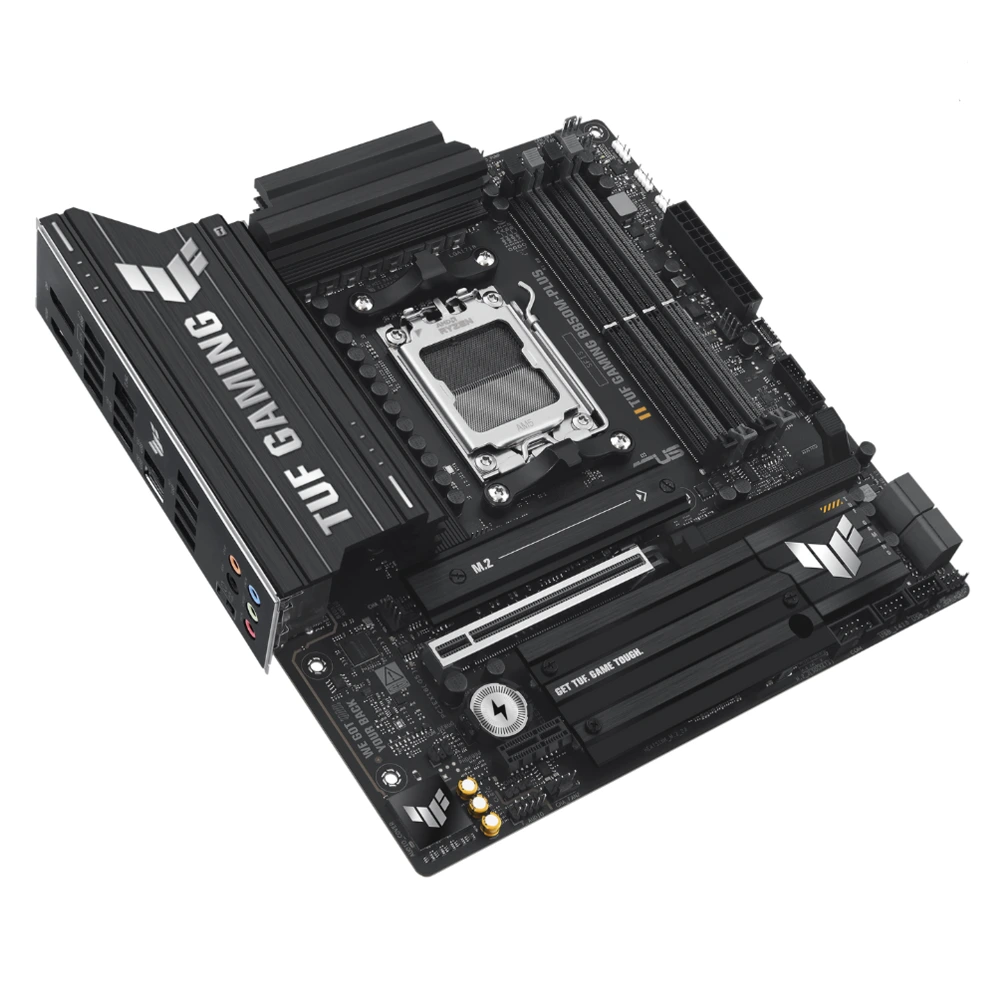

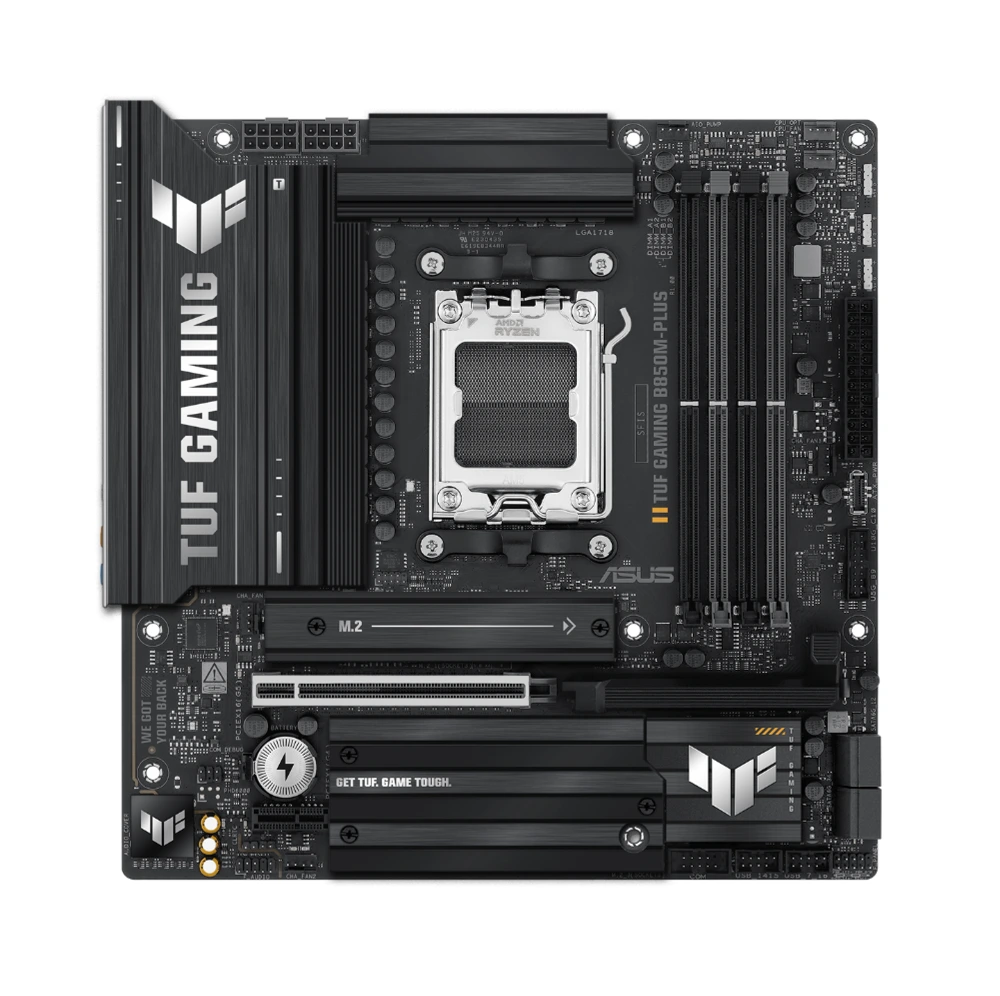

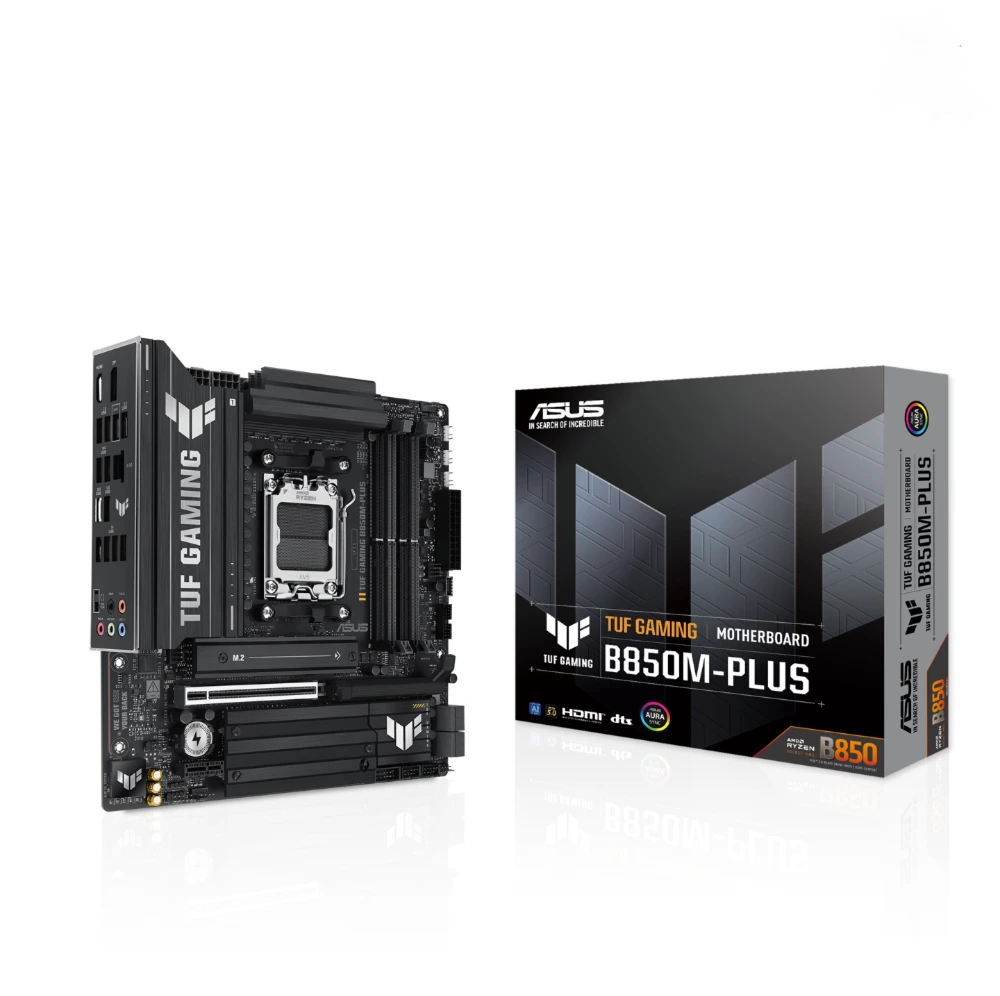

ASUS TUF GAMING B850M-PLUS – AMD AM5 DDR5 Micro-ATX Motherboard

Core Performance

• Model: TUF GAMING B850M-PLUS

• CPU Support: AMD Socket AM5 for Ryzen™ 9000, 8000, and 7000 Series Desktop Processors.

• Chipset: AMD B850.

Memory

• Capacity: 4 x DIMM slots, maximum 256GB, DDR5.

• Speed: Supports up to 8000+MT/s (OC).

• Features: Dual-channel architecture, ECC & Non-ECC Un-buffered support, AMD EXPO™, and ASUS Enhanced Memory Profile (AEMP).

Graphics & Expansion

• Display Output: * 1 x DisplayPort (supports up to 8K@30Hz).

  • 1 x HDMI™ (supports up to 4K@60Hz).

• PCIe Slots:

  • 1 x PCIe 5.0 x16 (with Ryzen™ 9000 & 7000).

  • 1 x PCIe 4.0 x16 (with Ryzen™ 8000).

  • 1 x PCIe 4.0 x1 (via Chipset).

Storage & RAID

• M.2 Slots: 3 x total slots (supports PCIe 5.0 and 4.0 depending on the processor).

• SATA: 4 x SATA 6Gb/s ports.

• RAID Support: RAID 0/1/5/10 (AMD RAIDXpert2 Technology).

Connectivity & Audio

• Networking: Realtek 2.5Gb Ethernet with TUF LANGuard.

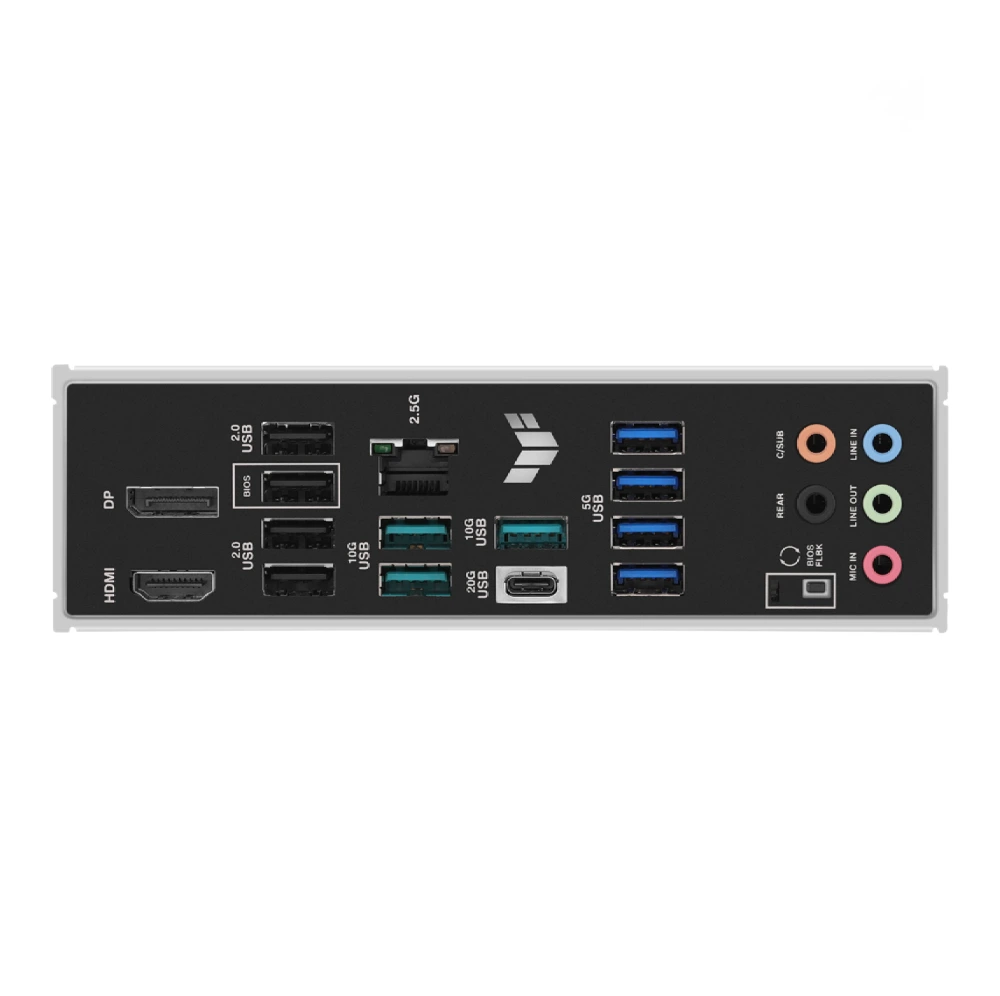

• Rear USB: 12 total ports (1 x 20Gbps Type-C, 3 x 10Gbps, 4 x 5Gbps, 4 x 2.0).

• Front USB: 7 total ports (1 x 10Gbps Type-C, plus headers for 5Gbps and 2.0).

• Audio: Realtek ALC1220P 7.1 Surround Sound High Definition CODEC with internal amplifier and 32-Bit/192 kHz playback.

Internal Headers

• Cooling: Headers for CPU Fan, CPU OPT Fan, AIO Pump, and 3 x Chassis Fans.

• Power: 1 x 24-pin Main connector and 2 x 8-pin +12V CPU connectors.

• Miscellaneous: 3 x Addressable Gen 2 headers, Clear CMOS, Chassis Intrusion, and COM Port headers.

Special Features

• TUF Protection: DIGI+ VRM, ESD Guards, Overvoltage protection, SafeSlot, and Stainless-steel back I/O.

• ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Dashboard, Q-DIMM, and Q-LED diagnostic lights.
