Specifications

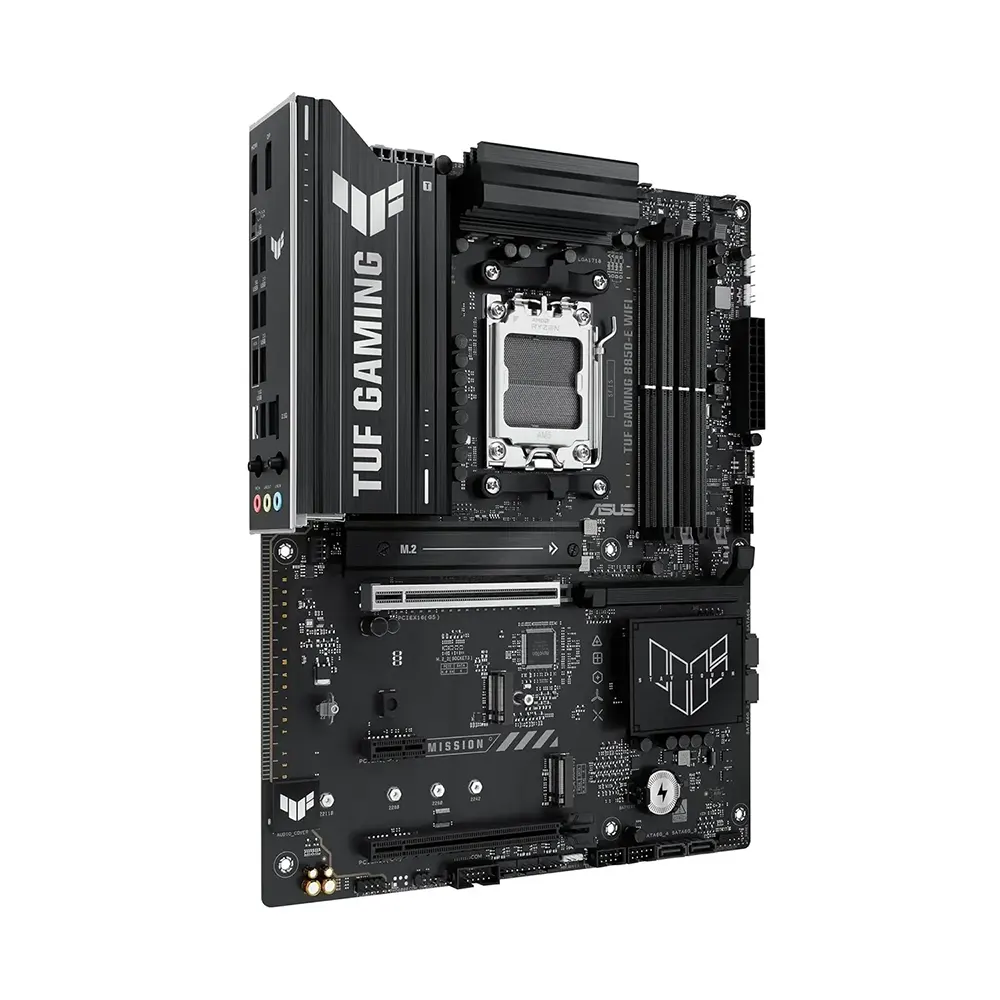

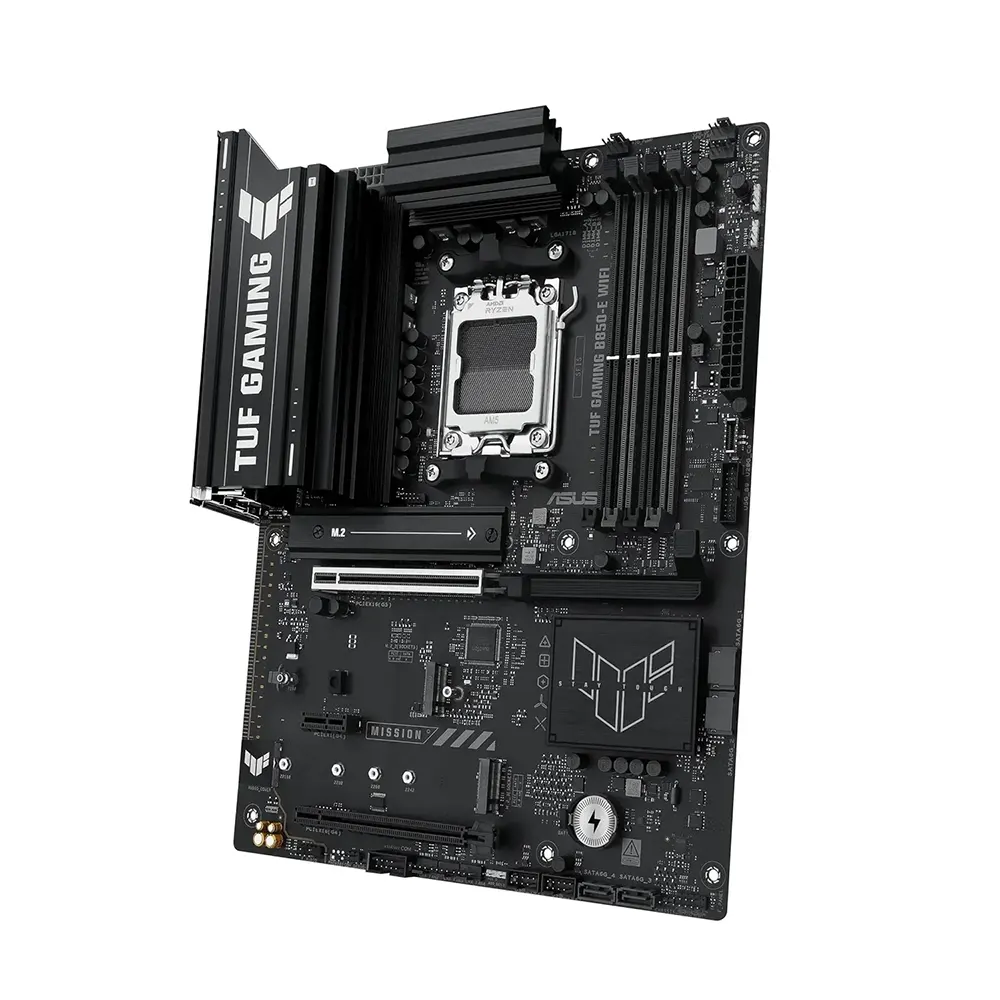

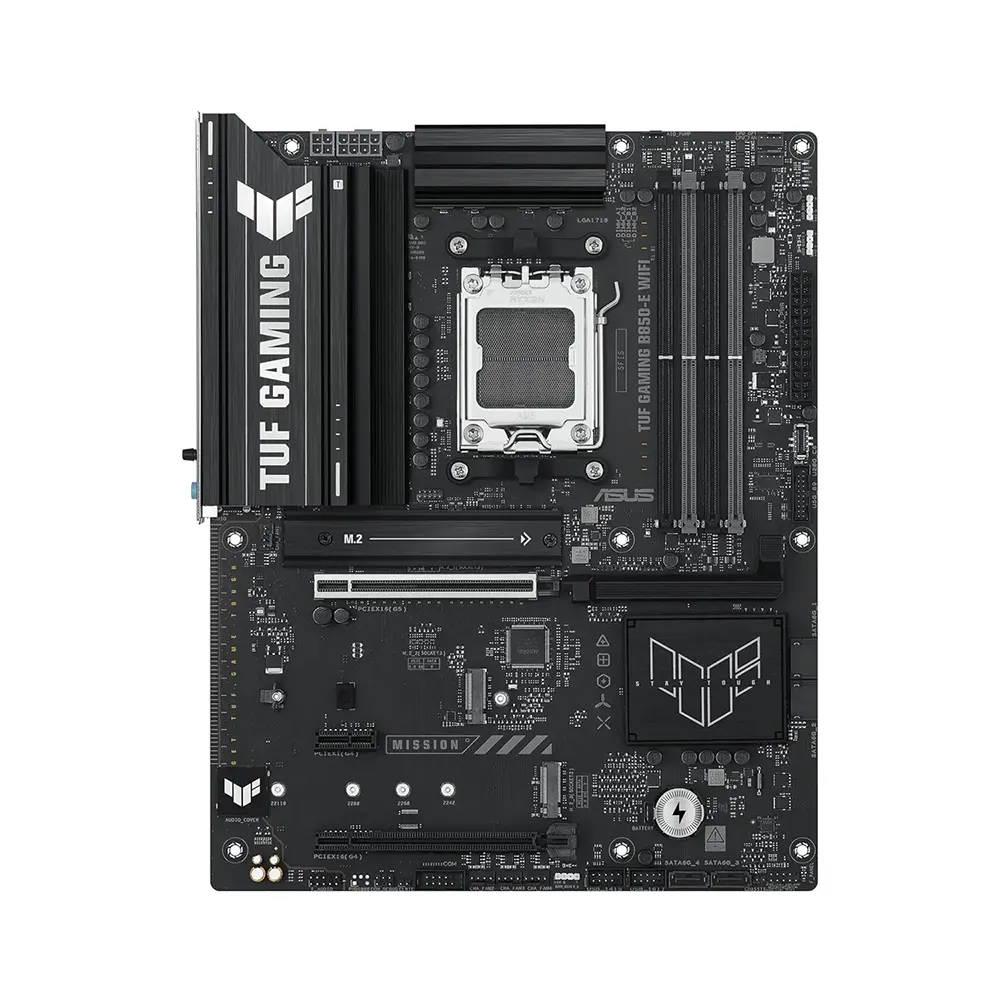

- Model No: ASUS TUF GAMING B850-E WIFI AMD AM5, ATX DDR5 Motherboard
- Part No: 90MB1L20-M0EAY0
- Chipset: AMD B850
- Form Factor: ATX
- Socket Compatibility: Socket AM5 (AMD Ryzen 7000 / 8000 / 9000 Series)

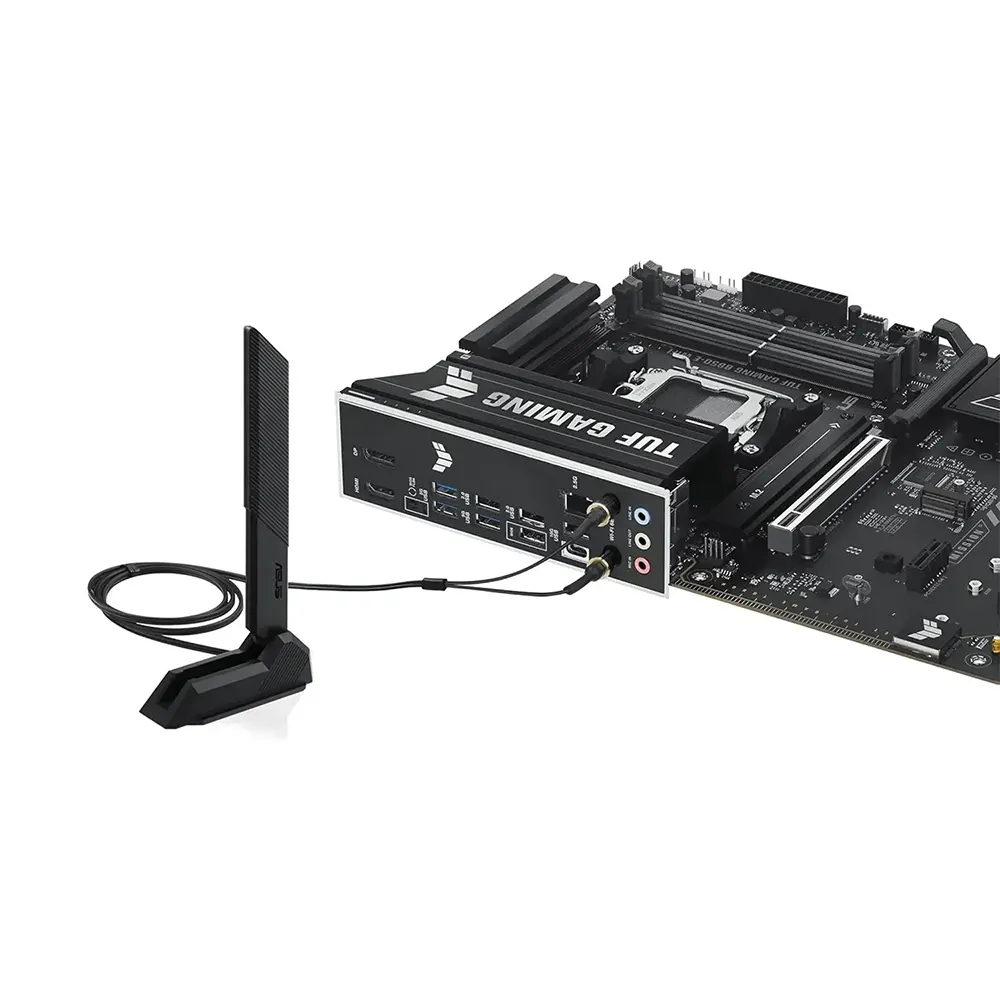

- Wireless & Bluetooth: Wi-Fi 6E (802.11ax), Bluetooth 5.3
- Lighting: Aura Sync RGB (Addressable RGB Gen 2 Headers)
- Memory Type: DDR5
- Memory Compatibility:
- 4 × DIMM slots
- Up to 256 GB
- Supports AMD EXPO / AEMP
- OC up to ~8000+ MT/s
- Storage Compatibility: 3 × M.2 slots (PCIe 5.0/4.0/4.0 support), 4 × SATA 6 Gb/s

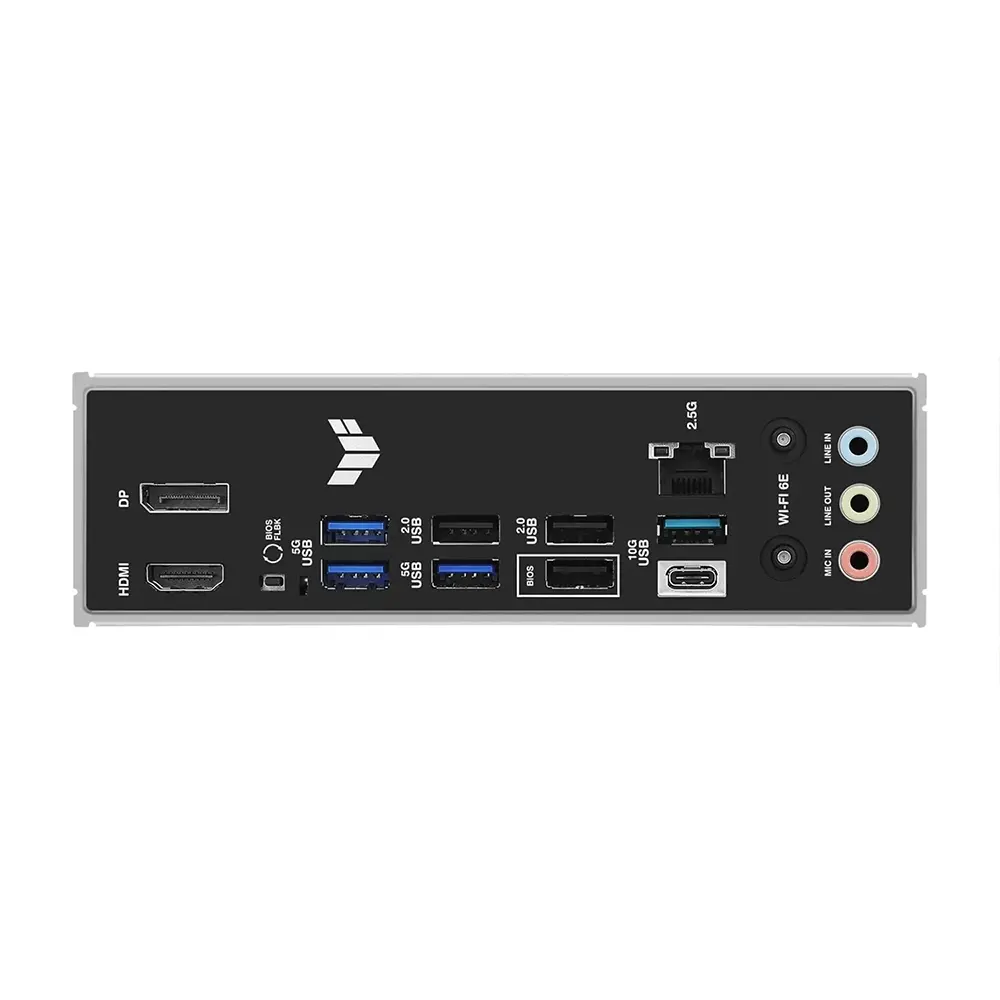

- Back Panel I/O Ports:
- 2 × USB 10 Gbps (1 × Type-A, 1 × Type-C)
- 3 × USB 5 Gbps
- 3 × USB 2.0
- 1 × HDMI
- 1 × DisplayPort
- Wi-Fi module
- Realtek 2.5 Gb Ethernet
- 3 × Audio jacks
- BIOS FlashBack button
- USB Ports Front (Support): 1 × USB 20 Gbps Type-C header, additional USB 5 Gbps & USB 2.0 headers
- Expansion Slots:
- 1 × PCIe 5.0 x16
- 1 × PCIe 4.0 x16 (x8/x4)
- 1 × PCIe 4.0 x1
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
- Internal I/O Connectors:
- CPU Fan
- CPU OPT Fan
- AIO Pump
- Chassis Fans
- USB headers
- RGB headers
- SATA
- Power connectors (24-pin, 8-pin +12V, 4-pin +12V)
- Special Features:
- ASUS TUF Protection (DIGI+ VRM, ESD Guards, SafeSlot, LANGuard)
- M.2 Q-Latch
- PCIe Q-Release
- Pre-mounted I/O Shield
- BIOS FlashBack
- Package Content:
- Motherboard
- Wi-Fi Antennas
- SATA Cables
- M.2 Screws
- User Manual
- Warranty Card
- Product Size ( Dimension ): 305 × 244 mm
- Product Weight (Approx.): – Standard ATX board weight
