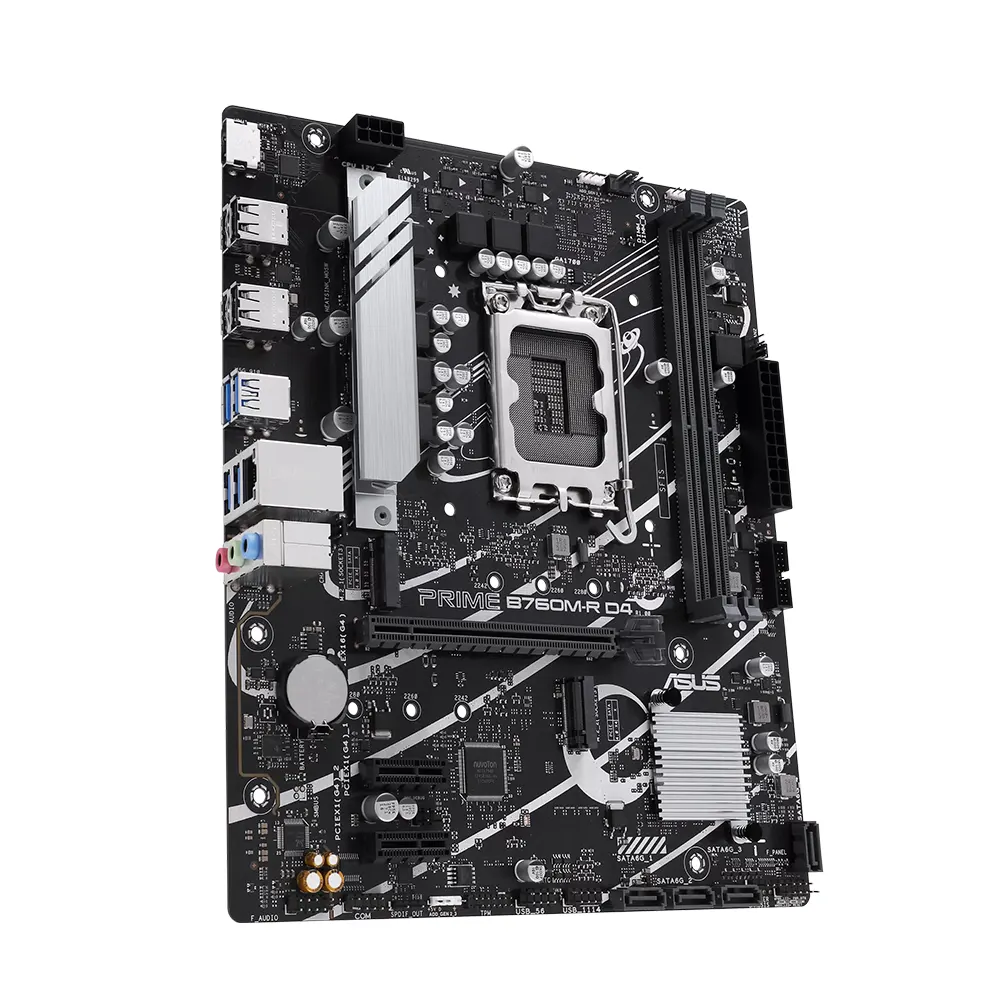

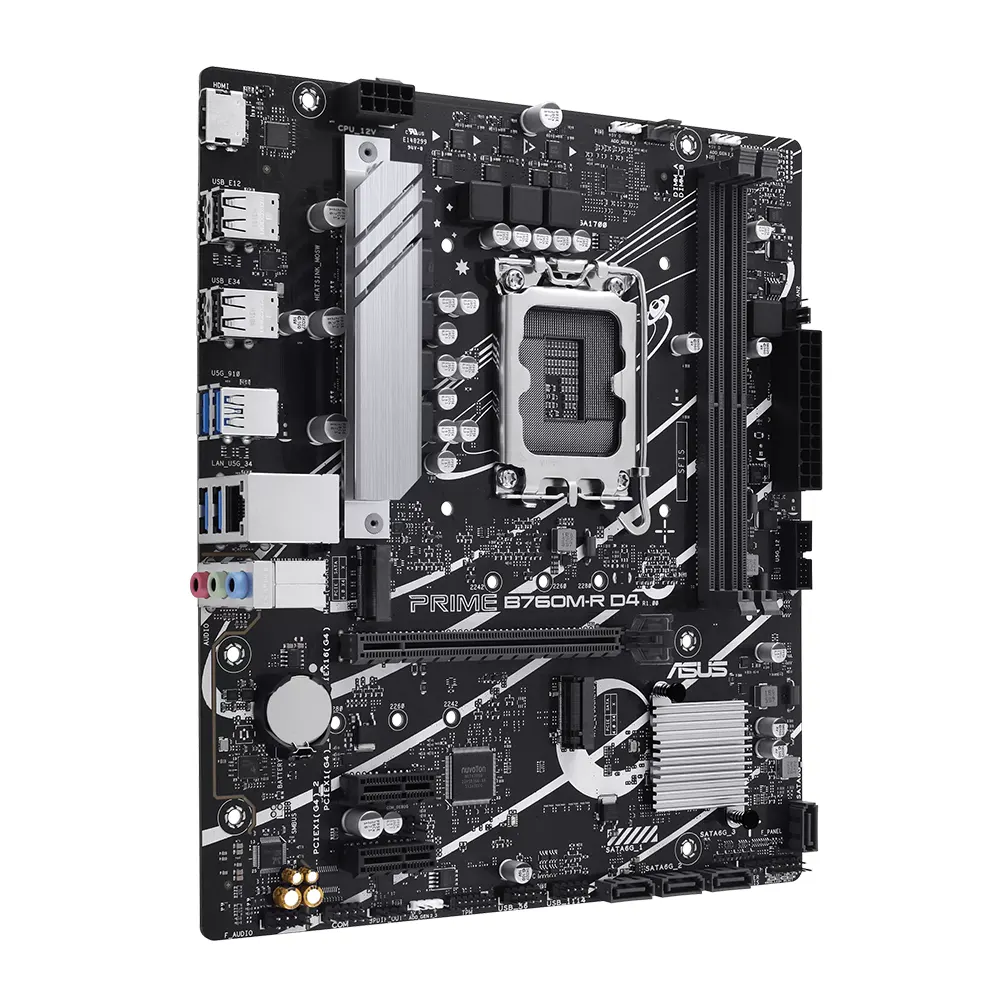

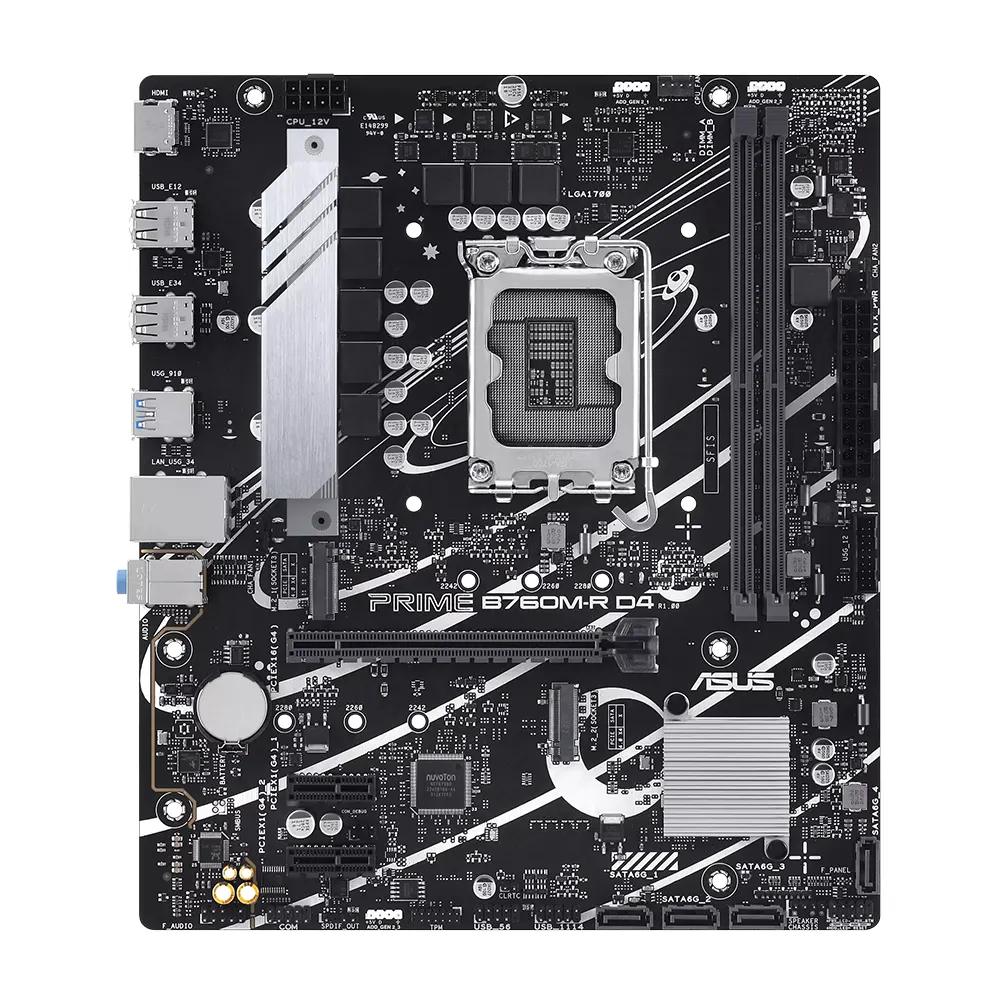

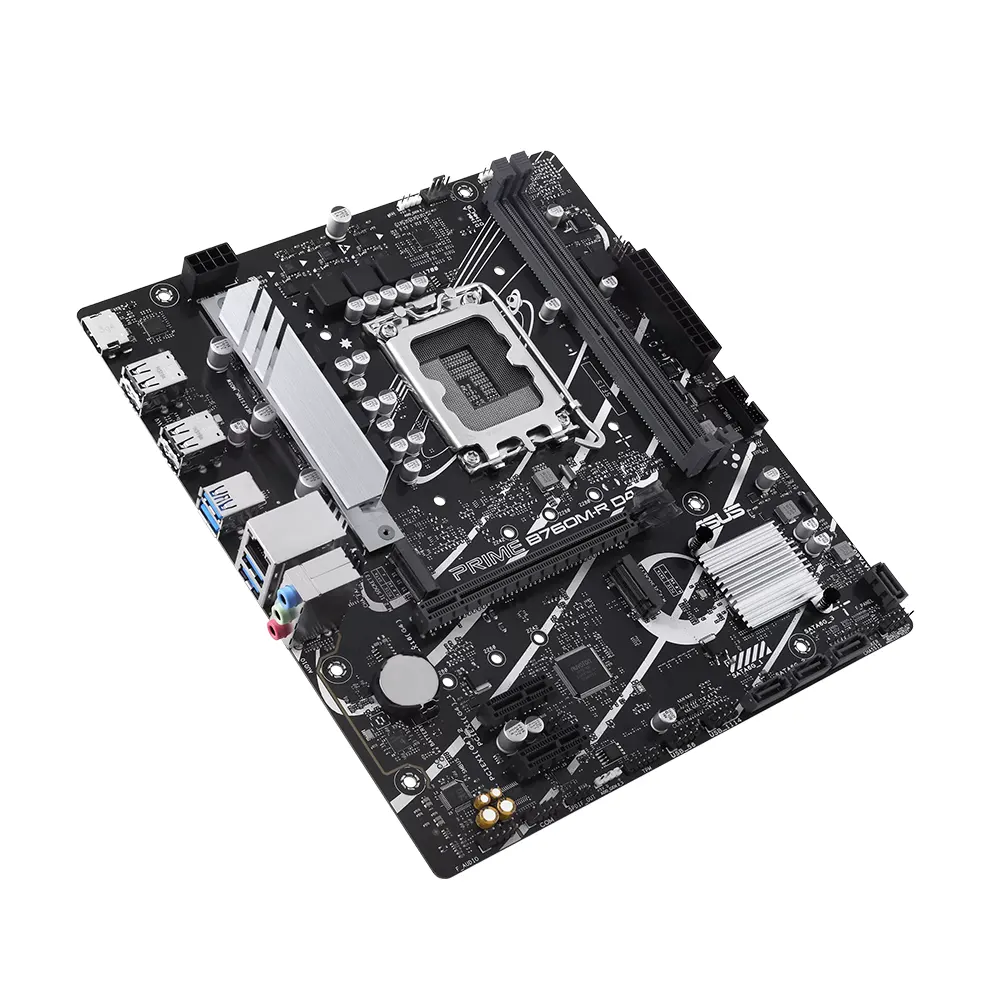

ASUS PRIME B760M-R D4 M0EAY0 Motherboard
Key Features
-
Next-Gen Processor Ecosystem: Outfitted with the Intel LGA 1700 socket to natively host 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors.
-
Dual PCIe 4.0 M.2 Storage Slots: Houses two separate M.2 slots operating on PCIe 4.0 x4 lanes. This eliminates data-transfer bottlenecks, serving up blistering read/write velocities for modern NVMe solid-state drives.
-
Upgraded 2.5Gb Ethernet Port: Steps past standard networking limits with a Realtek 2.5 Gigabit LAN controller, lowering latencies, reducing jitter, and elevating gaming ping or data server transfers.
-
Comprehensive Multi-Zone Cooling: Keeps thermals low under heavy compute cycles using an integrated VRM and PCH heatsink array, managed accurately via hybrid fan headers and the intuitive Fan Xpert 2+ intelligence utility.
-
Aura Sync RGB Customization: Includes onboard Addressable Gen 2 headers that easily synchronize your customized ambient LED strips or peripheral fan profiles across all compatible hardware components.
-
ASUS 5X Protection III Elements: Fortified with hardware guards including SafeSlot Core (which yields 1.6X stronger card retention), overvoltage circuit regulators, and a corrosion-resistant stainless-steel rear I/O shield for extended lifespan.
Technical Specifications
-
Brand: ASUS
-
Product Series: PRIME Series
-
Product Model Name: PRIME B760M-R D4
-
Manufacturer Part Number (MPN): 90MB1HA0-M0EAY0
-
Barcode (UPC): 197105423763
-
Chipset: Intel B760
-
CPU Socket: LGA 1700
-
Memory Configuration: 2 x DIMM Slots (Dual-Channel Architecture, Max 64GB DDR4 Capacity)
-
Memory Frequency Support: Up to 5333 MHz (Overclocked Modes) / 3200 MHz Native
-
Expansion Architecture:
-
1 x PCIe 4.0 x16 slot (Supports GPU configurations)
-
2 x PCIe 4.0 x1 slots (Expansion cards)
-
-
Storage Framework: 2 x M.2 (Key M, Type 2242/2260/2280 via PCIe 4.0 x4) + 4 x SATA 6Gb/s Ports
-
Rear I/O Matrix:
-
4 x USB 3.2 Gen 1 (5Gbps) Type-A
-
4 x USB 2.0 Type-A
-
1 x HDMIâ„¢ Port (Supports 4K @ 60Hz as specified in HDMI 2.1)
-
1 x Realtek 2.5Gb Ethernet Port
-
3 x High-Definition Audio Jacks
-
-
Onboard Audio Layout: Realtek 7.1 Surround Sound High Definition CODEC with dedicated audio PCB layers and premium Japanese audio capacitors
-
Supported Operating Systems: Windows 11, Windows 10 64-bit
