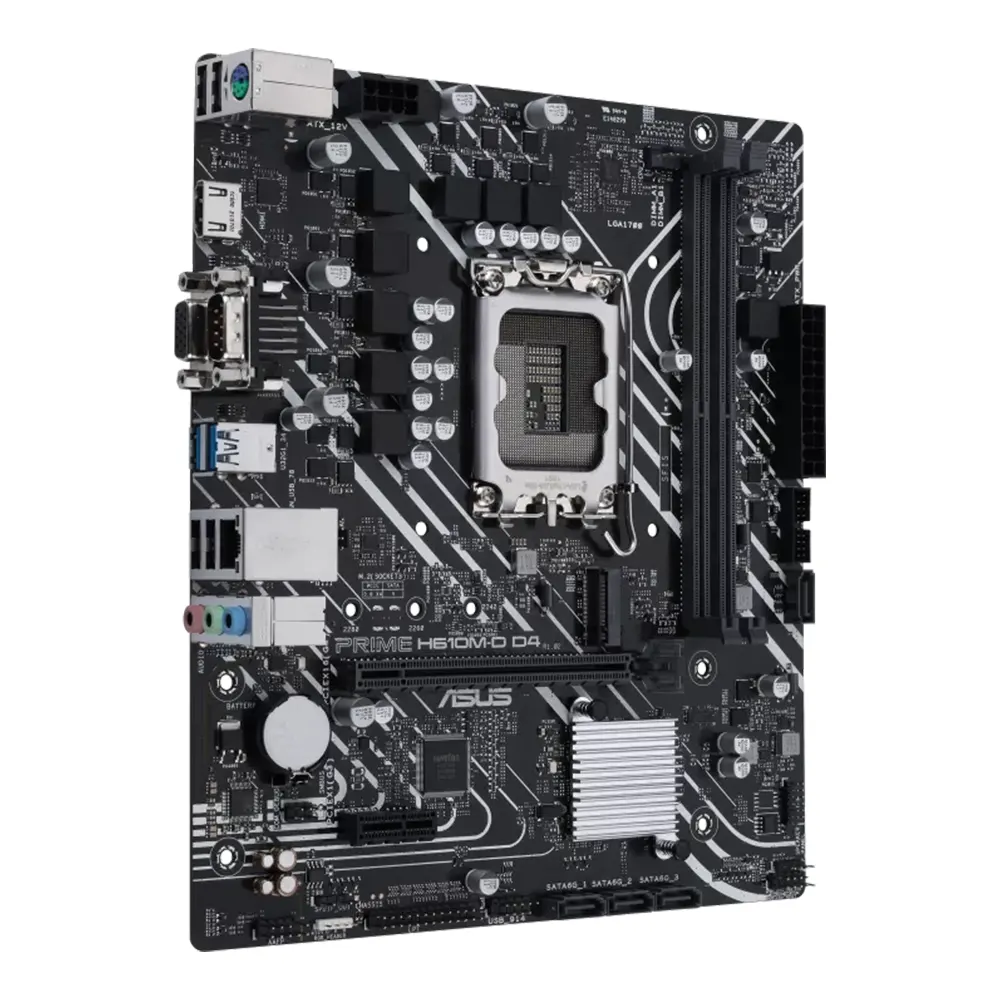

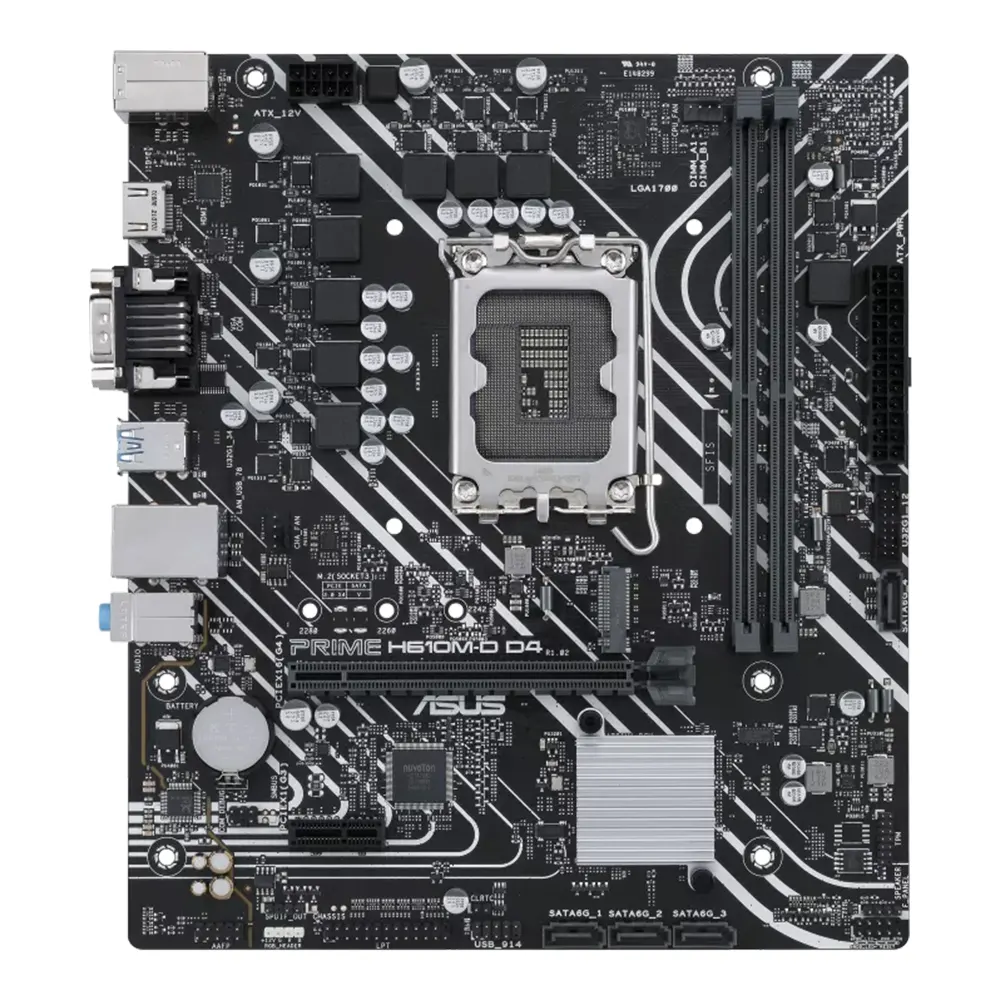

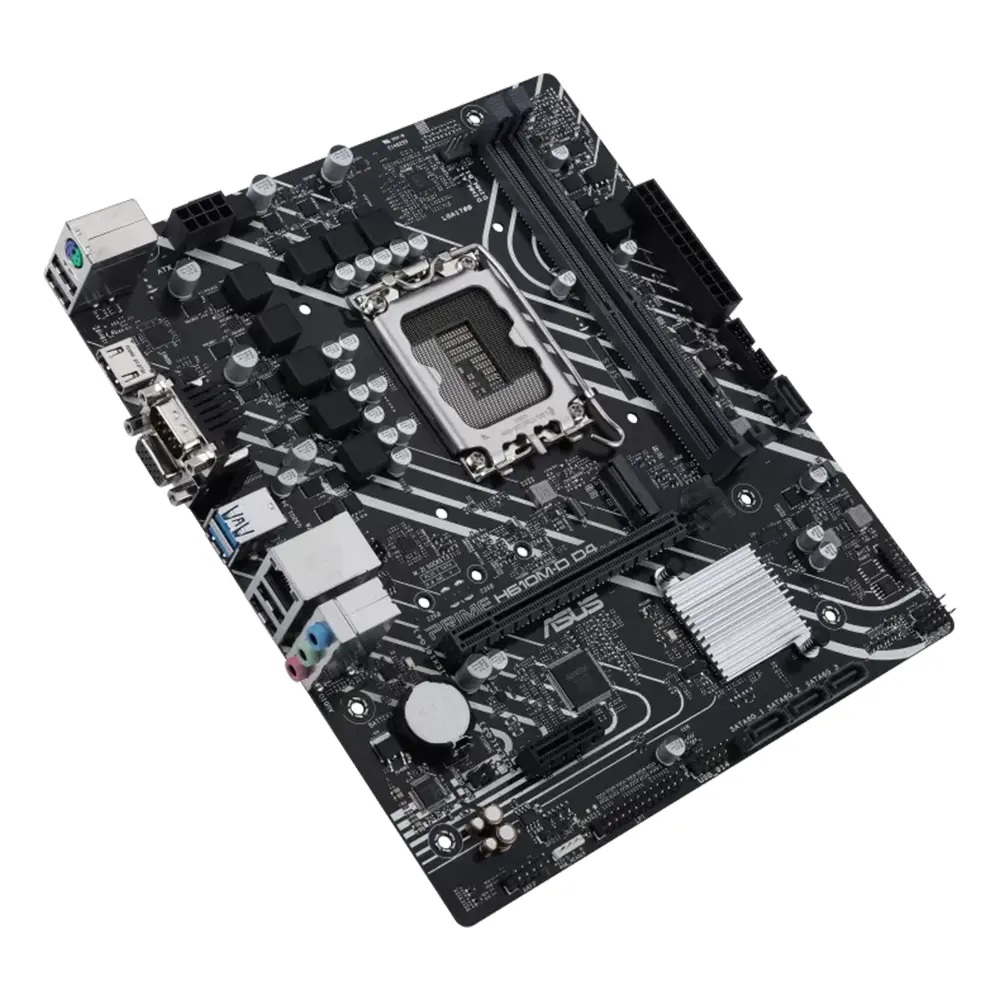

Asus Prime H610m-dd4 Motherboard

Product Overview

ASUS PRIME H610M-D D4 is an Intel® H610 LGA1700 micro-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6Gb/s, COM port, LPT header, and RGB header.

Product Details

• Model: PRIME H610M-D D4
• Chipset: Intel® H610 Chipset
• Form Factor: mATX
• Dimensions: 9.2 inch x 8.0 inch / 23.4 cm x 20.3 cm
• Operating System: Windows® 11 64-bit, Windows® 10 64-bit

CPU Support

• Intel® Socket LGA1700
• Supports Intel® Core™ 14th & 13th Gen Processors
• Supports Intel® Core™ 12th Gen Processors
• Supports Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0
• Supports Intel® Turbo Boost Max Technology 3.0 depending on CPU type

Memory

• 2 x DIMM slots
• Maximum Memory: 64GB
• DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
• Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile XMP

Graphics Output

• 1 x D-Sub port
• 1 x HDMI® port
• HDMI® supports 4K@60Hz as specified in HDMI 2.1

Expansion Slots

• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 3.0 x1 slot
• SafeSlot Core

Storage

• 1 x M.2 slot
• M.2 Key M, type 2242 / 2260 / 2280
• Supports PCIe 3.0 x4 and SATA modes
• M.2 slot supports up to 32Gbps
• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 1Gb Ethernet

USB Ports

• Rear USB: 2 x USB 3.2 Gen 1 Type-A
• Rear USB: 4 x USB 2.0 Type-A
• Front USB: 1 x USB 3.2 Gen 1 header supports 2 additional ports
• Front USB: 1 x USB 2.0 header supports 2 additional ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports Jack-detection, Multi-streaming, and Front Panel Jack-retasking
• Supports up to 24-Bit / 192 kHz playback
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

Back Panel I/O Ports

• 2 x USB 3.2 Gen 1 Type-A
• 4 x USB 2.0 Type-A
• 1 x D-Sub port
• 1 x HDMI® port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x COM port
• 1 x PS/2 Keyboard / Mouse combo port

Internal I/O Connectors

• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x M.2 slot
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0 header
• 1 x RGB header
• 1 x Clear CMOS header
• 1 x Front Panel Audio header
• 1 x LPT header
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header
• 1 x System Panel header

Special Features

• ASUS 5X Protection III
• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core
• Stainless-Steel Back I/O
• Q-DIMM
• Q-Slot
• Aluminum heatsink design
• RGB header

Software & BIOS

• Armoury Crate
• AI Suite 3
• TurboV EVO
• EPU
• DIGI+ VRM
• Fan Xpert
• ASUS CPU-Z
• Norton Anti-virus software Free Trial
• WinRAR
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

Accessories

• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x M.2 Anchor
• 1 x Support DVD
• 1 x User Guide
