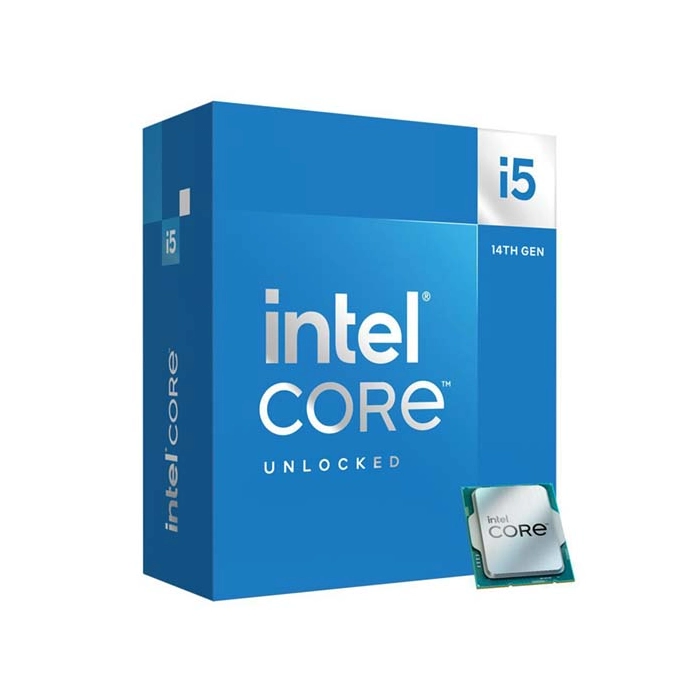

Intel Core i5-14600K 14-Core LGA 1700 14th Gen Processor

Intel Core i5-14600K 14-Core LGA 1700 14th Gen Processor

Power up your productivity, gaming, and content creation with the Intel Core i5-14600K 14-Core LGA 1700 Processor. Built with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i5-14600K powers applications and games with six 3.5 GHz Performance-cores while the eight low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.

With 24MB of cache and a 5.3 GHz Turbo Boost frequency, this processor is made to handle a variety of workloads. You can overclock this processor for even greater performance. The Core i5-14600K also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 ECC memory at 5600 MHz.

The Core i5-14600K features integrated Intel UHD 770 Graphics. Please note that a thermal solution is NOT included.
Hybrid Core Design
Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor’s Efficient-cores.
Intel Thread Director
The Intel Thread Director is built into the CPU’s cores, working with the operating system to ensure each of the 20 threads are assigned to the right core at the right time.
PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Integrated Graphics
Driven by Intel Xe architecture, the integrated Intel UHD 770 Graphics delivers fast, rich 3D performance for high-quality visuals with support for either one 7680 x 4320 resolution 8K monitor or up to four 3840 x 2160 resolution 4K displays with high-dynamic range.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.
Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.

Specifications
Essentials

Product Collection : Intel® Core™ i5 Processors (14th gen)
Code Name : Products formerly RAPTOR LAKE
Vertical Segment : Desktop
Processor Number : i5-14600K
Lithography  : Intel 7
CPU Specifications

Total Cores : 14
# of Performance-cores : 6
# of Efficient-cores : 8
Total Threads : 20
Max Turbo Frequency : 5.3 GHz
Performance-core Max Turbo Frequency : 5.3 GHz
Efficient-core Max Turbo Frequency : 4 GHz
Performance-core Base Frequency : 3.5 GHz
Efficient-core Base Frequency : 2.6 GHz
Cache : 24 MB Intel® Smart Cache
Total L2 Cache :  20 MB
Processor Base Power : 125 W
Maximum Turbo Power : 181 W
Supplemental Information

Embedded Options Available :  No
Memory Specifications

Max Memory Size (dependent on memory type) : 192 GB
Memory Types : Up to DDR5 5600 MT/s
                                           Up to DDR4 3200 MT/s

Max # of Memory Channels : 2
Max Memory Bandwidth : 89.6 GB/s
ECC Memory Supported : Yes
GPU Specifications

Processor Graphics : Intel® UHD Graphics 770
Graphics Base Frequency : 300 MHz
Graphics Max Dynamic Frequency : 1.55 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 32
Max Resolution (HDMI) :  4096 x 2160 @ 60Hz
Max Resolution (DP) :  7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel) :  5120 x 3200 @ 120Hz
DirectX* Support : 12
OpenGL* Support : 4.5
OpenCL* Support : 3.0
Multi-Format Codec Engines : 2
Intel® Quick Sync Video : Yes
Intel® Clear Video HD Technology : Yes
# of Displays Supported : 4
Device ID : 0xA780
Expansion Options

Direct Media Interface (DMI) Revision : 4.0
Max # of DMI Lanes : 8
Scalability : 1S Only
PCI Express Revision : 5.0 and 4.0
PCI Express Configurations : Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes 20
Package Specifications

Sockets Supported : FCLGA1700
Max CPU Configuration : 1
Thermal Solution Specification : PCG 2020A
TJUNCTION : 100°C
Package Size : 45.0 mm x 37.5 mm
Advanced Technologies

Intel® Gaussian & Neural Accelerator : 3.0
Intel® Thread Director : Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes
Intel® Speed Shift Technology : Yes
Intel® Turbo Boost Technology : 2.0
Intel® Hyper-Threading Technology : Yes
Intel® 64 : Yes
Instruction Set : 64-bit
Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States : Yes
Enhanced Intel SpeedStep® Technology : Yes
Thermal Monitoring Technologies : Yes
Intel® Volume Management Device (VMD) : Yes
Security & Reliability

Intel® Standard Manageability (ISM) : Yes
Intel® Control-Flow Enforcement Technology :Yes
Intel® AES New Instructions : Yes
Secure Key : Yes
Intel® OS Guard : Yes
Execute Disable Bit : Yes
Intel® Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel® Virtualization Technology (VT-x) : Yes
Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
Intel® VT-x with Extended Page Tables (EPT) : Yes
