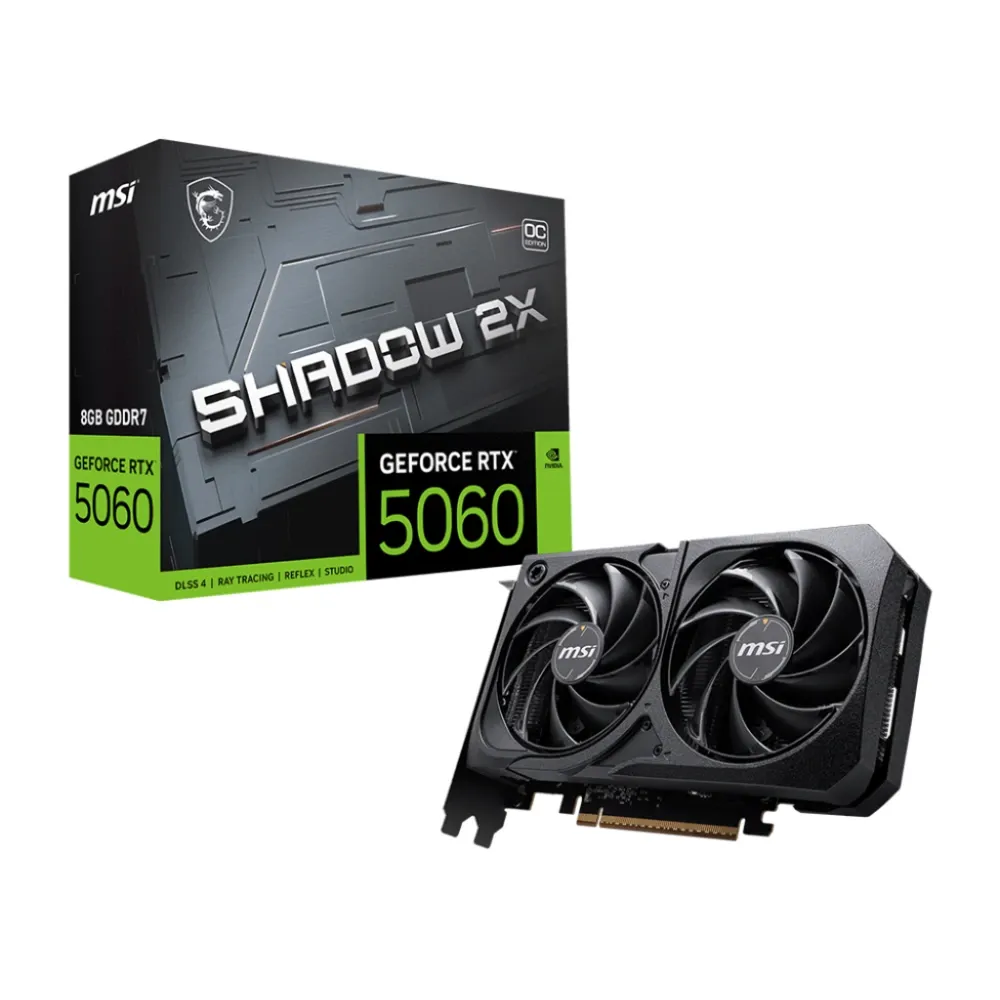

GeForce RTX™ 5060 8G SHADOW 2X OC – Black

GPU & Performance

• GPU: NVIDIA GeForce RTX 5060 – supports DLSS 4.0 and ray tracing
• Memory: 8GB GDDR7 – high-speed memory for 1080p and 1440p gaming
• Memory Interface: 128-bit – efficient data transfer
• Memory Speed: 20 Gbps – fast data transfer
• Bandwidth: 320 GB/s – high bandwidth for data-intensive tasks
• Boost Clock: 2670 MHz (OC) – factory overclocked for maximum performance
• CUDA Cores: 5,120 – massive compute power for gaming and rendering
• TDP (Thermal Design Power): ~150W – high power draw for top-tier performance

Cooling System

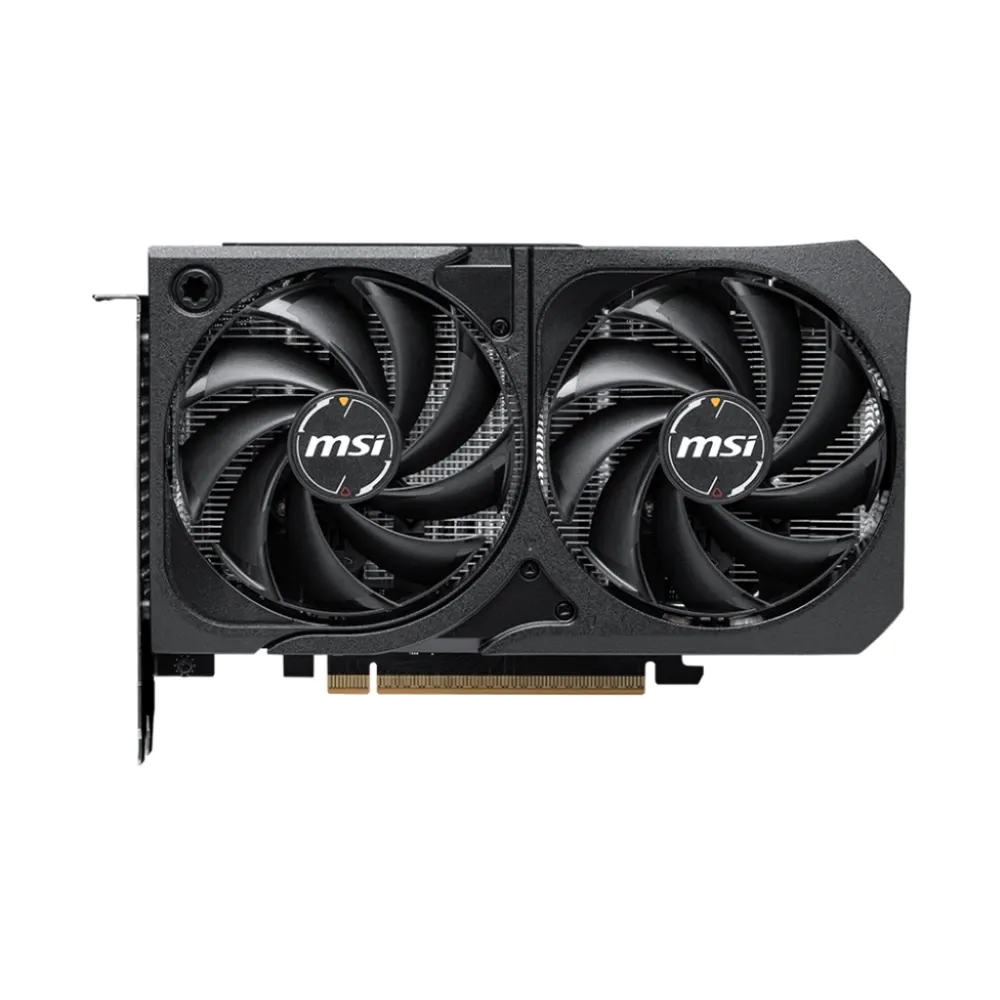

• Cooling Solution: Dual-fan design with axial-tech fans and heat pipe array
• • Smart fan curve via MSI Dragon Center software
  • Semi-passive mode – fans stop at low temperatures for silent idle operationFan Control:
• Heatsink: Large aluminum heatsink with heat pipe array for efficient heat dissipation

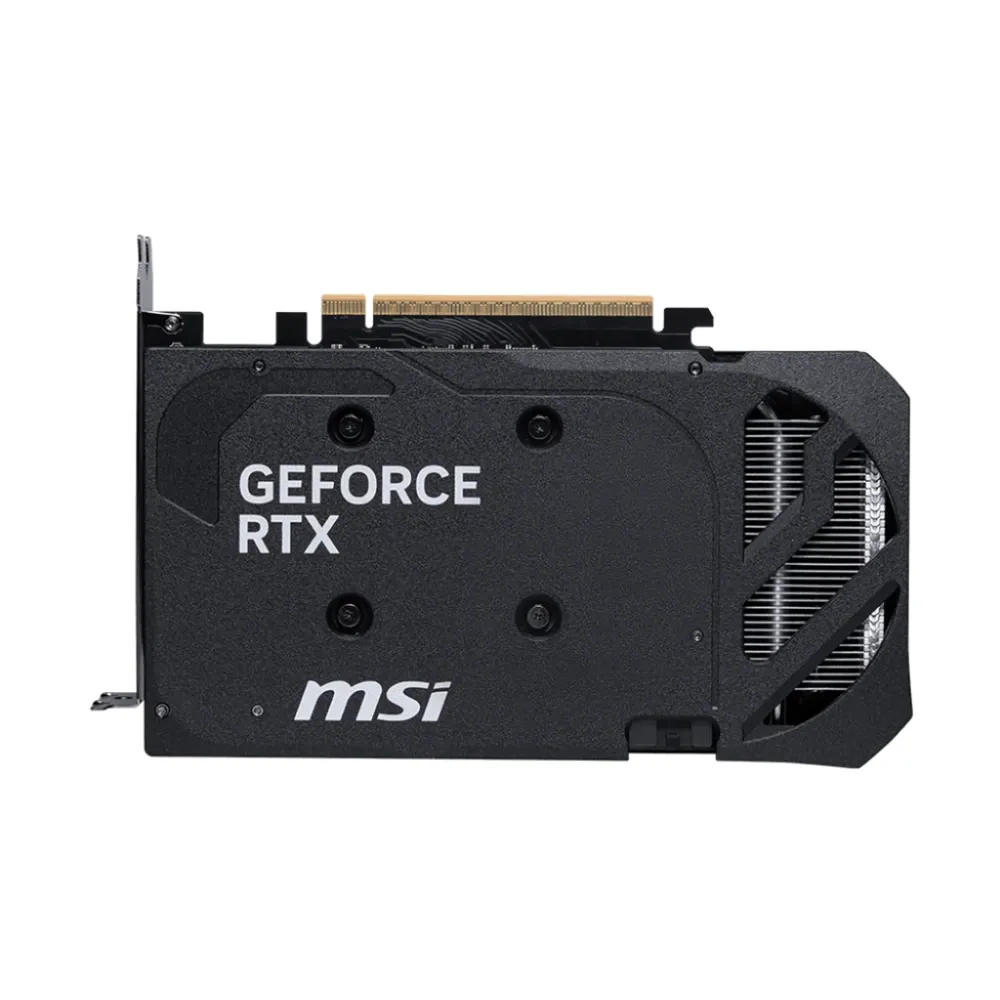

• Backplate: Reinforced metal backplate for structural rigidity and passive cooling

Display Outputs & Resolution Support

• Video Outputs:
  • 2 x HDMI 2.1b – supports 8K@60Hz HDR, 4K@120Hz HDR, and Variable Refresh Rate
  • 3 x DisplayPort 2.1b – supports 8K@60Hz (DSC mode) and HDR
• Max Simultaneous Displays: Supports up to 4 monitors
• Max Resolution:
  • 7680 x 4320 (8K UHD) via HDMI or DisplayPort
  • Supports 8K@60Hz (DSC mode) with verified cables
• HDR Support: Yes – for enhanced color depth and contrast
• G-Sync Compatibility: Yes – eliminates screen tearing
• Multi-Monitor Setup: Ideal for immersive gaming, productivity, and content creation
• Thunderbolt™ 5 Compatibility:
  • If used via Thunderbolt™ 5, bandwidth is limited by **DisplayPort™ 2.1 (up to 77.4 Gbit/s). Chain monitors using verified Thunderbolt™ cables for best results

Connectivity & Power

• PCIe Interface: PCIe 5.0 x16 – backward compatible with PCIe 4.0 and 3.0
• Power Connectors:
  • 1 x 8-pin PCIe power connector – standard for mid-range GPUs
  • Supports up to 150W – ensures stable power delivery
• Recommended PSU: 550W – ensure sufficient headroom for AIO cooling and pump units if used
• Cable Management:
  • Modular power cable included for clean build

Physical Dimensions & Installation

• Length: 230 mm – requires mid-tower case with ample clearance
• Width: 120 mm – standard for high-end GPUs
• Height: 40 mm – compact for most mid-sized cases
• Weight:
  • Card: ~500 g
  • Package: ~800 g
• Mounting: Standard dual-slot bracket with secure screw mounting
• Slot Size: 2 slots – fits most ATX cases
