Cooler Master Masterair Ma624 Stealth Cpu Air Cooler – 33662

Product Description

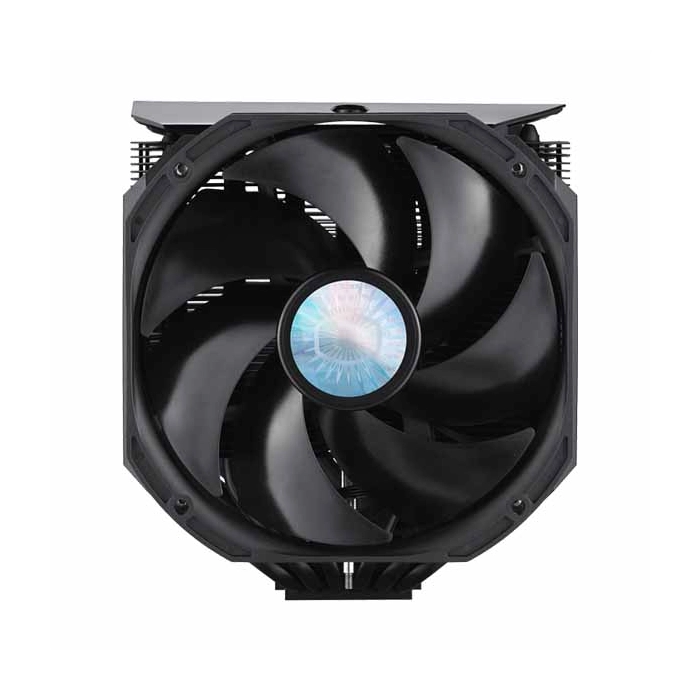

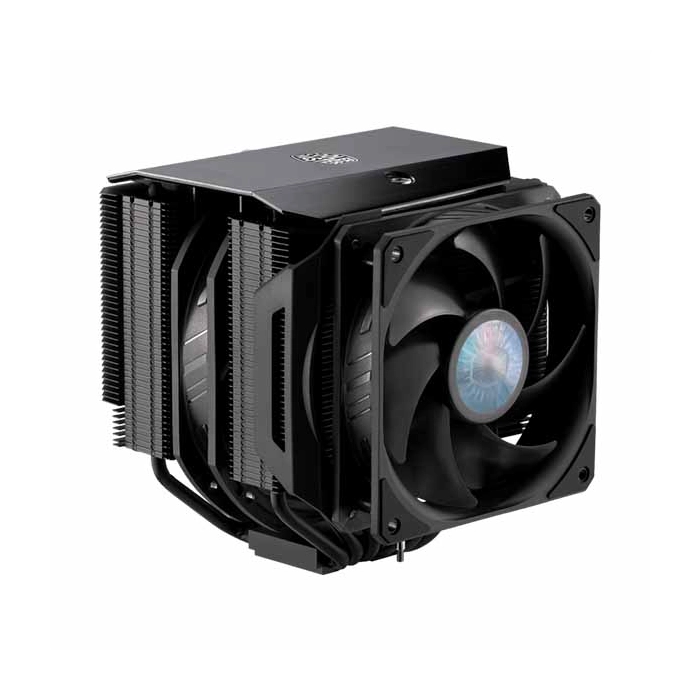

Cooler Master MasterAir MA624 Stealth CPU Air Cooler

MasterAir MA624 Stealth

Dual Tower Dual Fan Twice The Performanc
Premium Aesthetics
Stealth black aluminum top cover matches all-black hardware throughout to offer a premium finish

Relentless Cooling Power

6 heat pipes and full coverage of nickel-plated copper base provides seamless contact with CPU for excellent heat dissipation.

Twice The Surface Area

Dual tower heatsinks provide twice the surface area for better cooling
Best combination of fin thickness and distance between layers ensures maximum airflow through the heatsink.

Quiet And Powerful

Twin SickleFlow 140 fans provide optimal airflow and pressure using Push-Pull setup for excellent performance at inaudible noise levels

Includes Dual Sickleflow 140 & One Sickleflow 120

Optional 3rd SickleFlow 120 fan included for necessary RAM clearance

Compatibility & Clearance

Optimized design for graphic cards’ compatibility on ATX and M-ATX platforms.

Fan Configuration:

SickleFlow 120 x 1 & SickleFlow 140 x 1

Allows 40mm RAM height for clearance and compatibility.

SickleFlow 140 x1

Concave heatsink design provides up to 70mm RAM compatibility.

Easy Mounting System

Exclusive All-In-One mounting design for easy installation

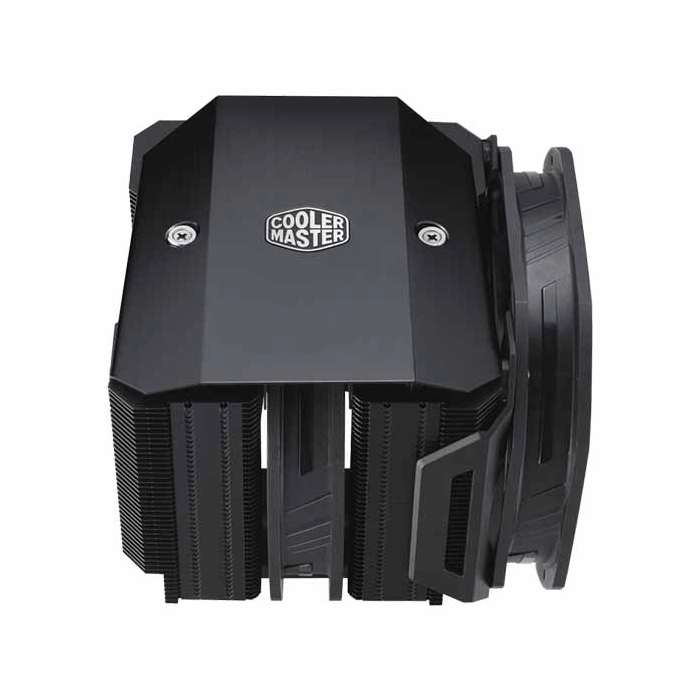

PREMIUM ALUMINUM BLACK TOP COVER

Black aluminum top cover offers a premium finish

DUAL TOWER HEAT SINK

Dual tower heatsinks provide twice the surface area for better cooling

6 HEAT PIPES WITH NICKEL PLATED BASE

6 heat pipes and nickel- plated base provides optimal coverage for exceptional cooling

DUAL SICKLEFLOW 140 FAN

Twin fans utilize Push-Pull setup for optimal airflow and pressure

RAM CLEARANCE OPTION

Optional 3rd SickleFlow 120mm fan included for necessary RAM compatibility and clearance

EASY MOUNTING SYSTEM

Exclusive All-In-One mounting design for easy installation

Specifications
Product Number : MAM-D6PS-314PK-R1
Exterior Color  : Black
CPU Socket  : LGA1700*, LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, LGA1366, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
Dimensions (L x W x H)  : 144.9 x 153.2 x 160 mm / 5.7 x 6 x 6.3 inch
Heat Sink Material  : 6 Heat Pipes, Aluminum Fins
Fan Dimensions (L x W x H)  : 140 mm Fan – 140 x 140 x 25 mm / 5.5 x 5.5 x 1 inch, 120 mm Fan – 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
Fan Quantity  : 140 mm Fan – 2 PCS, 120 mm Fan – 1 PC
Fan Speed  : 140 mm Fan – 650-1400 RPM (PWM) ± 5%, 120 mm Fan – 650-1800 RPM (PWM) ± 5%
Fan Airflow  : 140 mm Fan – 67 CFM (Max), 120 mm Fan – 62 CFM (Max)
Fan Noise Level  : 140 mm Fan – 10 ~ 27 dBA, 120 mm Fan – 8 ~ 27 dBA
Fan Air Pressure  : 140 mm Fan – 2.25 mmH2O (Max), 120 mm Fan – 2.5 mmH2O (Max)
Fan MTTF  : 160,000 Hours
Fan Power Connector  : 4-Pin (PWM)
Fan Rated Voltage  : 12 VDC
Fan Rated Current  : 0.15A
Fan Safety Current  : 140 mm Fan – 0.4A, 120 mm Fan – 0.37A
Fan Power Consumption  : 1.8W
Series  : MasterAir
Cooler Type  : Air Cooler
Heatpipes  : 6
Note  : *LGA1700 mounting kit included in products with New Packaging Design. You may obtain required mounting kits for products with older package design through CM store or regional resellers and distributors.
