Cooler Master COSMOS C700P Black Edition Computer Case

Cooler Master COSMOS C700P Black Edition Computer Case
Advancements upon the original COSMOS C700P include the PSU Shroud, flat radiator brackets, fine mesh panels, cable cover system, and an extra rear panel—all housed in a matte black C700P.

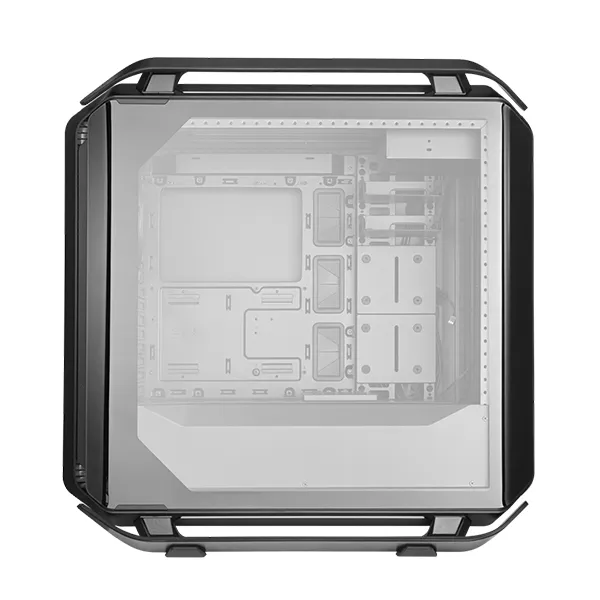

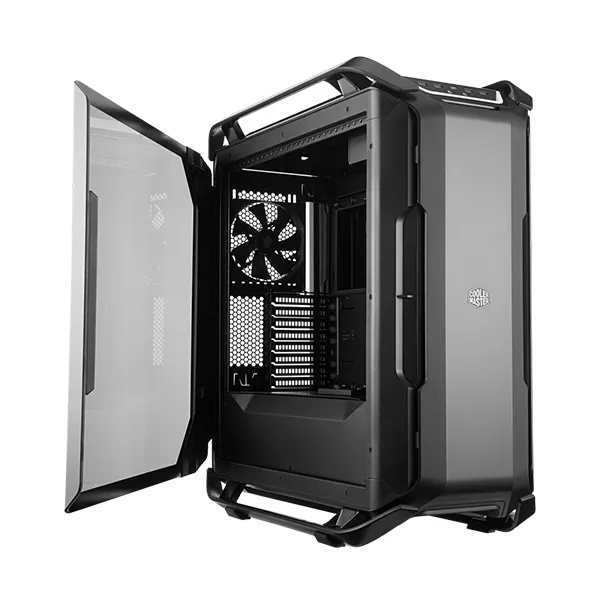

CURVED TEMPERED GLASS SIDE PANEL

A lightly-tinted tempered glass side panel with two curved edges offer a wide view of the system build.

UPGRADED COVER SYSTEM

The PSU Shroud advances in modularity with two independent parts while the cable cover system features 3 separate pieces, each with the capability of mounting storage or a pump for liquid cooling.

FLAT RADIATOR BRACKETS

Flat radiator brackets offer an easier maintenance, mounting, and removal process for liquid cooling with more clearance for push-pull configurations.

ALTERNATE REAR PANEL

To support exotic layouts with motherboards or graphics card oriented vertically, an alternate panel with rubber grommets is included to allow a pass-through for external cables.

HIGHLY VERSATILE LAYOUT

The unique frame design supports a conventional, chimney, inverse layout, or a fully customized layout. The motherboard tray is also removable for installation outside of the chassis.

EXTENSIVE CABLE COVER SYSTEM

The 3 included covers can be placed on either the M. Port or on the mid-plate, with the ability to mount SSD storage or a reservoir.

RICH CONNECTIVITY

The advanced I/O panel features a USB 3.1 (Gen 2) Type-C port, four additional USB 3.0 ports, a fan speed control button and an RGB control button.

COOLING SUPPORT

RADIATORS

Top:120 / 140 / 240 / 280 / 360 / 420mm*

*Remove ODD, maximum thickness clearance 70mm

Front:120 / 140 / 240 / 280 / 360 / 420mm*

*remove ODD

Rear:120 / 140mm

Bottom:120 / 140 / 240mm

COOLING SUPPORT

FANS

Top:120 / 140mm x 3

Front:120 / 140mm x 3

Rear:120 / 140mm x 1

Bottom:120 / 140mm x 2*

*Requires bracket

MOTHERBOARD SUPPORT

Mini-ITX

Micro-ATX

ATX

E-ATX*

*E-ATX up to 12″ x 10.7″ may impact cable management options.

Specifications


MODEL NUMBER : MCC-C700P-KG5N-S00
SERIES : COSMOS Series
SIZE : Full Tower
AVAILABLE COLOR(S) : Black
MATERIALS : Steel, Curved Tempered Glass
DIMENSIONS (LXWXH) : 639 x 306 x 651mm
WEIGHT : 22.2kg
MOTHERBOARD SUPPORT : E-ATX, ATX, Micro ATX, Mini ITX
EXPANSION SLOTS : 8
5.25″ DRIVE BAYS : 1
2.5″ / 3.5″ DRIVE BAYS (COMBO) : 4
2.5″ DRIVE BAYS : 4
I/O PANEL : 4x USB 3.0, 1x USB 3.1 Gen 2 Type-C, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, Fan Speed, RGB Control Buttons
PRE-INSTALLED FANS – FRONT : 2x 140mm, 1200RPM
PRE-INSTALLED FANS – REAR : 1x 140mm, 1200RPM
FAN SUPPORT – FRONT : 3x 120/140mm
FAN SUPPORT – TOP : 3x 120/140mm
FAN SUPPORT – REAR : 1x 120/140mm
FAN SUPPORT – BOTTOM : 2x 120/140mm*
RADIATOR SUPPORT – FRONT : 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (requires removal of ODD cage)
RADIATOR SUPPORT – TOP : 120mm, 140mm, 240mm, 280mm, 360mm, 420mm (remove ODD, maximum thickness clearance 70mm)
RADIATOR SUPPORT – REAR : 120mm, 140mm
RADIATOR SUPPORT – BOTTOM : 120mm, 140mm, 240mm
CLEARANCE – CPU COOLER : 198mm
CLEARANCE – GFX : 320mm (w/ 3.5″ HDD cage), 490mm (w/o 3.5″ HDD cage)
POWER SUPPLY SUPPORT : Bottom mount, ATX PS2
DUST FILTERS : Top, Front, Bottom
LIGHTING SUPPORT : 1x RGB Connection, RGB Control Board
EAN CODE : 4719512085028
UPC CODE : 884102057472
