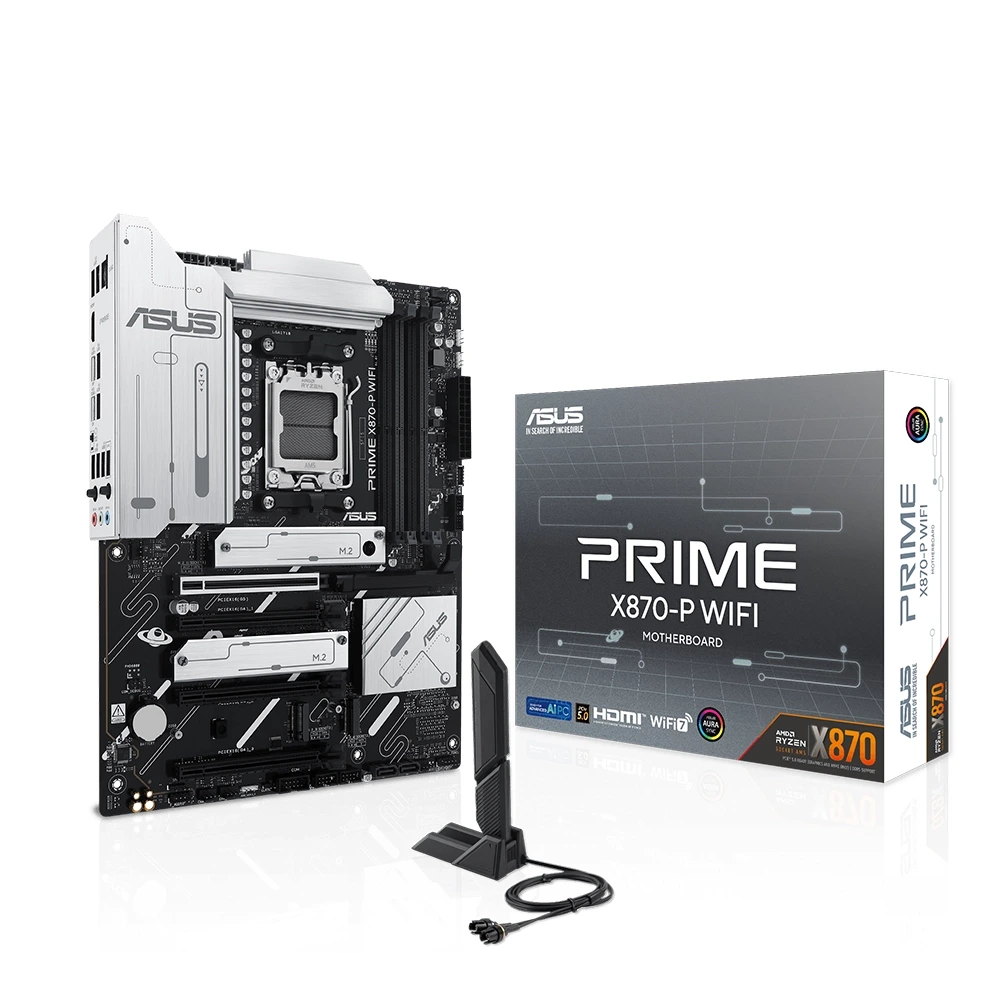

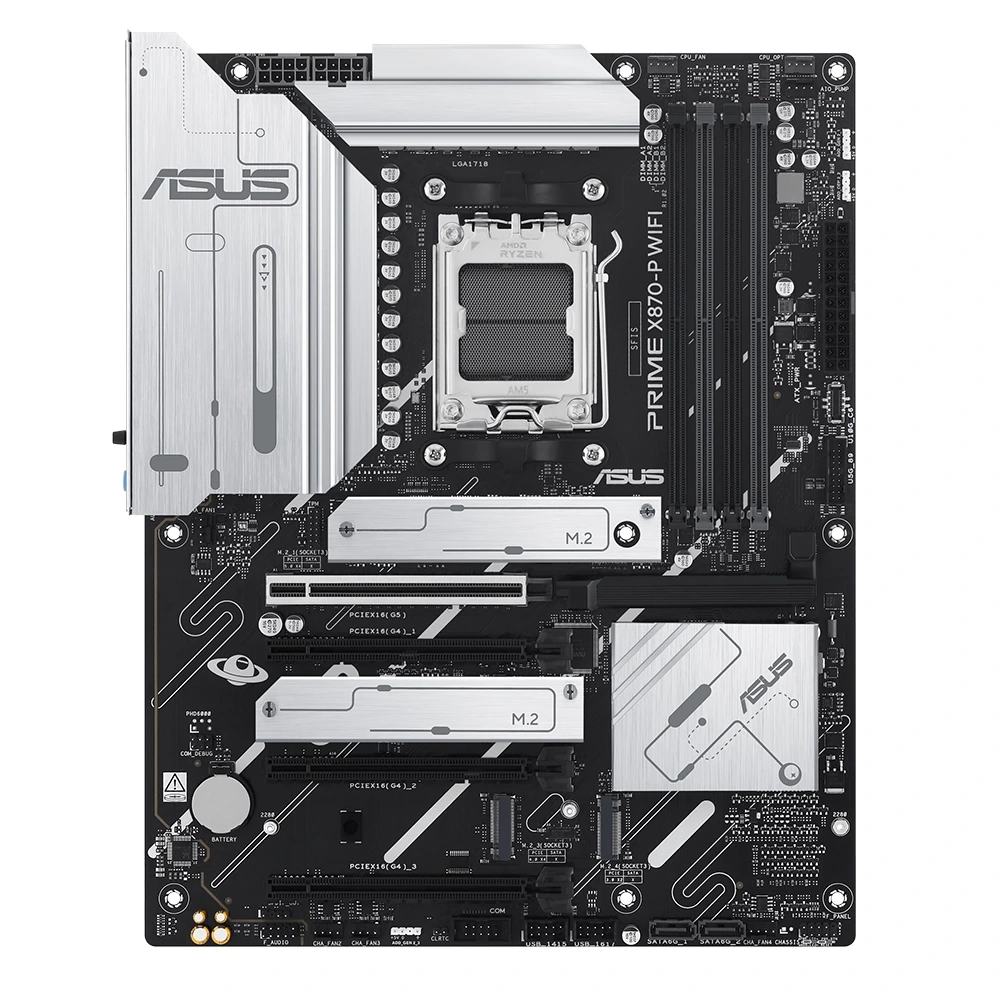

ASUS – PRIME X870-P WIFI (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard

ASUS PRIME X870-P AM5 DDR5 ATX Motherboard – Black

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Specifications

• Model : PRIME X870-P

CPU

• AMD Socket AM5 for AMD Ryzen^™ 9000 & 8000 & 7000 Series Desktop Processors*

Chipset

• AMD X870 Chipset

Memory

• 4 x DIMM slots, max. 192GB, DDR5

• Supports up to 8000+MT/s(OC) with Ryzen^™ 9000 & 8000 & 7000 Series Processors

• ECC and Non-ECC, Un-buffered DIMM*

• Dual channel memory architecture

• Supports AMD Extended Profiles for Overclocking (EXPO^™)

• ASUS Enhanced Memory Profile (AEMP)

• * Adjustments will be made based on the specifications of mass-produced memory products available on the market.

• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information

• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x HDMI^™ port**

• 2 x USB4^® (40Gbps) ports support USB Type-C^® display outputs***

• * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

• ** Supports 4K@60Hz as specified in HDMI 2.1.

• *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.

• **** VGA resolution support depends on processors’ or graphic cards’ resolution.

Expansion Slots

• AMD Ryzen^™ 9000 & 7000 Series Desktop Processors*

• 1 x PCIe 5.0 x16 slot (supports x16 mode)

• AMD Ryzen^™ 8000 Series Desktop Processors

• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

• AMD X870 Chipset

• 2 x PCIe 4.0 x16 slots (support x1 mode)***

• * Please check the PCIe bifurcation table

• ** Specifications vary by CPU types.

• *** PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs.

Storage

• Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*

• AMD Ryzen^™ 9000 & 7000 Series Desktop Processors

• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

• AMD Ryzen^™ 8000 Series Desktop Processors

• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• AMD X870 Chipset

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**

• M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)***

• 2 x SATA 6Gb/s ports***

• * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen^™ 9000 series CPU.

• ** PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs.

• *** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.

Ethernet

• 1 x Realtek 2.5Gb Ethernet

• ASUS LANGuard

USB

• Rear USB (Total 10 ports)

• 2 x USB4^® (40Gbps) ports (2 x USB Type-C^®)

• 1 x USB 10Gbps port (1 x Type-A)

• 3 x USB 5Gbps ports (3 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• Front USB (Total 7 ports)

• 1 x USB 10Gbps connector (supports USB Type-C^®)

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• * USB Type-C^® power delivery output: max. 5V/3A

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*

• – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• – Supports up to 24-Bit/192 kHz playback

• Audio Features

• – Audio Shielding

• – Premium audio capacitors

• – Dedicated audio PCB layers

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

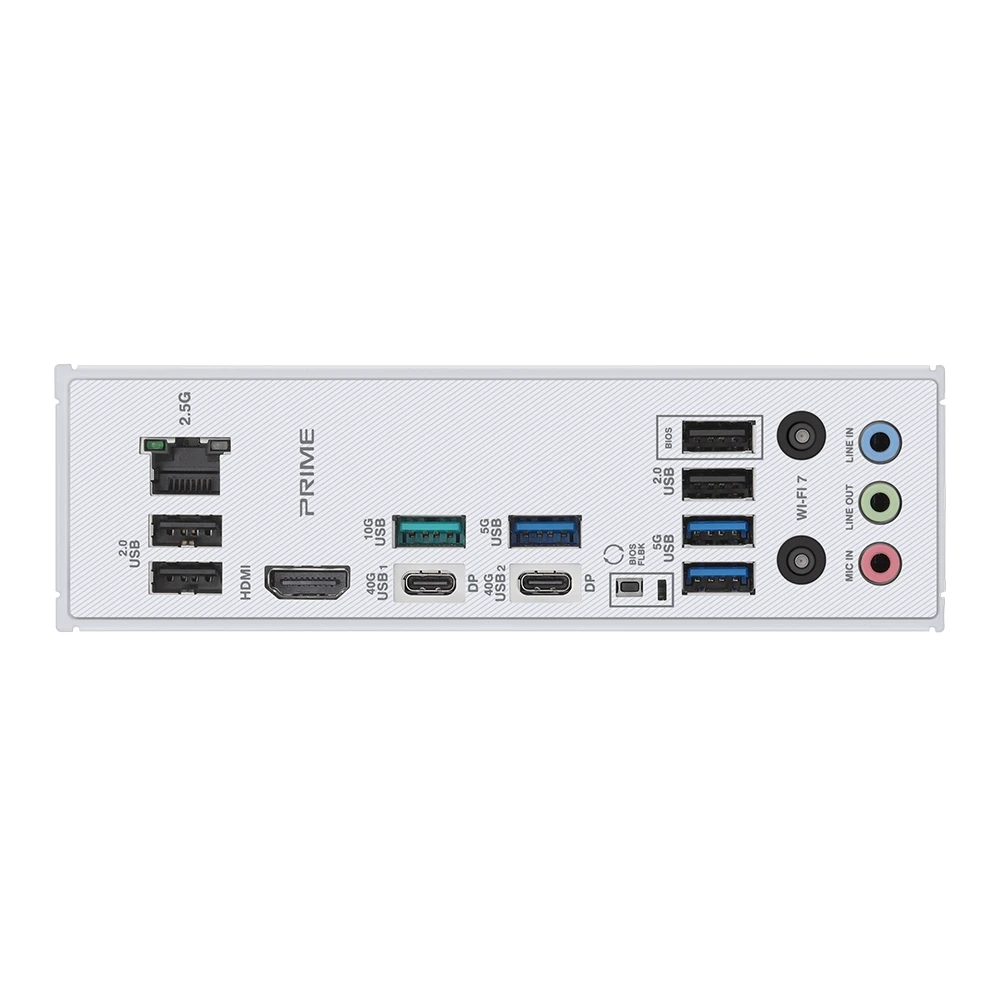

Back Panel I/O Ports

• 2 x USB4^® (40Gbps) ports (2 x USB Type-C^®)

• 1 x USB 10Gbps port (1 x Type-A)

• 3 x USB 5Gbps ports (3 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x HDMI^™ port

• 1 x Realtek 2.5Gb Ethernet port

• 3 x Audio jacks

• 1 x BIOS FlashBack^™ button

Internal I/O Connectors

• Fan and Cooling Related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 1 x 4-pin AIO Pump header

• 4 x 4-pin Chassis Fan headers

• Power Related

• 1 x 24-pin Main Power connector

• 2 x 8-pin +12V CPU Power connectors

• Storage Related

• 4 x M.2 slots (Key M)

• 2 x SATA 6Gb/s ports

• USB
  1 x USB 10Gbps connector (supports USB Type-C^®)

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Miscellaneous

• 3 x Addressable Gen 2 headers

• 1 x Clear CMOS header

• 1 x COM Port header

• 1 x Front Panel Audio header (F_AUDIO)

• 1 x S/PDIF Out header

• 1 x SPI TPM header (14-1 pin)

• 1 x 10-1 pin System Panel header

Special Features

• ASUS 5X PROTECTION III

• – DIGI+ VRM (- Digital power design with DrMOS)

• – LANGuard

• – Overvoltage protection

• – SafeSlot

• – Stainless-steel back I/O

• ASUS Q-Design

• – M.2 Q-Latch

• – PCIe Slot Q-Release

• – Q-Dashboard

• – Q-DIMM

• – Q-LED Core

• – Q-Slot

• ASUS Thermal Solution

• – Flexible M.2 heatsink

• – VRM heatsink design

• ASUS EZ DIY

• – BIOS FlashBack^™ button

• – BIOS FlashBack^™ LED

• – ProCool

• – Pre-mounted I/O shield

• – SafeSlot

• Aura Sync

• – Addressable Gen 2 headers

Software Features

• ASUS Exclusive Software

• Armoury Crate

• – Aura Creator

• – Aura Sync

• – Fan Xpert 4 (with AI Cooling II)

• – Power Saving

• ASUS DriverHub

• TurboV Core

• ASUS CPU-Z

• Norton 360 Deluxe (60 Days Free Trial)

• WinRAR (40 Days Free Trial)

• UEFI BIOS

• ASUS EZ DIY

• – ASUS CrashFree BIOS 3

• – ASUS EZ Flash 3

• – ASUS UEFI BIOS EZ Mode

• – ASUS MyHotkey

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x M.2 rubber package

• 2 x Screw packages for M.2 SSD

• Documentation

• 1 x Quick start guide

Operating System

• Windows 11, Windows 10 64-bit

Form Factor

• ATX Form Factor

• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
