Asus Prime H610m-d, H610, Lga1700, 2xddr5, Glan, Matx

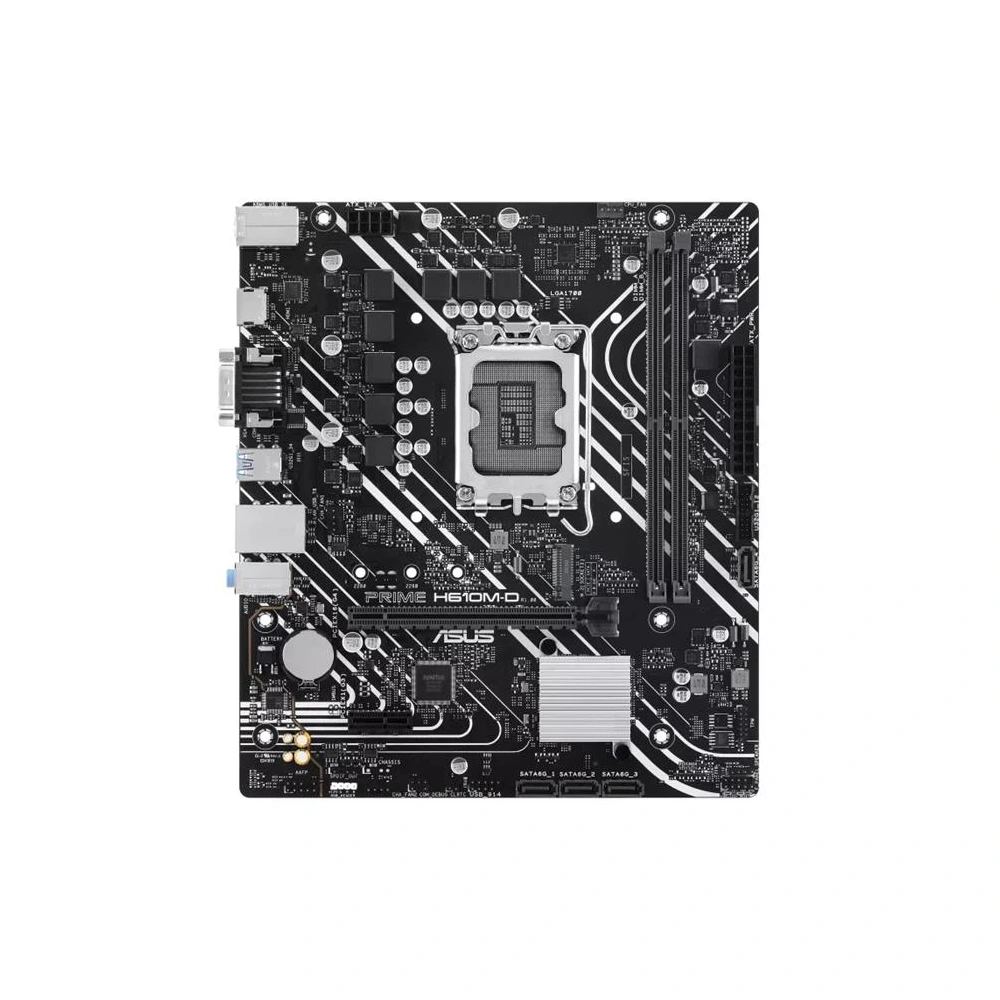

ASUS PRIME H610M-D

Chipset: Intel® H610

Size format: micro-ATX (234x203mm)
 Support for processors: 13 Gen Intel® Core™ & 12 Gen Intel® Core™, Pentium® Gold and Celeron®
 Processor socket: LGA1700

Memory:
* 2x DIMM, max. 96GB, DDR5 5600/5400/5200/5000/4800 without ECC, without memory buffer
* dual-channel memory architecture
* supports Intel® Extreme Memory Profile (XMP)
* OptiMem II

Graphics ports:
(Graphics specifications may vary for different CPU types.)
* 1 x VGA
* 1x HDMI 2.1

Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC – supports playback up to 24-bit/192kHz (A chassis with HD audio module on the front panel is required to support 7.1 Surround Sound audio output.)

Ethernet: 1x Realtek 1Gb
 WLAN + Bluetooth: no

Expansion Slots:
* 1x PCIe 4.0 x16
* 1x PCIe 3.0 x1

Storage space:
in total it supports 1 M.2 slot and 4 SATA 6Gb/s ports
* 1x M.2 (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
* 4x SATA 6Gb/s

USB:
Rear USB (total 6 ports)
* 2x USB 3.2 Gen 1 (2x type-A)
* 4x USB 2.0 (4x type-A)
Front USB (total 4 ports)
* 1x USB 3.2 Gen 1 header – support for 2 additional USB 3.2 Gen 1 ports
* 1x USB 2.0 header – support for 2 additional USB 2.0 ports

Rear panel ports:
* 2x USB 3.2 Gen 1 (2x type-A)
* 4x USB 2.0 (4x type-A)
* 1 x VGA
* 1x HDMI®
* 1x RJ-45 Realtek 1Gb
* 3x audio jack
* 1x COM port
* 1x combined PS/2 keyboard/mouse port

Internal ports:
Fan and cooling related
* 1x 4-pin CPU Fan header
* 2x 4-pin Chassis Fan header
Power supply
* 1x 24-pin main power connector
* 1x 8-pin +12V power connector
Repository related
* 1x M.2 slot (Key M)
* 4x SATA 6Gb/s port
USB
* 1x USB 3.2 Gen 1 header – support for 2 additional USB 3.2 Gen 1 ports
* 1x USB 2.0 header – support for 2 additional USB 2.0 ports
Other
* 1x RGB header
* 1x Clear CMOS header
* 1x Front Panel Audio header (AAFP)
* 1x S/PDIF Out header
* 1x Speaker header
* 1x SPI TPM header (14-1pin)
* 1x 10-1 pin System Panel header

BIOS: 128Mb Flash ROM, UEFI AMI BIOS

Accessories:
* 2x SATA 6Gb/s cable
* 1x I/O plug
* 1x M.2 anchor
* 1x user manual

Manufacturer page link: https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-d/
